ID: 100012927
Slideaway console 17" LCD
EAN
4710469343186
Unfortunately, the product is out of stock.

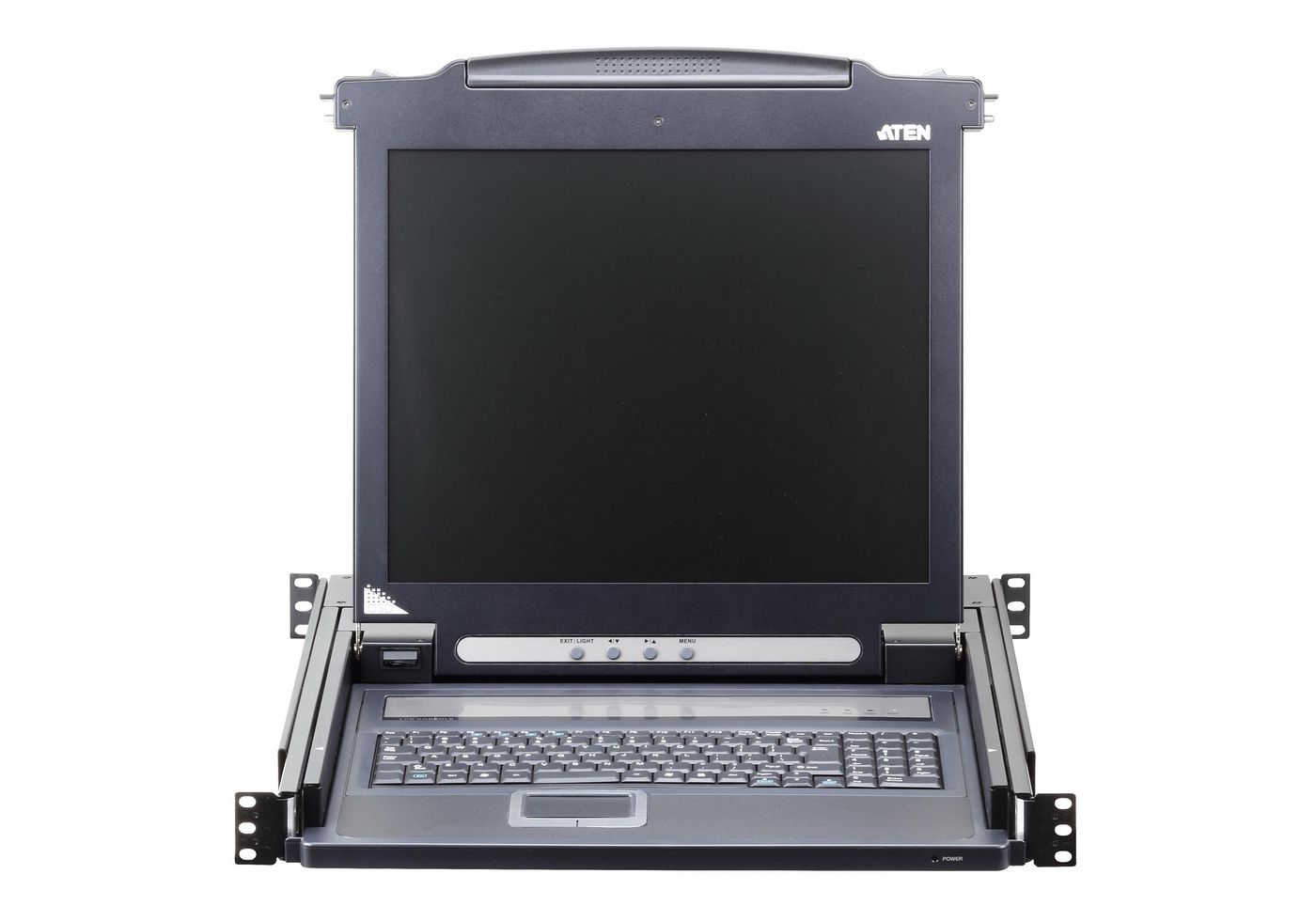

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.
Power
-
AC adapter frequency50/60
-
AC adapter input voltage100 - 240
-
AC input frequency50 - 60
-
AC input voltage100-240
-
AC (power) inYes
-
Input current1
-
Input voltage100-240
-
Power consumption (typical)16
Vendor information
-
Brand NameAten
-
Warranty1
Display
-
Built-in displayYes
-
Contrast ratio (typical)1000:1
-
DisplayLCD
-
Display brightness250
-
Display diagonal17
-
Display resolution1280 x 1024
-
Display typeTFT
-
Pixel pitch0.264 x 0.264
-
Response time5
-
Supported resolutions1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
-
Viewing angle, horizontal170
-
Viewing angle, vertical160
Technical details
-
Built-in KVM switchYes
-
Compliance certificatesRoHS
-
Console portVGA
-
KVM switch ports quantity1
-
LED indicatorsYes
-
MaterialMetal/Plastic
-
Maximum resolution1280 x 1024
-
Number of computers controlled1
-
On/off switchYes
-
Operating relative humidity (H-H)0 - 80
-
Product colourBlack
-
Push buttonYes
-
Rack capacity1U
-
Rack mountingYes
Keyboard
-
Built-in touchpadYes
-
Keyboard languageNordic
-
Keyboard layoutQWERTY
Packaging content
-
Cables includedAC/KVM
-
ManualYes
-
Quick installation guideYes
-
Rack mount kitYes
Performance
-
DDC2B supportYes
-
DDC/DDC2 supportedYes
-
Hot-swapYes
Design
-
Housing materialMetal/Plastic
Ports & interfaces
-
Keyboard port typePS/2
-
Mouse port typePS/2
-
VGA (D-Sub) ports quantity1
-
Video port typeVGA
System requirements
-
Linux operating systems supportedYes
-
Other operating systems supportedFreeBSD
-
Windows operating systems supportedYes
Operational conditions
-
Operating temperature (T-T)0 - 50
-
Storage temperature (T-T)-20 - 60
