ID: 101193470
Aruba Ap-514 (Us) Taa 5375
OEM Number
This product is discontinued
Unfortunately, the product is out of stock.

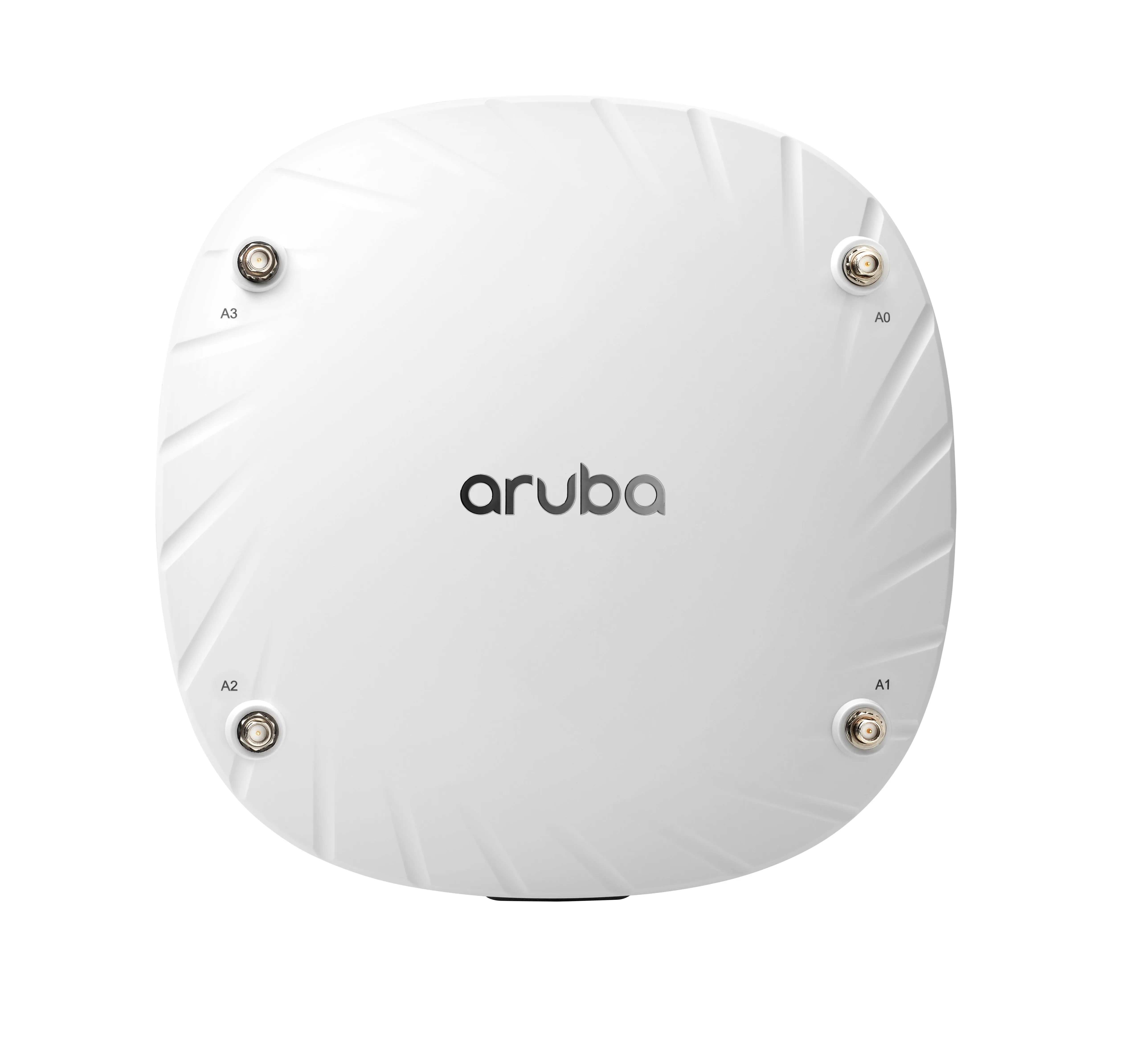

Aruba Ap-514 (Us) Taa 5375 Mbit/S White Power Over Ethernet (Poe)
General
-
Access Point TypeDual radio 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 2x2 MIMO
-
Antenna typeExternal antennas
-
Best forCampus Wi Fi, TAA compliant sites, Antenna
-
Bluetooth Radio PerformanceUp to 8 dBm transmit power (class 1) and -95 dBm receive sensitivity
-
Bluetooth versionBluetooth 5
-
Hardware Platform IdentifierAP-514-USF1 (HPE SKU Q9H68A)
-
Integrated IoT RadiosBluetooth 5 and Zigbee support
-
Internal RF Path Loss 2.4 GHzWorst-case internal loss between radio interface and external antenna connectors: 1.3 dB at 2.4 GHz
-
Internal RF Path Loss 5 GHzWorst-case internal loss between radio interface and external antenna connectors: 1.7 dB at 5 GHz
-
Maximum BSSIDs Per RadioUp to 16 BSSIDs per radio
-
Maximum Client AssociationsUp to 512 associated client devices per access point
-
Maximum Combined Peak Data RateUp to 2.69 Gbps combined peak data rate
-
Maximum MU-MIMO Data Rate 5 GHzUp to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO client devices
-
Maximum Real-World Speed2.69 Gbps maximum real-world throughput (HE80/HE20)
-
Maximum SU-MIMO Data Rate 2.4 GHzUp to 574 Mbps wireless data rate to 2SS HE40 802.11ax client devices
-
Maximum SU-MIMO Data Rate 5 GHzUp to 4.8 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices
-
Mean Time Between Failures560,000 hours at 25°C operating temperature
-
MIMO4x4:4 + 2x2:2
-
MIMO Configuration4x4:4 + 2x2:2
-
ModelAP-514
-
Modulation Types 802.11acBPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
-
Modulation Types 802.11a/g/nBPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
-
Modulation Types 802.11axBPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
-
Modulation Types 802.11bBPSK, QPSK, CCK
-
Product LineAruba
-
Product typeAccess Point
-
Radio Chains 2.4 GHz2 spatial streams (2SS) single-user MIMO
-
Radio Chains 5 GHz4 spatial streams (4SS) single-user or multi-user MIMO
-
Regulatory VariantTAA
-
Security featuresWPA3 and Enhanced Open security
-
SeriesAP-514
-
Sticky Client OptimizationBuilt-in technology that resolves sticky client issues for Wi‑Fi 6 and Wi‑Fi 5 devices
-
TechnologyWi-Fi 6
-
Typical SU-MIMO Data Rate 2.4 GHzUp to 287 Mbps wireless data rate to 2SS HE20 802.11ax client devices
-
Typical SU-MIMO Data Rate 5 GHzUp to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices
-
Wi-Fi Bands2.4 GHz, 5 GHz
-
Wi-Fi Standard802.11ax
-
Zigbee Radio PerformanceUp to 8 dBm transmit power and -97 dBm receive sensitivity
Network
-
Antenna ConnectorsFour female RP-SMA connectors for external dual-band antennas (A0–A3) with concurrent dual-band connections
-
Antenna Connector UsageRadio chains 0–3 for 5 GHz; 2.4 GHz radio uses A0 and A1 with chains 0 and 1 only
-
Ethernet Port Speeds10/100/1000/2500 Mbps Ethernet on primary uplink port
-
Frequency Bands Supported2.400 to 2.4835 GHz, 5.150 to 5.250 GHz, 5.250 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.850 GHz, 5.850 to 5.895 GHz (country-specific restrictions apply)
-
MU-MIMO SupportOFDMA and MU-MIMO for enhanced multi-user efficiency
-
Network RJ-45 Ports2 x RJ-45 network interfaces
-
PoE SupportPower over Ethernet supported on primary Ethernet uplink port
-
Secondary Ethernet Port UsageAdditional 10/100/1000 Mbps Ethernet port for daisy-chaining and wired extension
-
Supported Channel Bandwidths 802.11ac (VHT)VHT20, VHT40, VHT80, VHT160
-
Supported Channel Bandwidths 802.11ax (HE)HE20, HE40, HE80, HE160
-
Supported Channel Bandwidths 802.11n (HT)HT20 and HT40
-
Supported Data Rates 802.11ac6.5 to 3,467 Mbps (MCS0 to MCS9, 1 to 4 spatial streams, VHT20 to VHT160)
-
Supported Data Rates 802.11a/g6, 9, 12, 18, 24, 36, 48, 54 Mbps
-
Supported Data Rates 802.11ax 2.4 GHz3.6 to 574 Mbps (MCS0 to MCS11, 1 to 2 spatial streams, HE20 to HE40)
-
Supported Data Rates 802.11ax 5 GHz3.6 to 4,803 Mbps (MCS0 to MCS11, 1 to 4 spatial streams, HE20 to HE160)
-
Supported Data Rates 802.11b1, 2, 5.5, 11 Mbps
-
Supported Data Rates 802.11n 2.4 GHz6.5 to 300 Mbps (MCS0 to MCS15, HT20 to HT40)
-
Supported Data Rates 802.11n 5 GHz6.5 to 600 Mbps (MCS0 to MCS31, HT20 to HT40)
Physical
-
Form factorIndoor campus access point
Power
-
Maximum Transmit Power 2.4 GHz+21 dBm total (18 dBm per chain)
-
Maximum Transmit Power 5 GHz+24 dBm total (18 dBm per chain)
-
Powering OptionsPowered via PoE on the Ethernet uplink port
Vendor information
-
Warranty1
Storage
-
Wireless InterfaceDual radio
