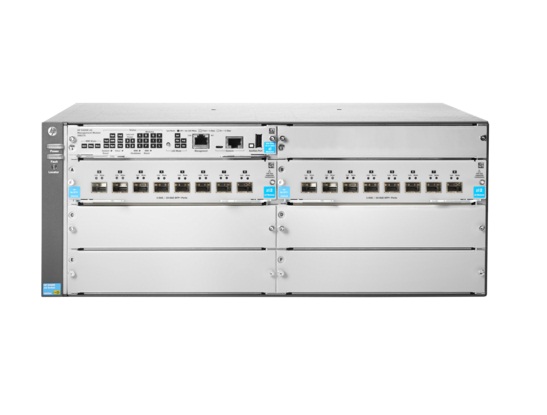

5406R 16SFP+v3 zl2 Swch **New Retail**
General
-
Access Control ListsYes (ACL support)
-
ArchitectureProVision ASIC-based modular architecture
-
Auto-uplink (Auto MDI/MDI-X)Yes
-
Best forData Center Spine, Campus Core, Service Provider
-
Bidirectional Forwarding DetectionYes (BFD for OSPFv2 and VRRP)
-
Crossbar Switching Fabric2 Tbps
-
Device typeManaged Switch - 16 Ports
-
DHCP ProtectionYes
-
Distributed TrunkingYes (loop-free redundancy without STP)
-
Dual Firmware ImagesYes
-
Dynamic ARP ProtectionYes
-
Expansion slots6 total (4 free on base model)
-
Fan TrayYes
-
Flow ControlYes
-
Forwarding rate571.4 Mpps (million packets per second)
-
GARP VLAN Registration ProtocolYes (GVRP)
-
Half Duplex and Full DuplexYes
-
Installed Modules2 installed / 6 max
-
IPv4 Routing Table Entries10,000
-
IPv6 Routing Table Entries5,000
-
Latency (1000Mb)< 2.8 microseconds
-
Latency (Crossbar)2.1 microseconds
-
Link aggregationIEEE 802.3ad LACP, HPE port trunking (up to 144 trunks)
-
MAC Address Table Size64,000 entries
-
Management Information BaseYes (MIB support)
-
Management protocolsSNMP v1/v2c/v3, RMON 1/2/3/9, Telnet, HTTP, HTTPS, TFTP, CLI, SSH, XRMON
-
Model5406R 16-port SFP+ (No PSU) v3 zl2
-
Non-stop RoutingYes (NSR)
-
Operating SystemAruba OS (AOS) v10.x, v11.x
-
Product LineAruba 5400R zl2 Series
-
Product typeManaged Ethernet Switch
-
Quality of Service (QoS)Yes (Class of Service, DiffServ, bandwidth control, rate limiting)
-
Rack mountingYes (4U rack-mountable, includes rack mount kit)
-
Routing protocolsOSPFv2, OSPFv3, BGP, VRRP, RIP-1, RIP-2, PIM-SM, PIM-DM, Static IP Routing, Static IPv6 Routing, IGMP, IGMPv3, MLD, MLDv2
-
Security - AuthenticationSSH v2, RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
-
Security EncryptionSSL, MACsec (IEEE 802.1AE)
-
SFlowYes (SFlow v5)
-
Spanning tree protocolSTP, RSTP, MSTP, PVRST+
-
STP Root GuardYes
-
Subtype10 Gigabit Ethernet
-
TunnelingYes (VxLAN encapsulation for overlay networks)
-
Type of ServiceYes (ToS)
-
Uni-directional Link DetectionYes (UDLD)
-
VLAN taggingIEEE 802.1Q standard
Network
-
ARP SupportYes
-
BOOTp SupportYes
-
DHCP SupportYes (DHCP Client, DHCP Relay, DHCP Server)
-
Energy Efficient EthernetYes (IEEE 802.3az)
-
IPv4 SupportYes
-
IPv6 SupportYes
-
Ports16 x 1 Gigabit / 10 Gigabit SFP+
-
Port SecurityYes
-
Port Speed1 Gbps or 10 Gbps per port (auto-sensing)
-
SDN SupportYes (OpenFlow, programmable networking)
-
SNTP SupportYes
-
VLAN support4,094 simultaneous VLANs (IEEE 802.1Q)
Physical
-
Enclosure TypeRack-mountable - 4U
-
Switching Fabric Bandwidth1015 Gbps
Storage
-
Flash memory1 GB
-
Management InterfaceOut-of-band Ethernet management port
-
Port InterfaceSFP+ (Small Form-factor Pluggable Plus)
-
Switching capacity960 Gbps
Memory
-
IGMP snoopingYes
-
Jumbo Frame SupportYes (on Gigabit and 10-Gigabit ports)
-
MLD SnoopingYes
-
RAM4 GB DDR3 SDRAM
-
SD Memory Card Slot1 total (0 free)
Power
-
Power supplyNot included (No PSU) - requires external AC/DC power module
Processor
-
Processor1 x Freescale P2020 - 1.2 GHz
Vendor information
-
Warranty1
