ID: 100572965
L2+ 24-Port 100/1000X SFP +
EAN
4711605280334
In stock: 10-19
Delivery: 2–4 weeks

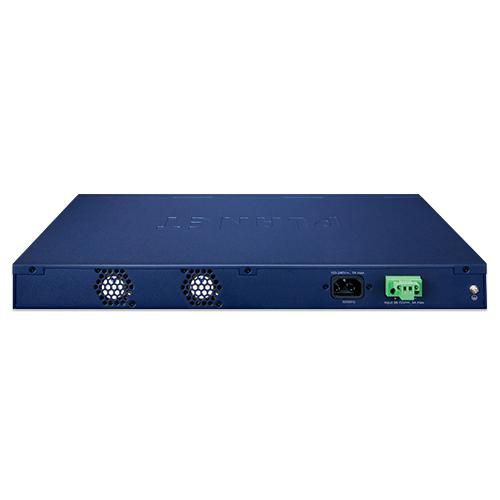

PLANET GS-5220-16S8CR is a Layer 2+ Managed Gigabit Switch which provides high-density performance and supports Layer 3 static routing with 10Gbps uplink and multiple SFP fiber interfaces delivered in a 1U rugged case design. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 128Gbps switching fabric, the GS-5220-16S8CR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications.
Network
-
10G supportNo
-
Auto MDI/MDI-XYes
-
Auto-negotiationYes
-
Broadcast storm controlYes
-
Copper ethernet cabling technology1000BASE-T/100BASE-T/10BASE-T
-
Ethernet LAN data rates10/100/1000
-
Flow control supportYes
-
Full duplexYes
-
Half duplexYes
-
IP routingYes
-
Link aggregationYes
-
MAC address auto-aging supportedYes
-
MAC address auto-learning supportedYes
-
Networking standardsIEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
-
Number of VLANs4094
-
Port mirroringYes
-
Rate limitingYes
-
Spanning tree protocolYes
-
Virtual LAN featuresIP subnet–based VLAN/MAC address-based VLAN/Multicast VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
-
VLAN supportYes
Packaging data
-
AC adapter includedYes
-
Cables includedRS-232
-
Mounting brackets includedYes
-
Quick start guideYes
-
Rack mount kitYes
-
Rubber feetYes
Security
-
Access Control List (ACL)Yes
-
AuthenticationMAC-based authentication/Port-based authentication
-
Authentication typeRADIUS/TACACS+
-
BPDU filtering/protectionYes
-
DHCP featuresDHCP relay/DHCP snooping
-
IGMP snoopingYes
-
Loop protectionYes
-
MAC address filteringYes
-
Queue scheduling algorithmsSP/Weighted Round Robin (WRR)
-
Security algorithmsSNMPv3/SSH/SSL/TLS
-
SSH/SSL supportYes
Power
-
AC input frequency50 - 60
-
AC input voltage100 - 240
-
DC input voltage36 - 72
-
Input current0.6
-
Power consumption (max)45
-
Power consumption (typical)36.2
-
Power supply includedYes
-
Redundant power supply (RPS) supportYes
Management features
-
ARP inspectionYes
-
Cloud-managedYes
-
Quality of Service (QoS) supportYes
-
Switch layerL2+
-
Switch typeManaged
-
System event logYes
-
Traffic classificationYes
-
Traffic shapingYes
-
Web-based managementYes
Ports & interfaces
-
Basic switching RJ-45 Ethernet ports quantity8
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
-
Combo SFP ports quantity8
-
Compatible memory cardsNot supported
-
Console portRS-232
-
Fiber optic connectorSFP
-
Fiber ports quantity24
-
Installed SFP+ modules quantity4
-
Installed SFP modules quantity24
-
SFP module slots quantity24
Vendor information
-
Brand NamePlanet
-
Homepagehttps://www.planet.com.tw/en/product/gs-5220-16s8cr-v2
-
Warranty1
Certificates
-
CertificationFCC Part 15 Class A, CE
Optical fiber
-
Fiber ethernet cabling technology1000BASE-X/100BASE-X
Design
-
Form factor1U
-
Housing materialMetal
-
LED indicatorsYes
-
Number of fans2
-
Product colourBlue
-
Rack mountingYes
-
Reset buttonYes
-
StackableNo
Operational conditions
-
Heat dissipation102.9
-
Operating relative humidity (H-H)5 - 95
-
Operating temperature (T-T)0 - 50
-
Storage relative humidity (H-H)5 - 95
-
Storage temperature (T-T)-10 - 70
Data transmission
-
Jumbo frames10000
-
Jumbo frames supportYes
-
MAC address table16000
-
Number of static routes128
-
Packet buffer memory16
-
Static routeYes
-
Store-and-forwardYes
-
Switching capacity128
-
Throughput95.23
Protocols
-
Management protocolsSNMP,SSH,SSL/TLS
Multicast features
-
Multicast supportYes
-
Number of multicast groups filtered255
Power over Ethernet (PoE)
-
Power over Ethernet plus (PoE+) ports quantity8
-
Power over Ethernet (PoE)No
-
Power over Ethernet (PoE) ports quantity8
