IOLOGIK E2210

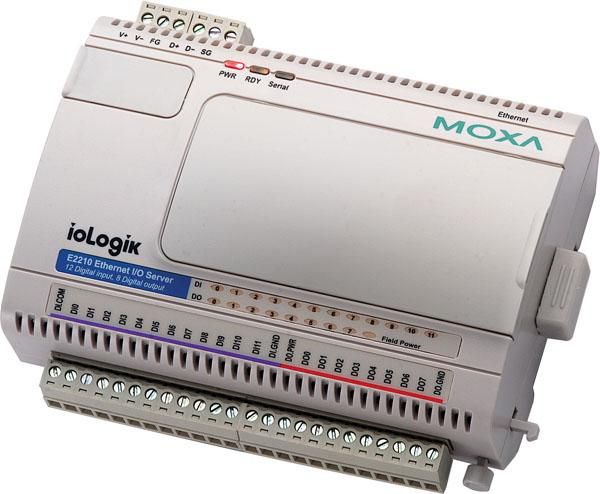

Moxa ioLogik E2210 is a smart Ethernet remote I/O unit for collecting field signals and controlling connected equipment. Its Click&Go logic supports event-based monitoring and control without requiring a PC controller for simple input-triggered output actions.

The unit provides 12 digital inputs and 8 digital outputs. Inputs accept dry contacts or wet-contact NPN sensors. One RJ45 Ethernet port supports network communication, including Modbus TCP Server and SNMP, for integration with monitoring and control systems.

The E2210 uses a screw-fastened Euroblock power terminal and accepts 12 to 36 VDC. The standard model is rated for operation from -10 to 60°C and measures 115 x 79 x 45.6 mm. It can be mounted on a DIN rail or wall. The wider -40 to 75°C range applies to the separate E2210-T model.
