IMC-21GA-SX-SC-T

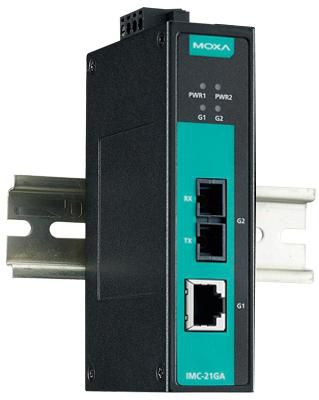

Moxa IMC-21GA-SX-SC-T is an industrial media converter for linking copper Ethernet equipment to a fiber network. It has one 10/100/1000BaseT(X) port with an RJ45 connector and one 1000BaseSX port with a multi-mode SC connector, providing a clear path between the two media types.

The optical link operates at 850 nm and supports a typical distance of 500 m. Its specified operating range of -40 to 75°C suits installations exposed to a broad range of ambient temperatures.

A metal housing and DIN-rail mounting support placement in industrial network enclosures. The unit measures 30 x 125 x 79 mm and receives 12 to 48 VDC through a terminal block.
