ID: 102533582
Amd B850 Socket Am5 Atx

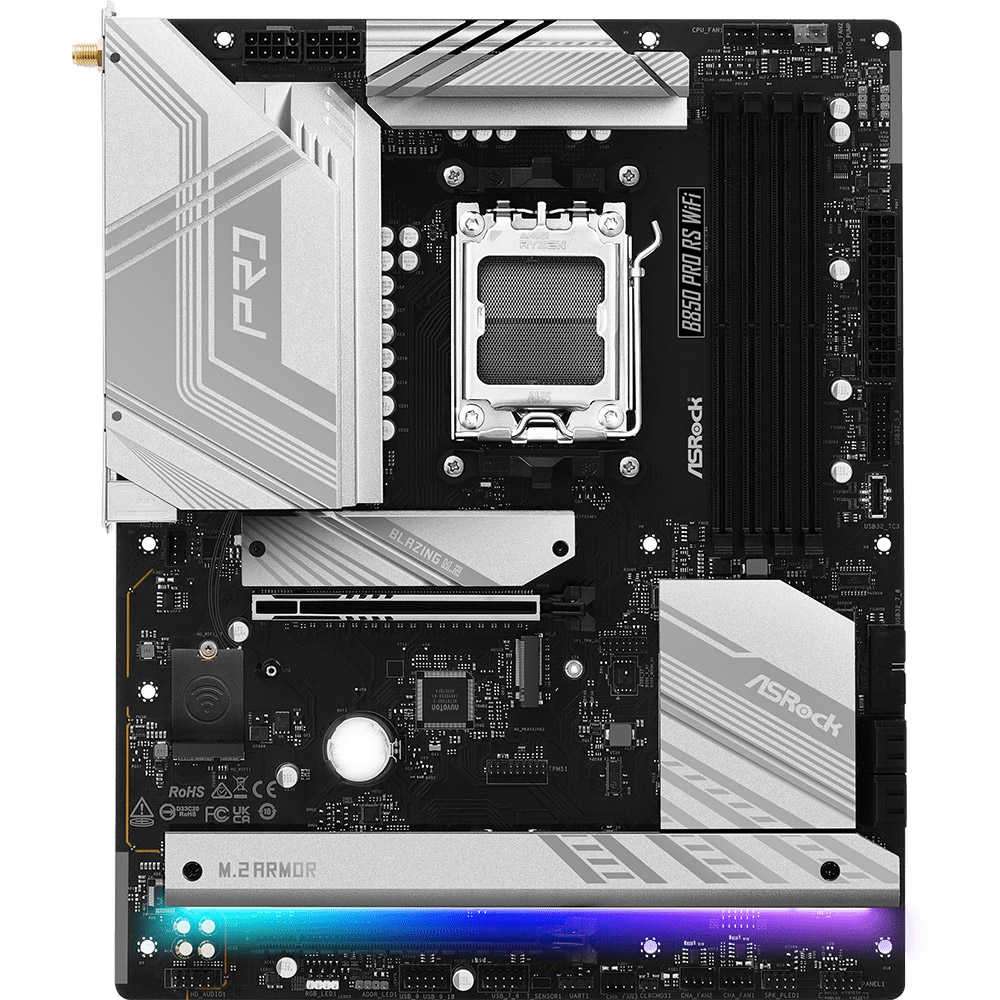

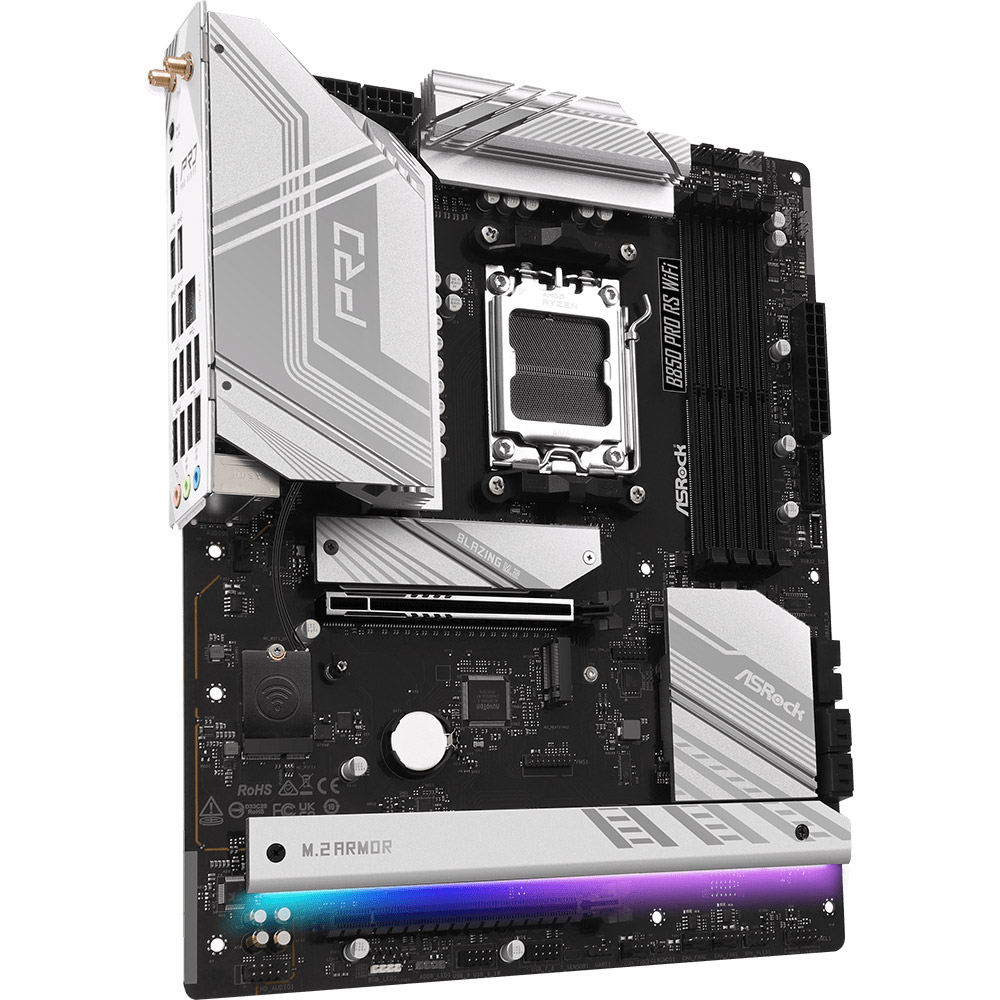

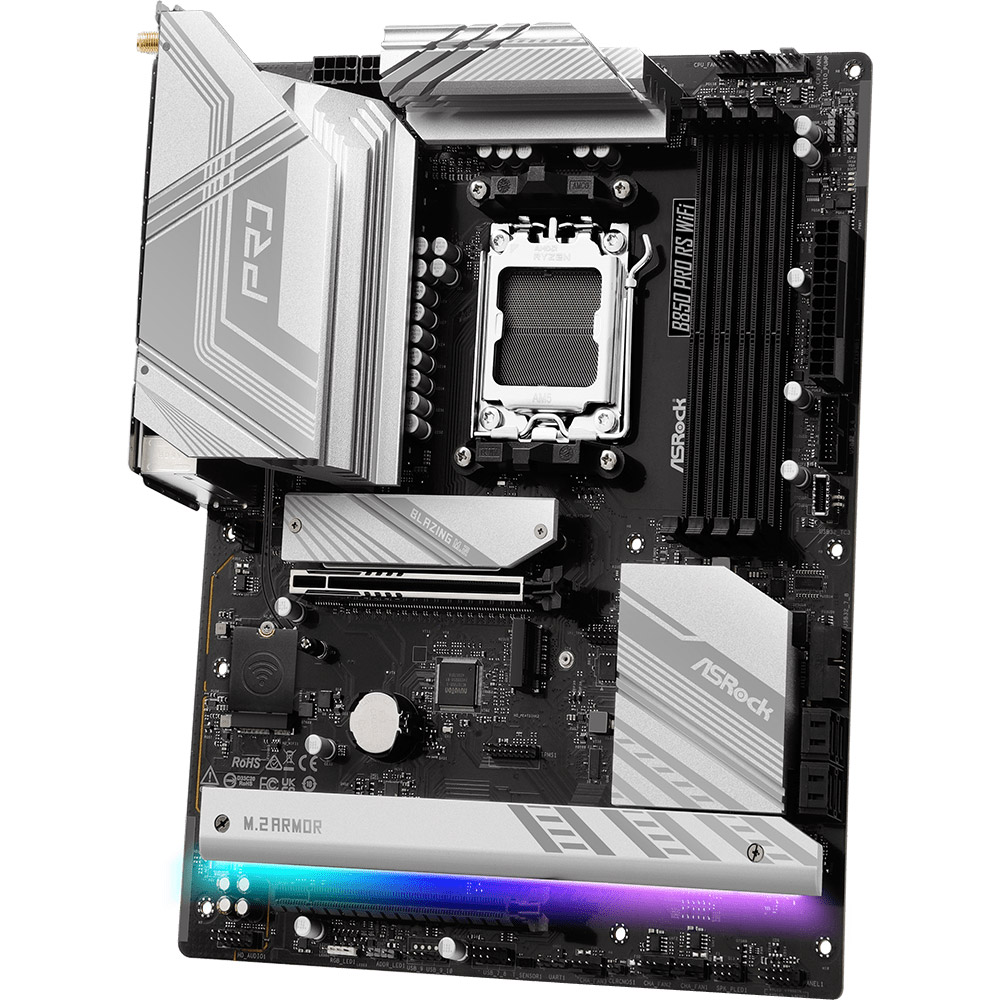

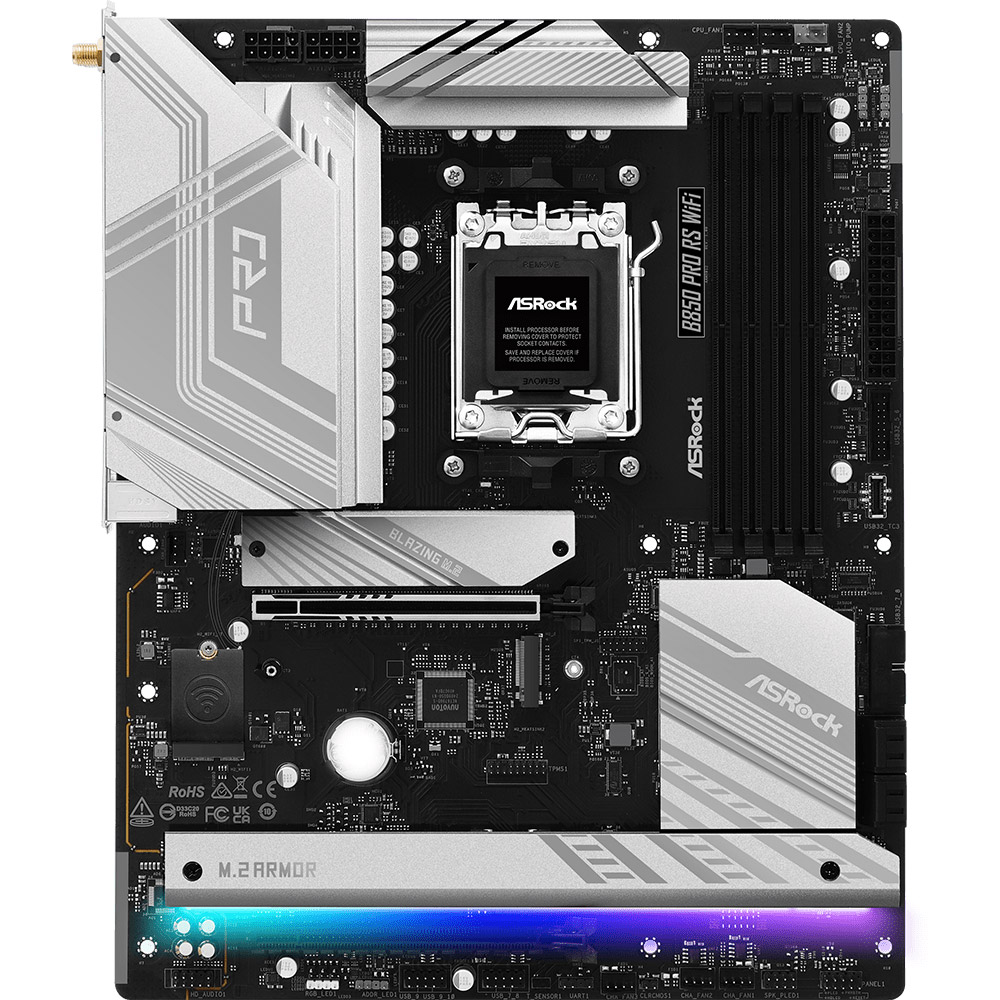

The ASRock B850 Pro RS WiFi is an ATX motherboard with the AMD B850 chipset and Socket AM5, designed for desktop systems using Ryzen 9000, 8000 or 7000 Series processors.
Four DDR5 DIMM slots support dual-channel memory. For storage, four M.2 sockets provide options across PCIe Gen5 x4, two PCIe Gen4 x4 and PCIe Gen3 x4. Expansion includes a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot operating at x4; availability and operation can depend on the processor and M.2 configuration.

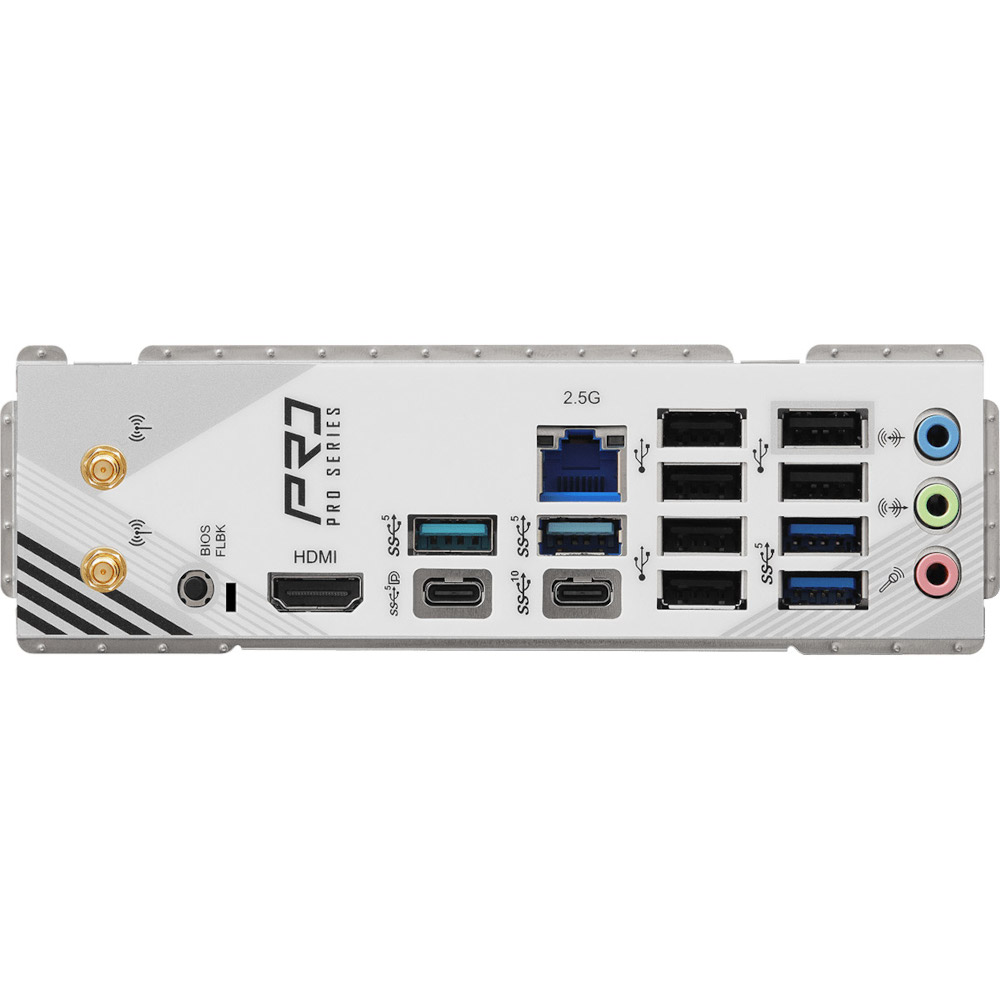

Networking includes 2.5 Gigabit Ethernet, Wi-Fi 6E and Bluetooth 5.2. The rear panel has HDMI, USB Type-C and Type-A ports, LAN and a BIOS Flashback button. The board measures 30.5 × 24.4 cm and uses an 8-layer PCB.

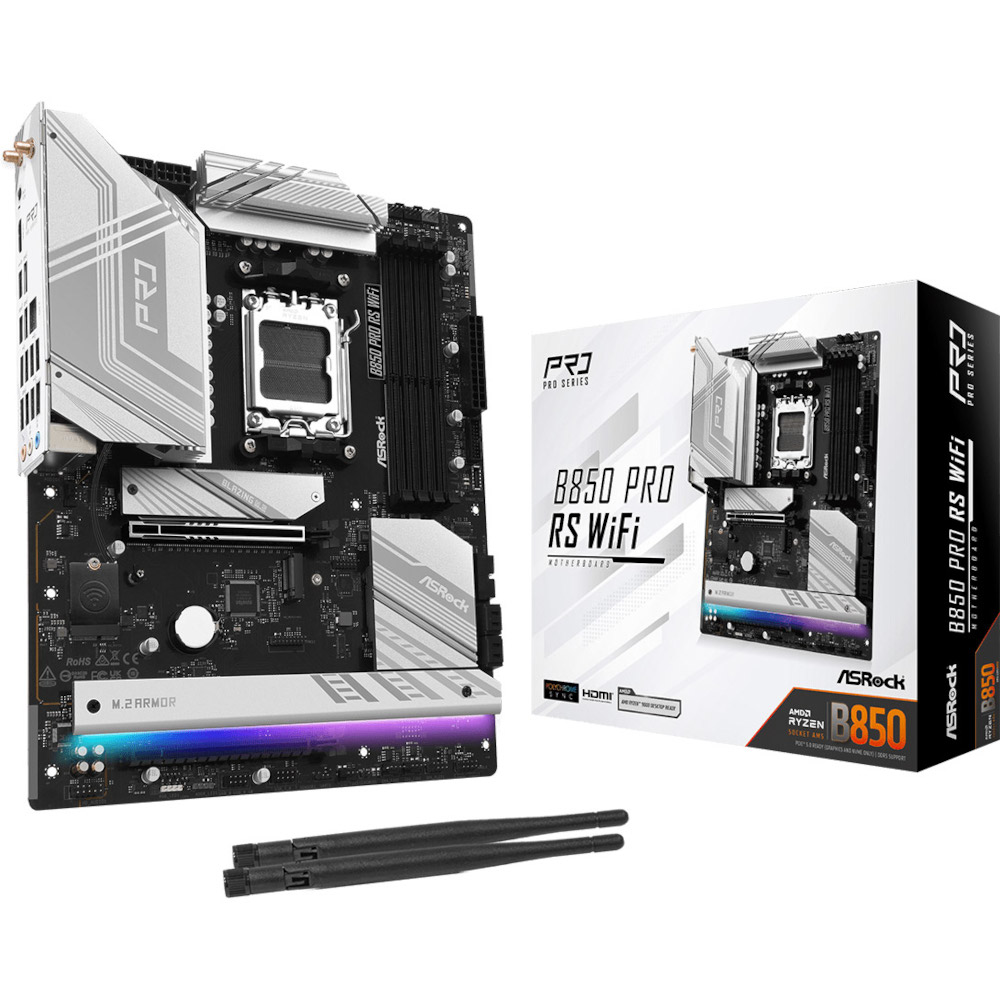

Package contents: two Wi-Fi antennas and two SATA data cables, as listed by the manufacturer.
