ID: 100109274

Power Supply Unit 700 W 20+4

EAN 0753263076502

In stock: 20-49 Delivery: 1–2 weeks

Price on request

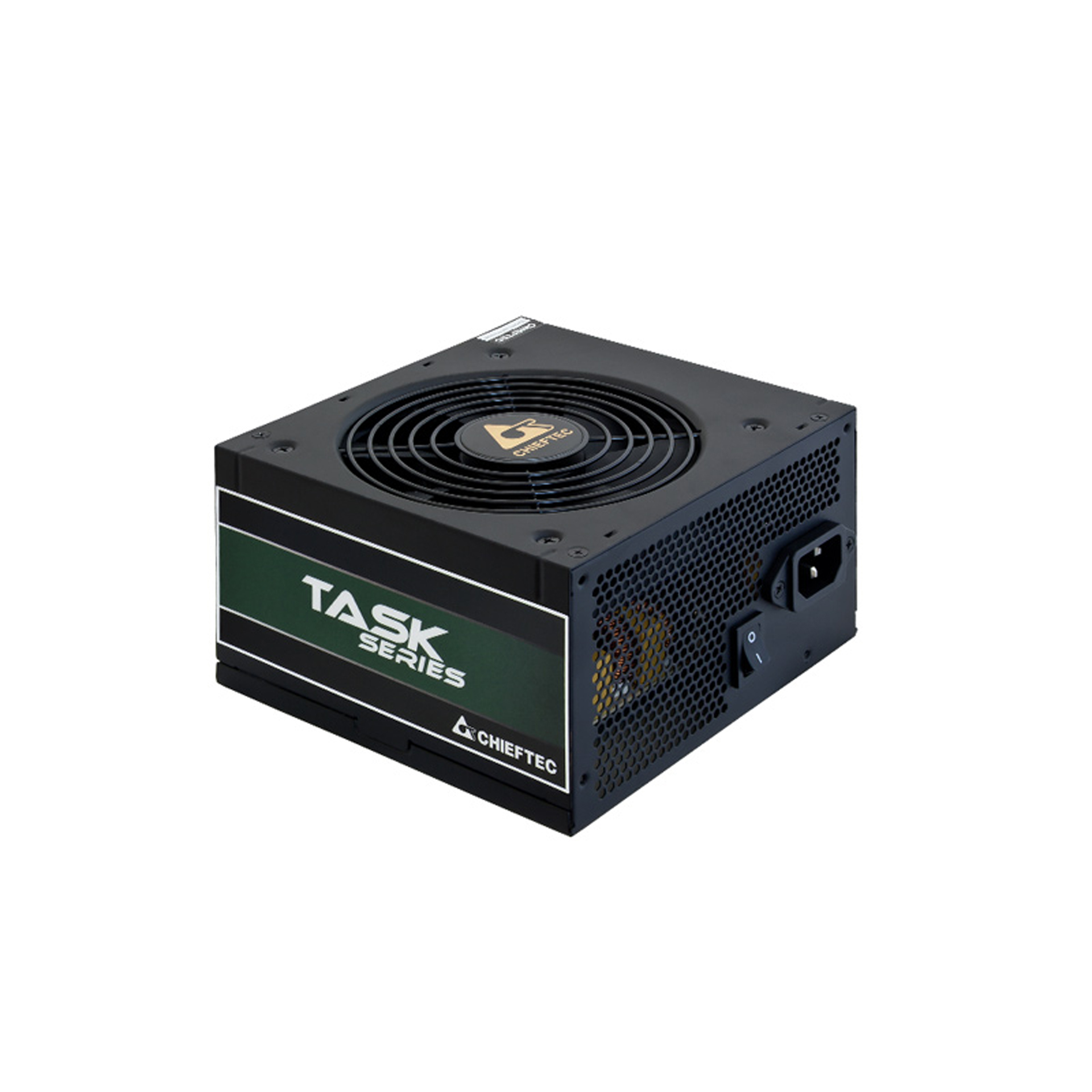

Chieftec TPS-700S is a 700 W power supply for a desktop PC, part of the Task Series. Its ATX 12V 2.3 specification and PS II form factor describe its fit for a compatible system.

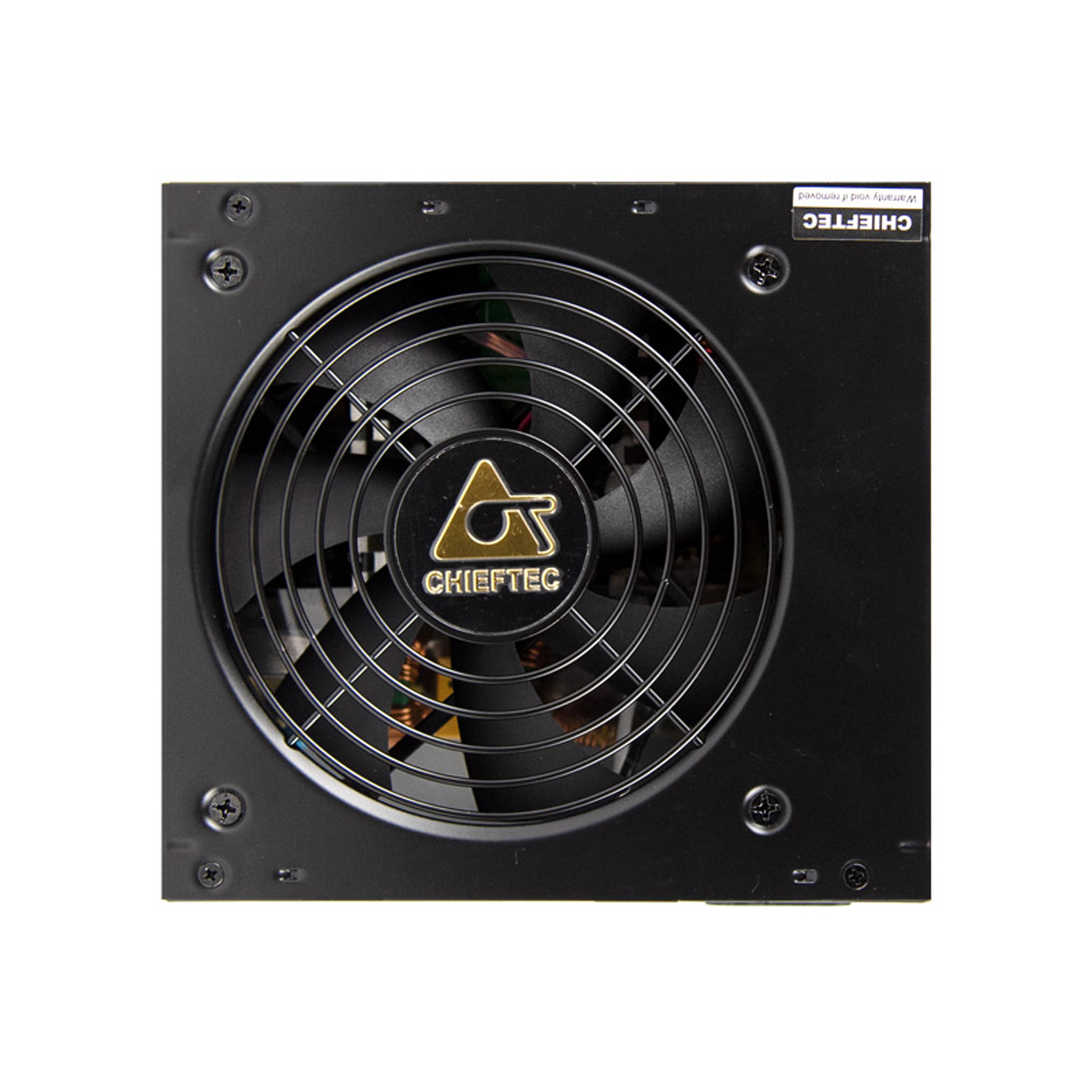

With 80 PLUS Bronze efficiency and active PFC rated at 0.9, it covers the stated power conversion features. A 120 mm fan provides cooling, while the 140 × 150 × 87 mm case size (depth × width × height) helps check available space.

The 24-pin (20+4) motherboard cable and 4+4-pin EPS cable are each 650 mm long; two 6+2-pin PCI-E connectors are also provided. Total rated output is 700 W. The +12 V rail is rated at 54 A, with up to 648 W combined power. Listed protections are AFC, OPP, OTP, OVP, SCP, SIP and UVP.
