Vita Netzteil 850W 80+Bronze

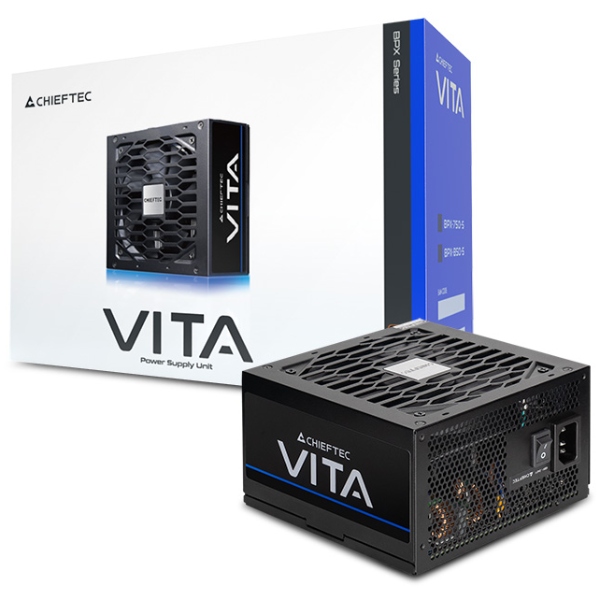

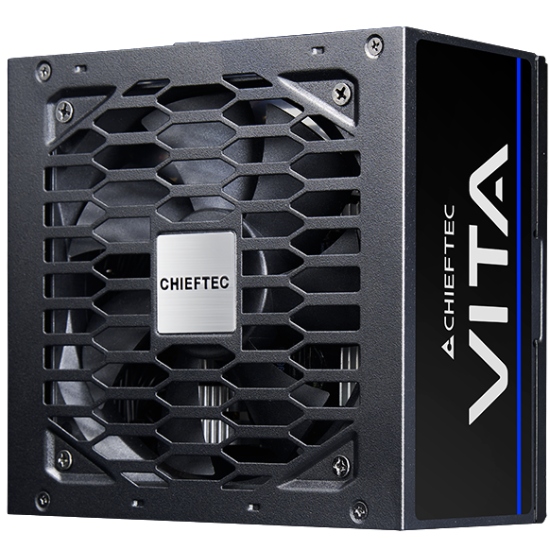

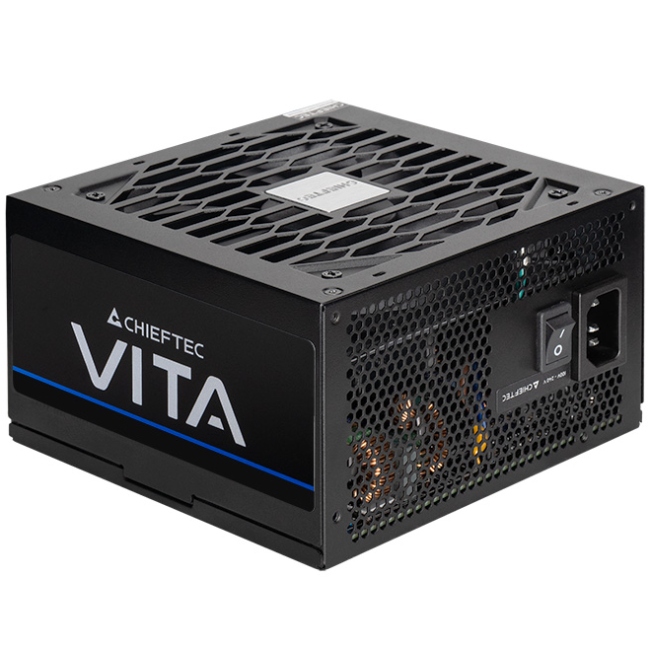

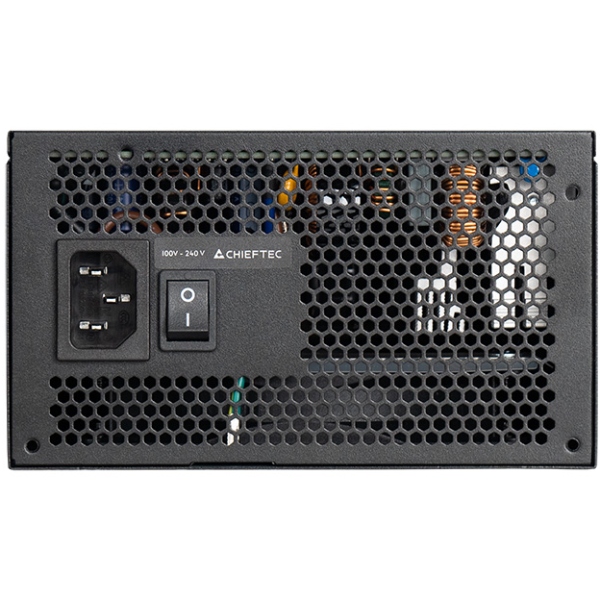

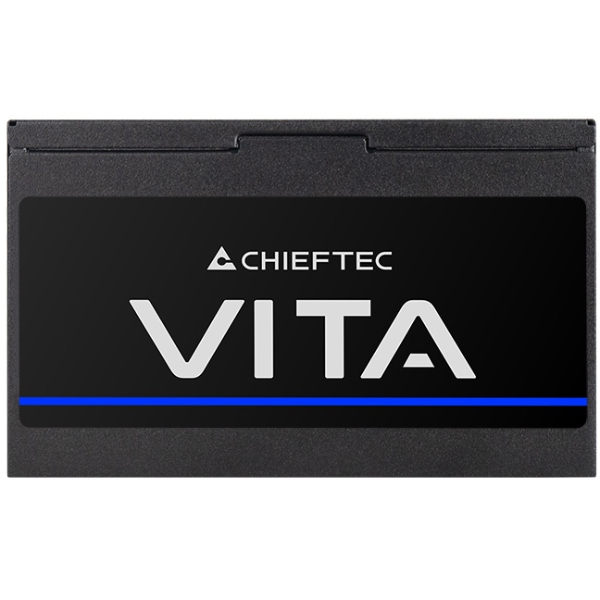

Chieftec Vita BPX-850-S is an 850 W ATX power supply for desktop computers. It follows ATX 12V 2.53 and has 80 PLUS Bronze certification with active PFC.

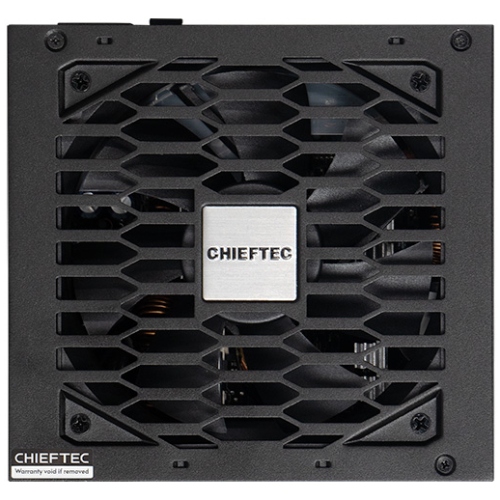

Double-forward and DC-to-DC technologies are paired with a 120 mm fan. The 140 × 150 × 86 mm dimensions are given as depth × width × height, helping you check installation space.

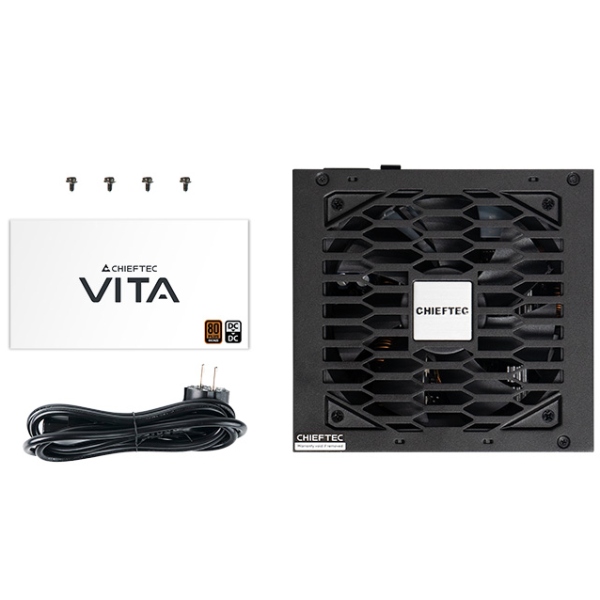

Its cable set has one 24-pin ATX connector, two 4+4-pin CPU connectors, four 6+2-pin PCIe connectors, six SATA connectors and two Molex connectors. Maximum combined output is 850 W, and the +12 V rail is rated at 70.8 A.
Listed protections cover overload, excessive temperature, overvoltage, short circuit, surge and inrush, undervoltage and over-current. The BPX-850-S is intended for desktop systems with a matching ATX installation and connector requirements.
