ID: 100132739
Eon Power Supply Unit 600 W

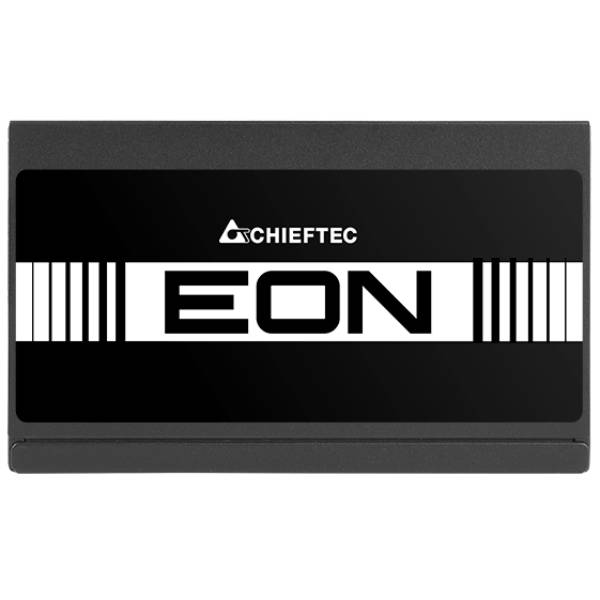

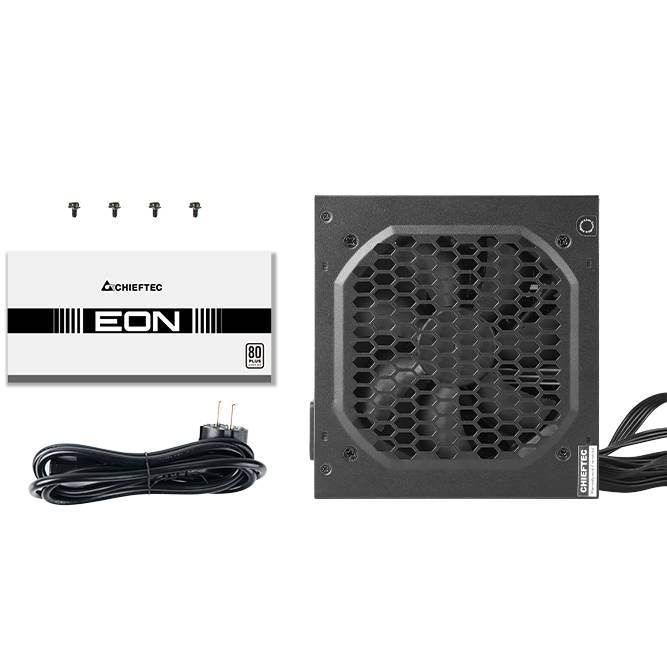

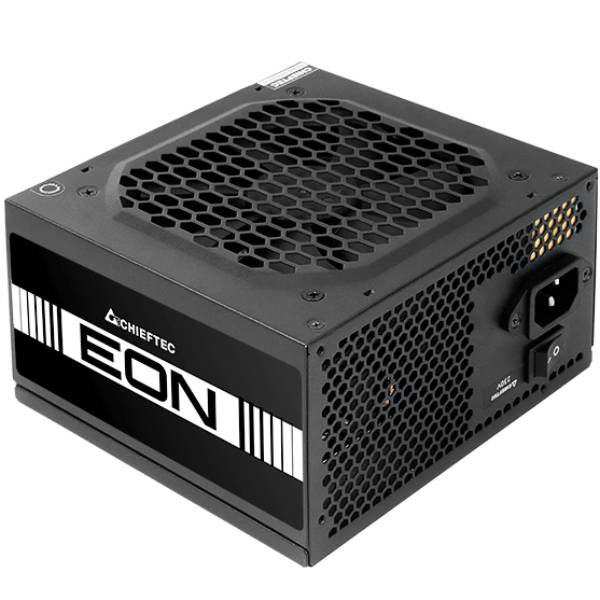

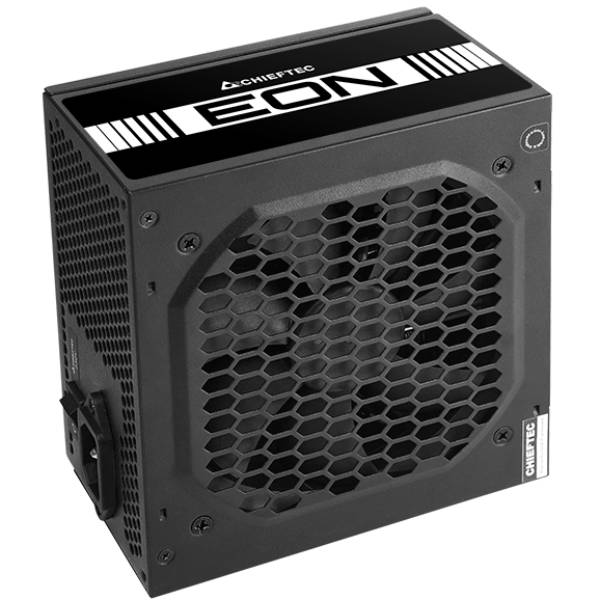

Chieftec EON ZPU-600S is a 600 W ATX power supply for desktop PCs, built to the ATX 12V 2.3 specification. Its black steel housing measures 140 × 150 × 86 mm, listed in depth, width and height order.

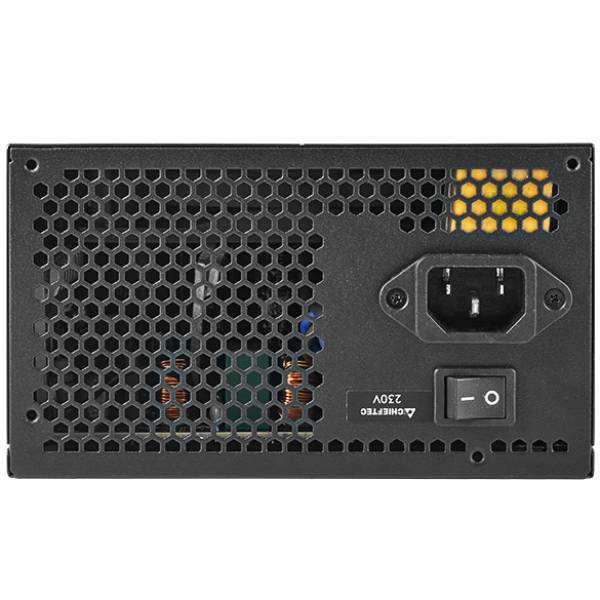

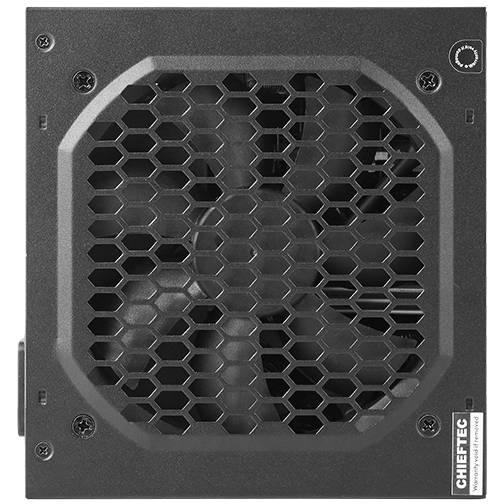

A 120 mm fan and active PFC are part of the unit; the datasheet lists 80 PLUS Standard 230V EU efficiency. AC input is rated at 200–240 V, 4.5 A and 50 Hz. The +12 V line supports up to 45 A and has 540 W combined power.
The cable set has a 24-pin ATX connector, two 4+4-pin CPU connectors, two 6+2-pin connectors, four SATA connectors and two Molex connectors. Protections are listed against overload, overvoltage, short circuit, surges, inrush and undervoltage, alongside automatic fan speed control. These connections and ratings help identify the supply’s fit for an ATX desktop build.
