Mатеринська плата sAM5 AMD B850 DP/HDMI 3xM.2 2.5 GbE LAN ATX B850 AORUS ELITE WIFI7

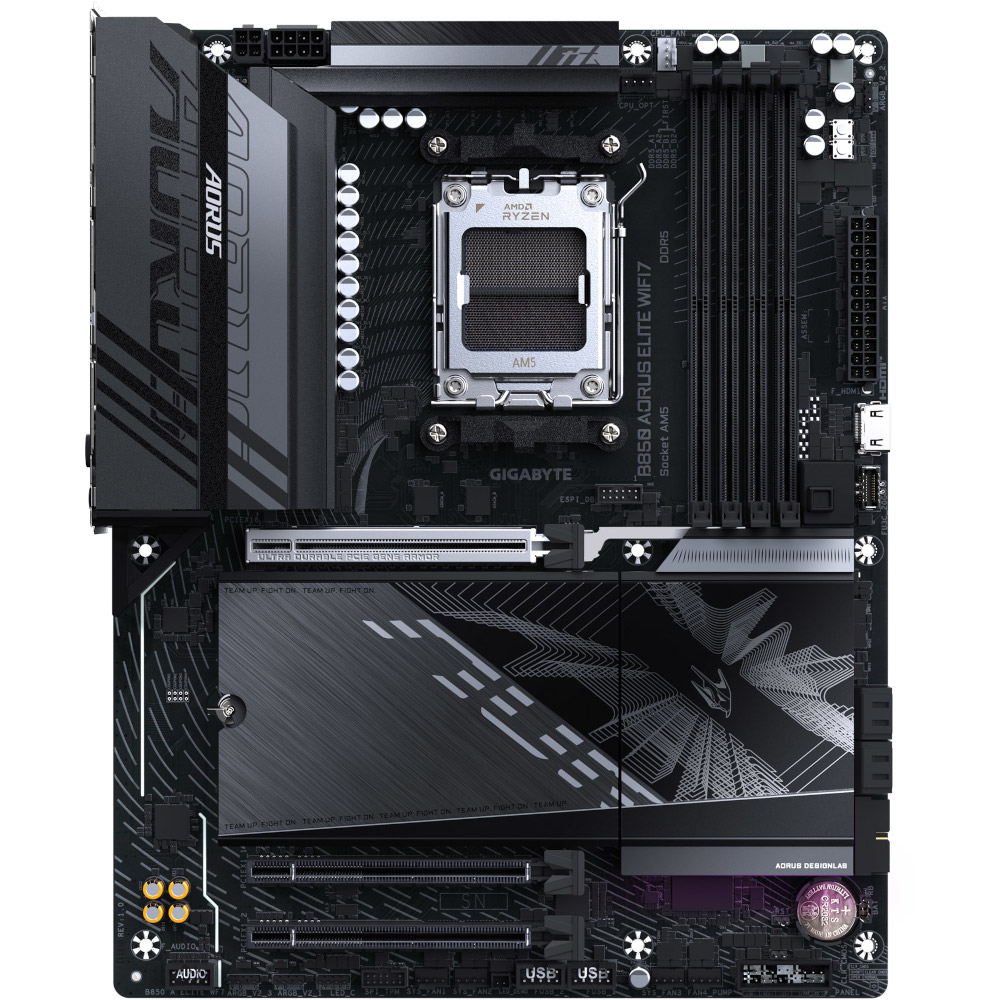

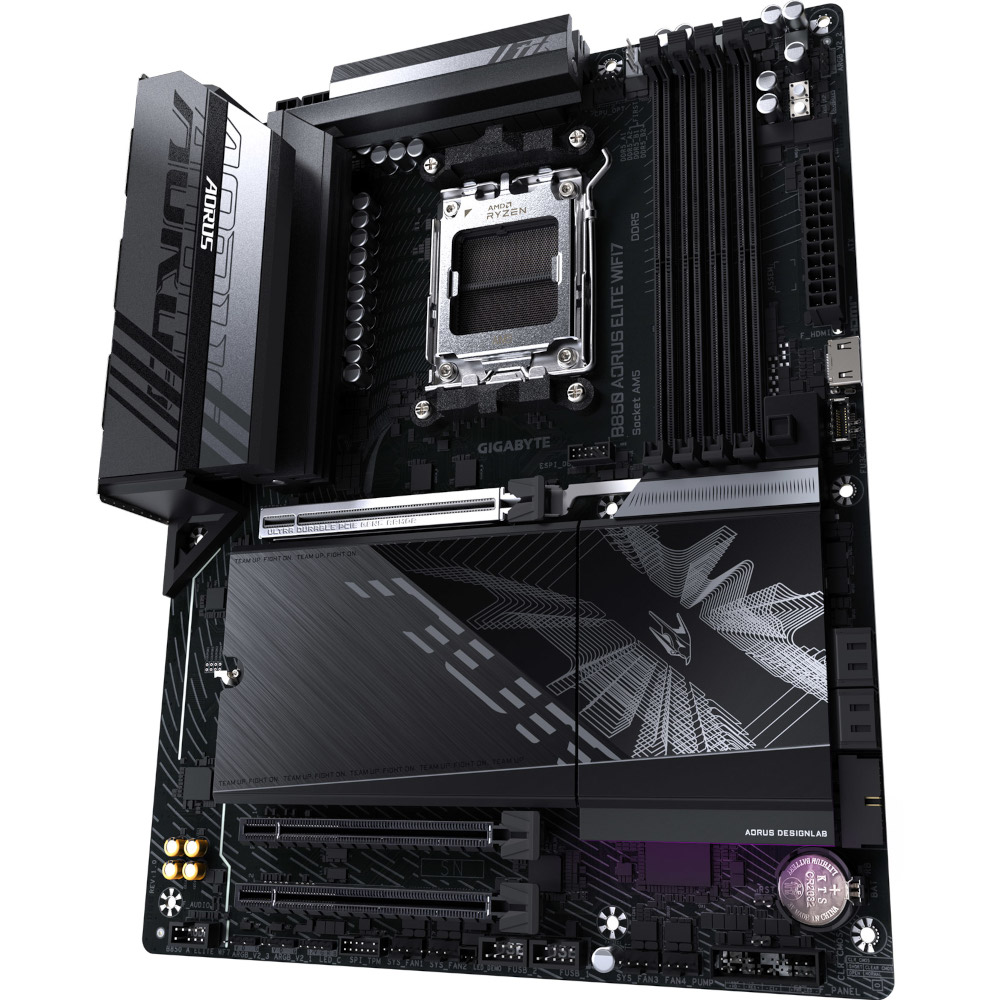

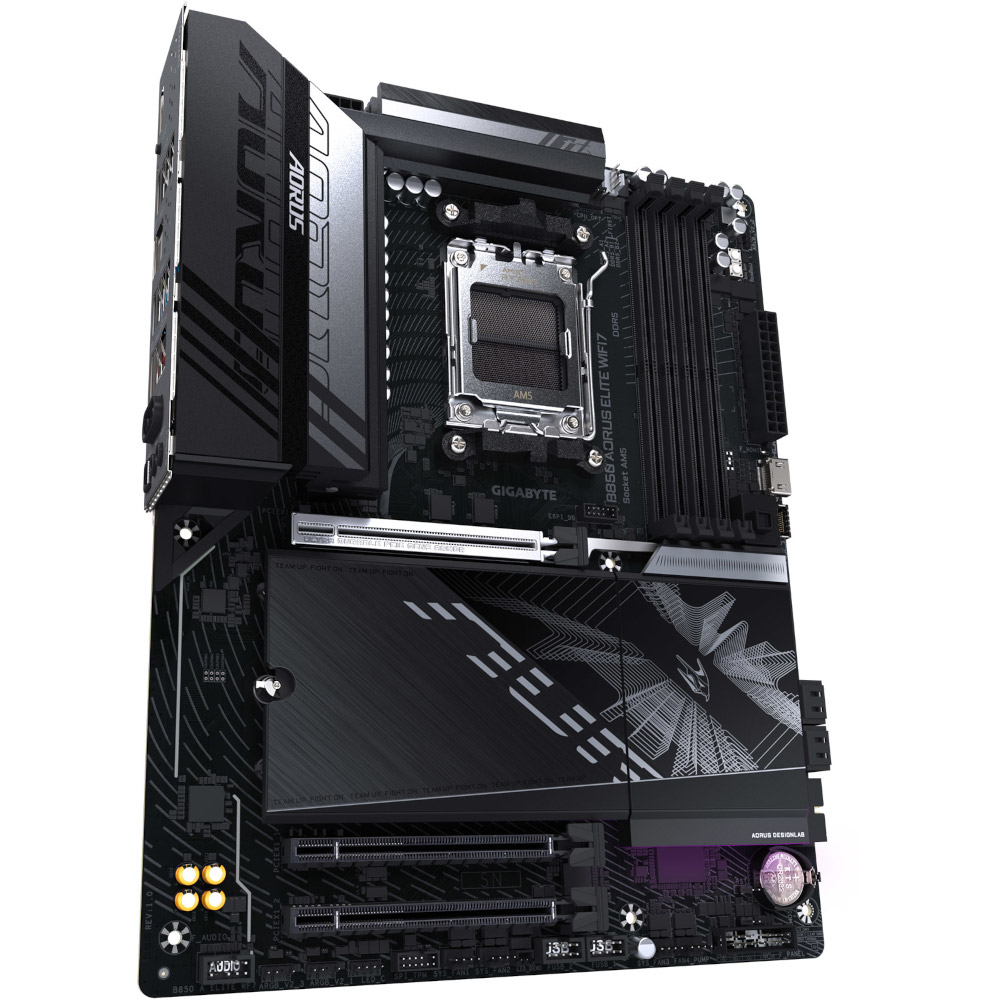

The GIGABYTE B850 AORUS ELITE WIFI7 is an ATX motherboard for desktop PCs using AMD Socket AM5 and the B850 chipset. It supports Ryzen 9000, 8000 and 7000 Series processors, making it a base for assembling or upgrading a compatible system.
Four DDR5 DIMM sockets support up to 256 GB of system memory. For storage, three M.2 connectors accommodate SSDs, alongside four SATA 6Gb/s connectors. This gives a build room for both M.2 and SATA drives.

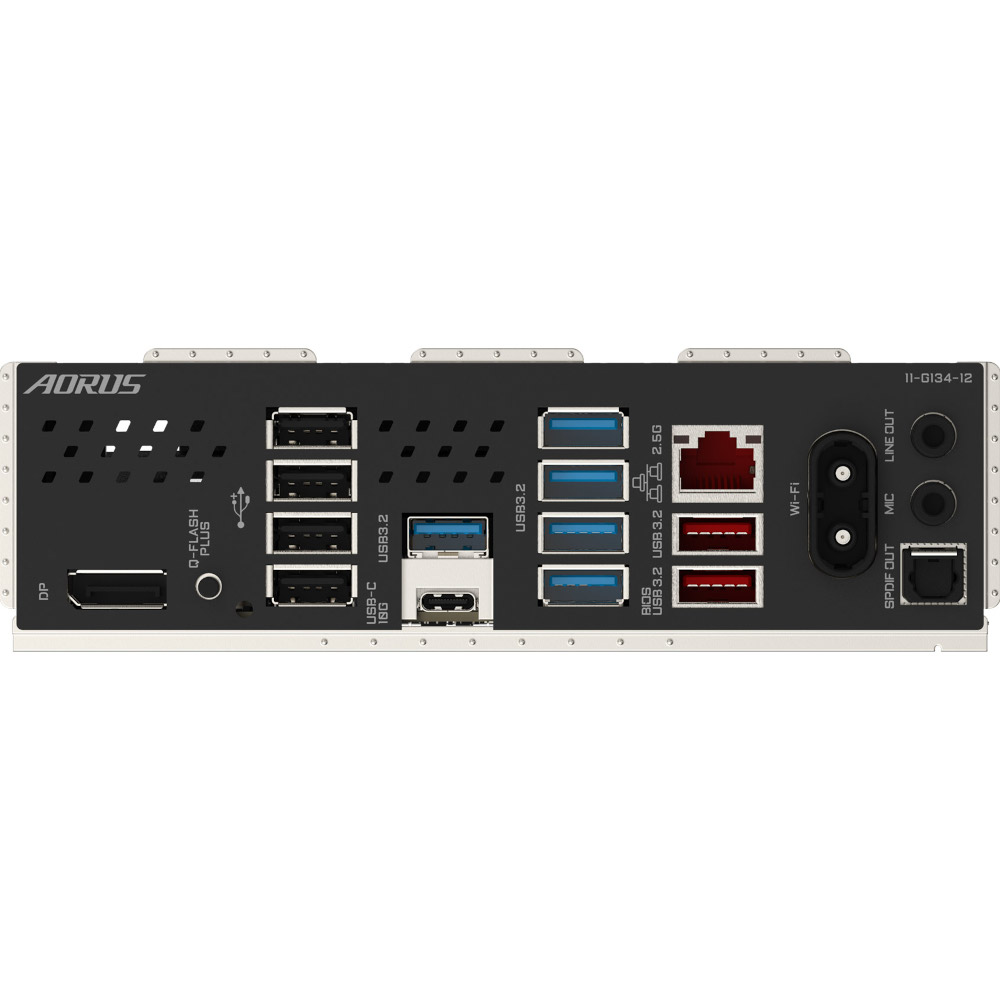

Networking includes Realtek 2.5GbE LAN and Realtek Wi-Fi 7, with Bluetooth 5.4 supported by the wireless module. Display connections comprise DisplayPort and a front HDMI port. Maximum listed resolutions are 3840 × 2160 at 144 Hz via DisplayPort and 1920 × 1080 at 30 Hz via HDMI; graphics output depends on processor support. The board measures 30.5 × 24.4 cm and fits desktop builds designed for the ATX form factor.
