10 GbE WAN Switch linking two

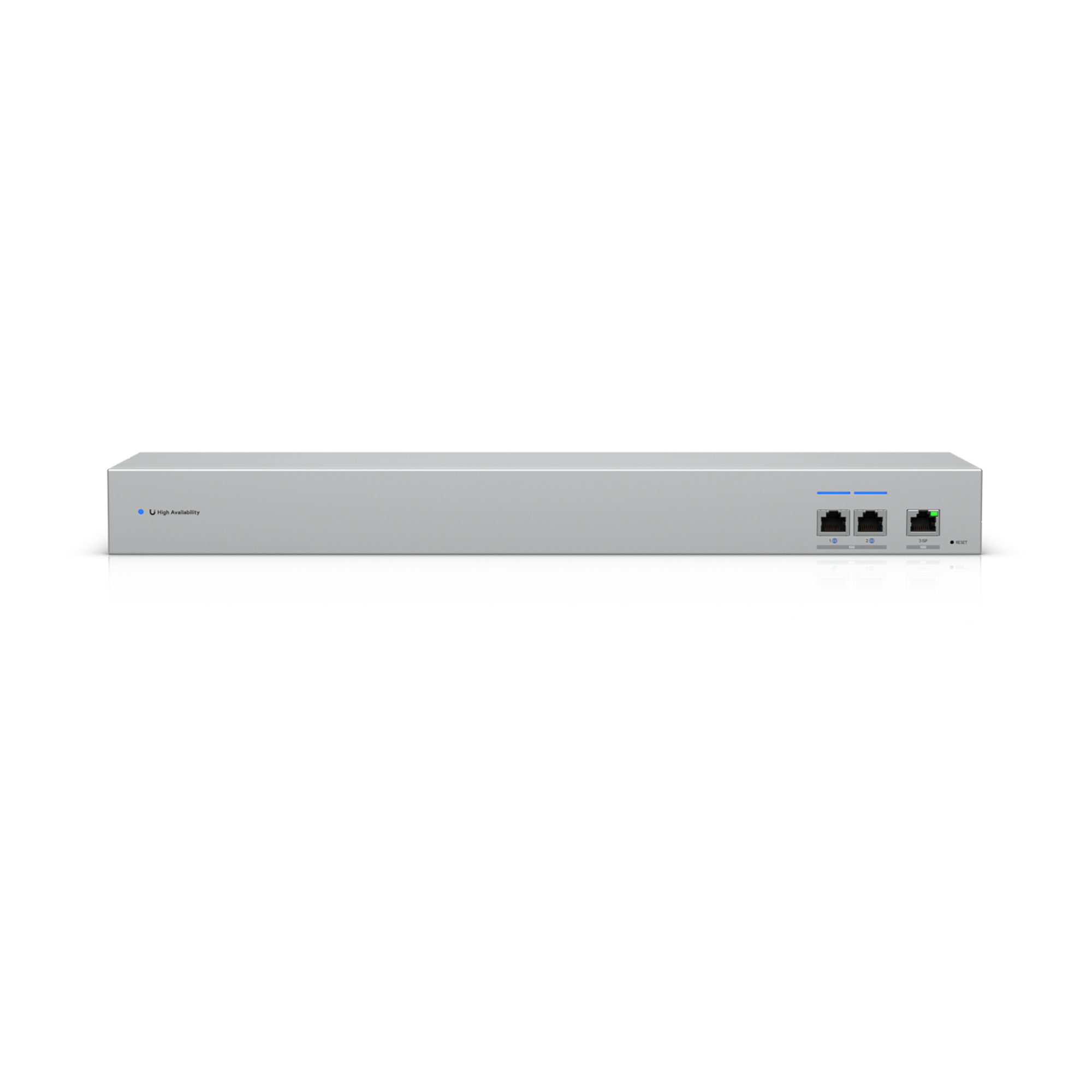

The Ubiquiti USW-WAN-RJ45 is a WAN switch for linking two Shadow Mode High Availability UniFi Gateways to one ISP, supporting a shared WAN connection in a high availability setup.

Its port layout combines three multi-gig 10 GbE RJ45 ports with one 1 GbE RJ45 port. The 10 GbE ports also support 5G, 2.5G, 1G and 100M links; the 1 GbE port supports 1G, 100M and 10M. Switching capacity is 20 Gbps, with 10 Gbps total non-blocking throughput.

Designed for rack installation, the switch uses a 1U form factor and has two AC inputs. Its SGCC steel enclosure measures 442.4 × 120 × 43.7 mm. Ubiquiti lists UniFi Network version 9.1.120 or later as the application requirement.
