5520 Managed L2/L3 Gigabit
Этот продукт снят с производства
К сожалению, товара нет в наличии.

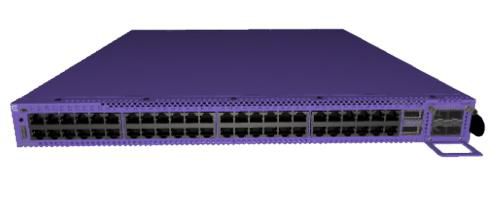

Extreme Networks 5520-48T: 48-port 1G Ethernet switch with 90W PoE, 176 Gbps capacity for enterprise wiring closets and edge aggregation.
General
-
Best forEnterprise Edge, Wiring Closet, Aggregation
-
Chassis FeaturesUniversal hardware platform; hot-swappable redundant power supplies and fans
-
CoolingFront to back cooling and AC power supply input on all models; back to front cooling and DC power supply input option on specific models; 3 fan modules
-
Deployment TypeEnterprise edge and aggregation deployments; wiring-closet environments
-
Слоты расширения1 x VIM slot
-
Таблица MAC-адресовSupports Layer 2/Layer 3 Fabric services for secure network segmentation
-
Maximum Heat Dissipation483 BTU/hr
-
Minimum Heat Dissipation176 BTU/hr
-
Model5520-48T
-
Product Line5520 Series
-
Тип продуктаFixed 48-port Gigabit Ethernet Switch
-
Функции безопасностиMACsec on access ports for secure link encryption; end-to-end network segmentation
-
Software LicenseBase software license included; 1-year XIQ Pilot subscription included
-
ТехнологияUniversal dual-persona hardware with choice of ExtremeSwitching operating systems
-
Пропускная способность803.5 Mpps
Сеть
-
Консольные порты1 x Serial console port (RJ-45); 1 x USB Micro-B console port
-
Ethernet Ports48 x 10/100/1000BASE-T ports with Full/Half-Duplex autosensing; MACsec-capable
-
Management Port1 x 10/100/1000BASE-T out-of-band management port
-
Network ProvisioningFabric-enabled operations with Extreme Fabric Connect for simplified and secure network provisioning and automation
-
PoE SupportIEEE 802.3bt 90W PoE on all 48 ports
-
Stacking Ports2 x Stacking/QSFP28 ports (unpopulated)
-
USB Ports2 x USB A ports for management or external USB flash
Physical
-
Глубина449 mm (17.68 in)
-
Форм-факторFixed form factor; non-blocking, wire-speed design
-
Масса5.76 kg (12.70 lb)
-
Ширина441 mm (17.36 in)
Хранилище
-
Management InterfaceIntuitive and centralized cloud-based network management with ExtremeCloud IQ and ExtremeCloud IQ Site Engine
-
Коммутационная способность176 Gbps
Власть
-
Maximum Power Consumption142 Watts
-
Minimum Power Consumption52 Watts
-
Power SuppliesHot-swappable, redundant modular PSU slots (2 unpopulated slots); AC and DC power supply input options on specific models
Информация о поставщике
-
Гарантия1
