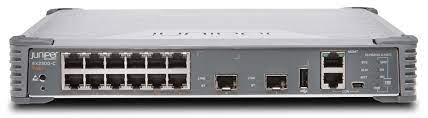

Compact 12-port PoE+ Gigabit switch with 64Gbps capacity, fanless design, and 10GbE uplinks.
Сеть
-
Access Ports12x 10/100/1000BASE-T PoE+
-
Energy Efficient EthernetEEE support for GbE access ports
-
Management Ports1x serial management | 1x 100Base-TX RJ-45 management
-
Maximum Neighboring Networks750
-
MDI/MDIX SupportAuto medium-dependent interface/medium-dependent interface crossover
-
Port Configuration12x 1000Base-T RJ-45 PoE+ | 2x 10Gbit LAN SFP+
-
Port Speed DownshiftSupported on 10/100/1000BASE-T ports
-
Power over EthernetPoE+
-
RMON SupportRFC 2819 Groups 1, 2, 3, 9
-
Supported MIBsRFC 1155 SMI, RFC 1157 SNMPv1, RFC 1212/1213/1215 MIB-II, Ethernet-like MIB
-
Uplink Ports2x Gigabit SFP / 10 Gigabit SFP+
-
Virtual Chassis SupportUp to four switches interconnected and managed as single logical device (optional license required)
-
Поддержка VLAN2,048 virtual interfaces (VLANs)
General
-
ACL Entries Hardware2,000 ACE per system
-
ARP Entries1,024
-
Best forBranch Office, Access Layer, Workgroup, Edge
-
Cable DiagnosticsDetecting cable breaks and shorts
-
Configuration ManagementJuniper Networks commit and rollback | Configuration backup via FTP/secure copy
-
Тип устройстваSwitch - 12 ports - L3 - managed
-
Digital Optical MonitoringSupported for optical ports
-
EMC CertificationsFCC 47CFR Part 15 Class A, EN 55022 Class A, CISPR 22 Class A, EN55024, ICES-003 Class A, VCCI Class A, CAN/CSA C22.2 No. 60950-1 (Second Edition), EN 300386
-
ERSPANEncapsulated Remote Switched Port Analyzer
-
Fanless DesignYes - silent operation
-
IEEE Standards ComplianceIEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR
-
IP ToolsExtended ping and trace
-
IPv4 Hosts4,096
-
IPv6 Hosts2,048
-
Junos Fusion EnterpriseSatellite device participation capability
-
LAG Groups128 groups | 8 maximum member ports per LAG
-
MAC Address Table Size16,000 entries
-
ModelEX2300-C-12P
-
Operating Humidity10% to 85% non-condensing
-
Operating Temperature32°F to 104°F (0°C to 40°C)
-
Physical RedundancyRedundant trunk group (RTG)
-
PoE Budget124 W
-
Product LineEX2300-C Compact Ethernet Switch
-
Тип продуктаLayer 3 Managed Ethernet Switch
-
QoS Hardware Queues8 per port
-
Remote Management ProtocolSNMP, Telnet, SSH, Secure copy, HTTP/HTTPs, DNS resolver, System log logging, NTP, DHCP server/client/proxy/relay, RADIUS authentication
-
Router-based ACL256 ingress | 512 egress
-
Протоколы маршрутизацииRIP-1, RIP-2, OSPFv3, RIPng, static IPv4 routing, static IPv6 routing, CIDR
-
Safety CertificationsUL 60950-1 (Second Edition), C-UL CAN/CSA 22.2 No. 60950-1 (Second Edition), TUV GS EN 60950-1 (Second Edition), CB IEC 60950-1 (Second Edition), EN 60825-1 (Second Edition)
-
Spanning Tree Instances64 Multiple Spanning Tree Protocol instances
-
SubtypeGigabit Ethernet
-
Датчик температурыIncluded
-
Пропускная способность47 Mpps
-
VLAN-based ACL256 ingress | 256 egress
Physical
-
Глубина9.4 inches (238.76 mm)
-
Enclosure TypeRack-mountable 1U
-
Высота1.7 inches (43.18 mm)
-
Ширина11 inches (279.4 mm)
Хранилище
-
Флэш-память2 GB
-
Storage Humidity0% to 95% non-condensing
-
Storage Temperature-40°F to 158°F (-40°C to 70°C)
-
Коммутационная способность64 Gbps
Память
-
IGMP Snooping Entries1,000
-
IPv4 Routes Multicast2,048
-
IPv4 Routes (Unicast)512
-
IPv6 Routes Multicast1,024
-
IPv6 Routes (Unicast)128
-
Jumbo Frame Support9,216 bytes
-
RAM2 GB with ECC
Власть
-
Power Consumption Max System24 W AC (without PoE)
-
Power Consumption (Operational)24 Watt
-
Power DeviceInternal power supply
-
Power Provided170 Watt AC
Процессор
-
Processor1x ARM: 1.25 GHz
Информация о поставщике
-
Гарантия1
