W Vega M Series Spx-1000-Fc

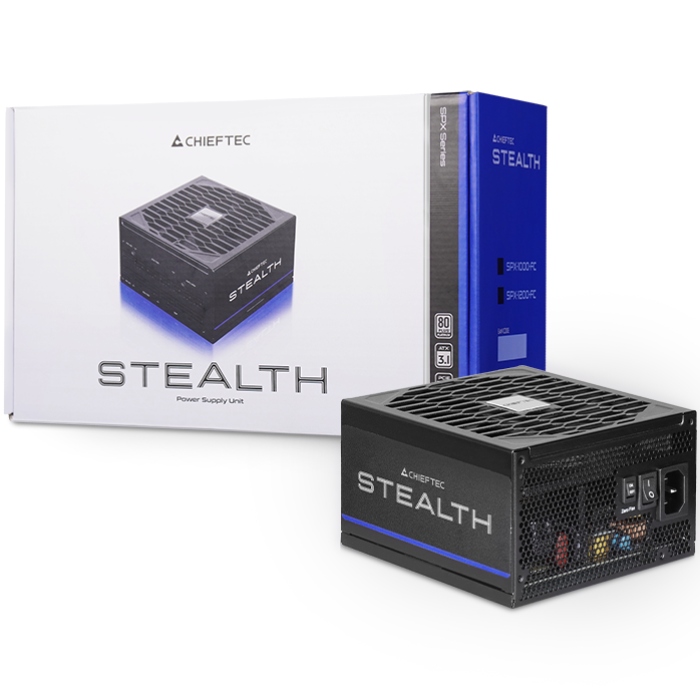

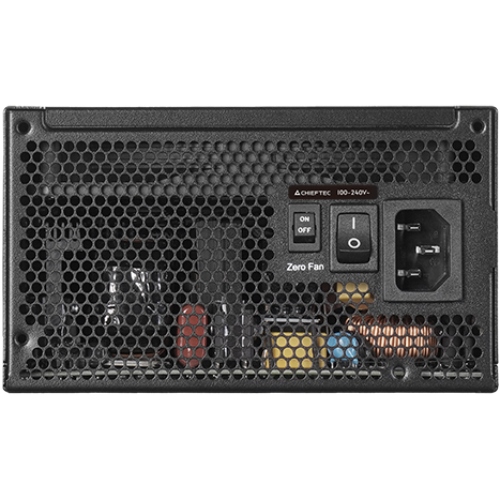

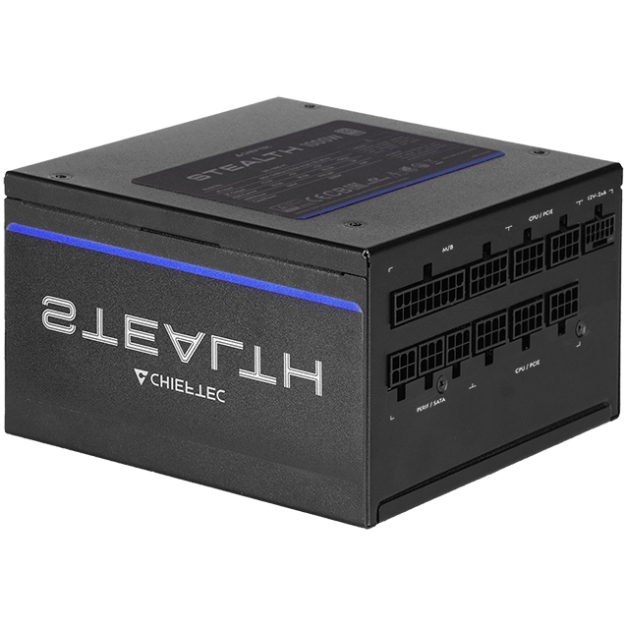

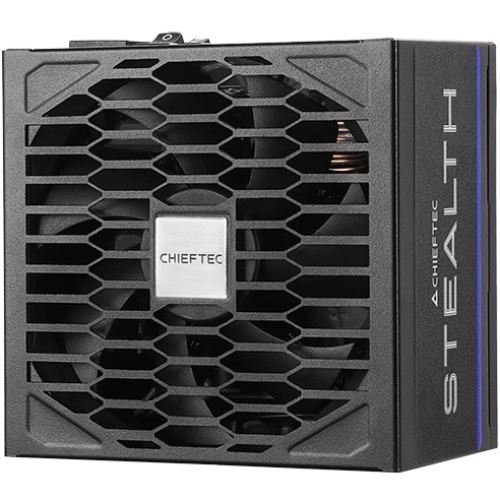

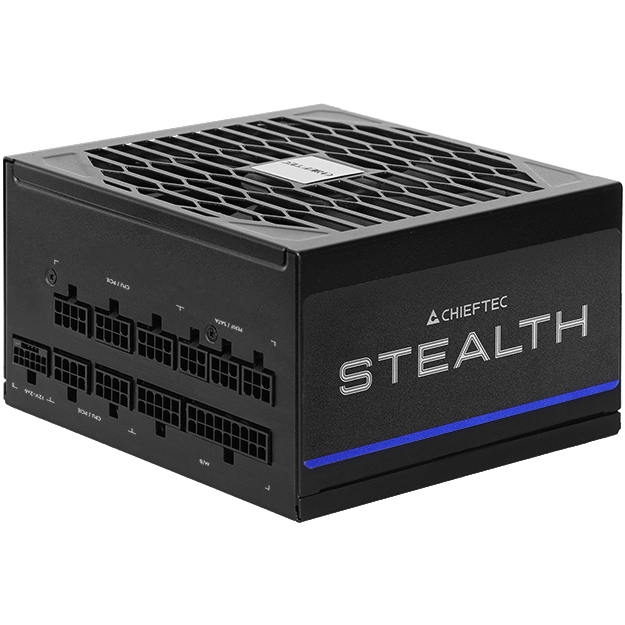

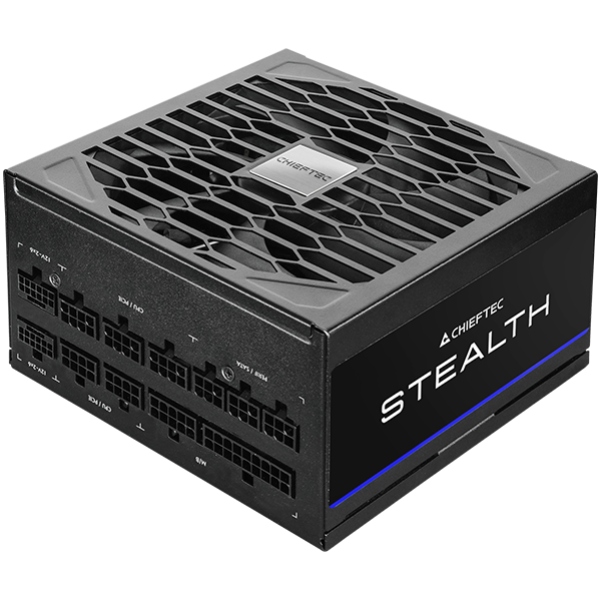

The CHIEFTEC SPX-1000-FC is a 1000 W ATX power supply from the Stealth Series for desktop computers. It follows ATX 12V 3.1, supports PCIe Gen 5, and has 80 PLUS Platinum certification.

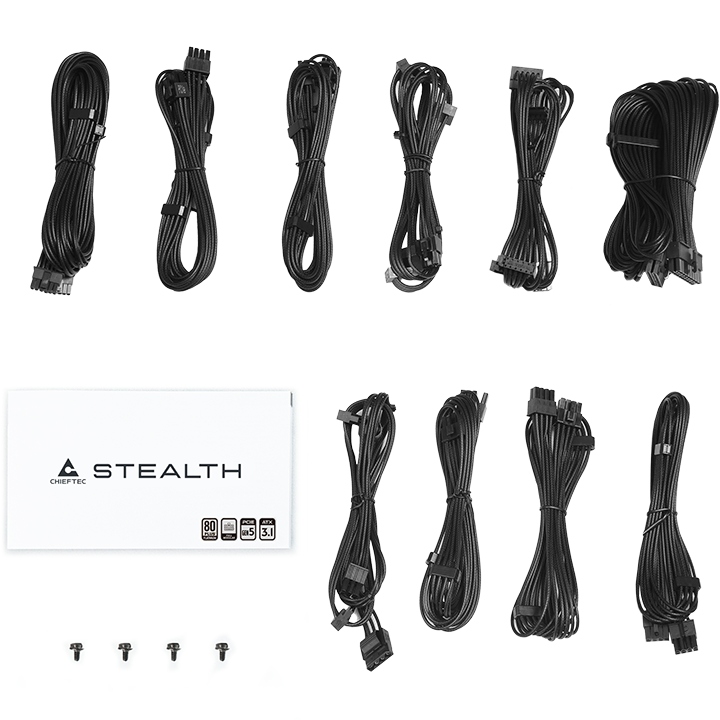

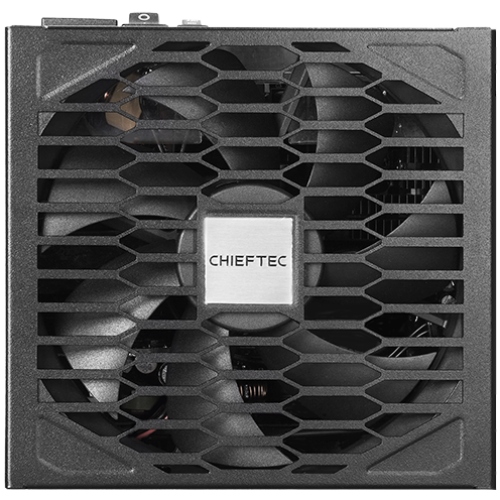

Its fully modular cabling lets you connect the leads needed for a particular system. The unit uses an LLC Half-Bridge converter with DC-to-DC technology and active power factor correction. A 135 mm fan with an FDB fluid dynamic bearing provides cooling. The unit measures 140 × 150 × 86 mm.
Connections listed in the cable specification include a 16-pin 12V-2x6, three PCIe 8-pin (6+2), eight SATA, and two SATA/Molex. The +12 V output is rated at 83.3 A, with a maximum combined output of 1000 W, for desktop builds that need this capacity and connector range.
