ID: 100022572

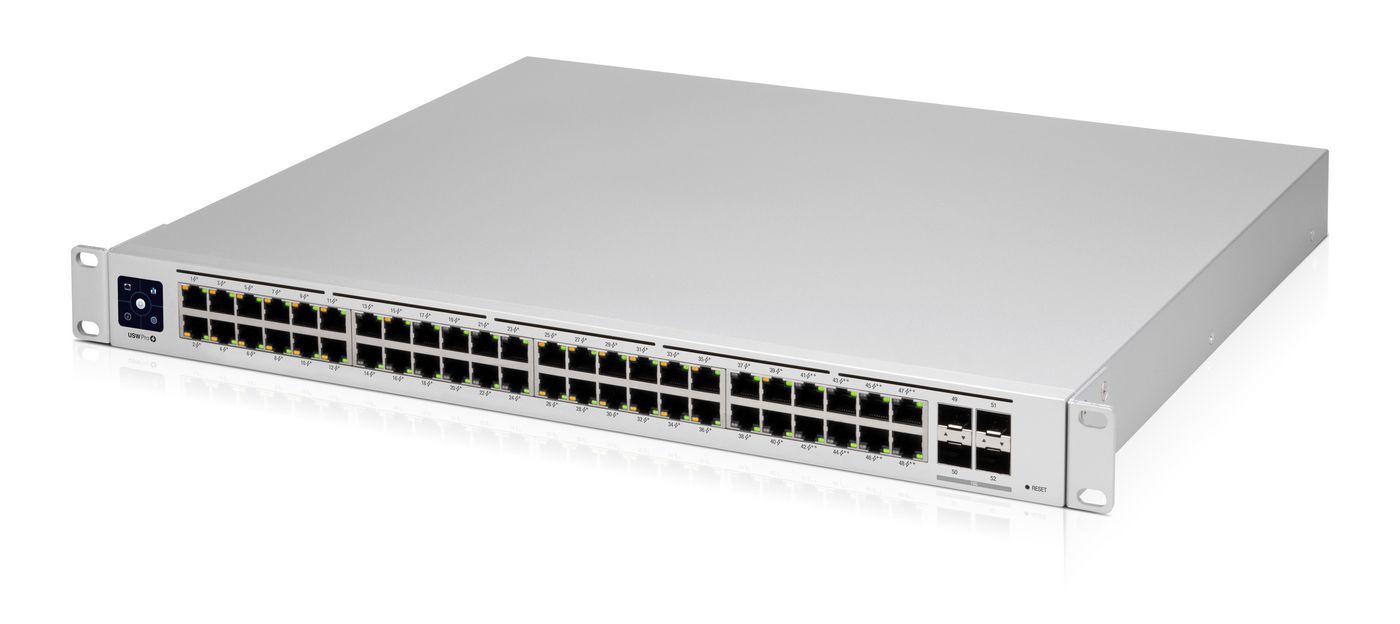

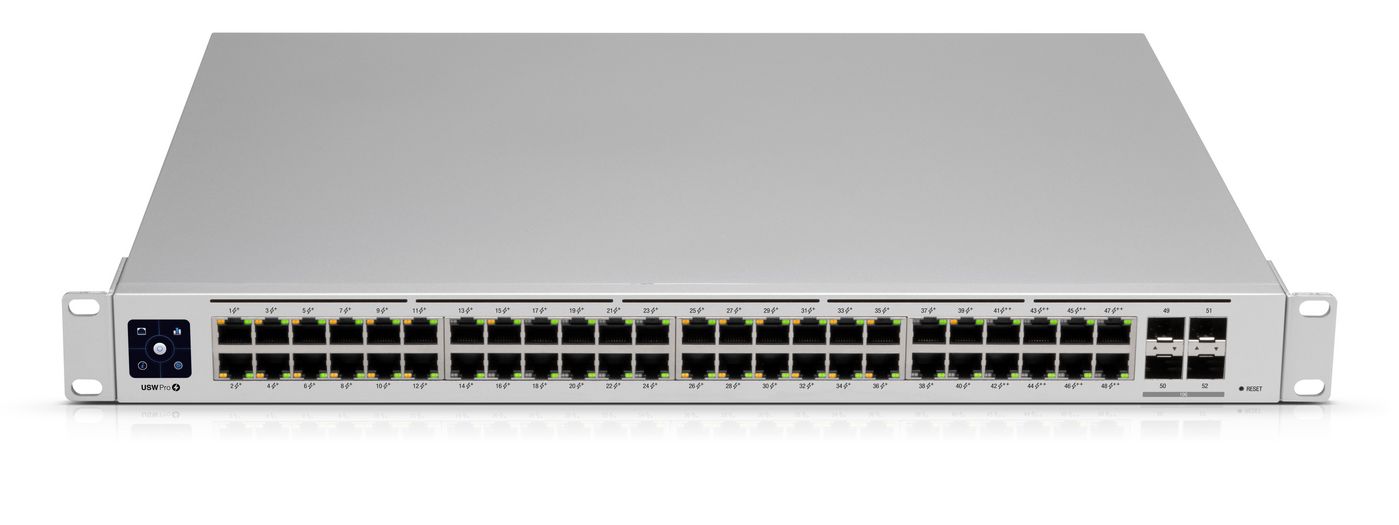

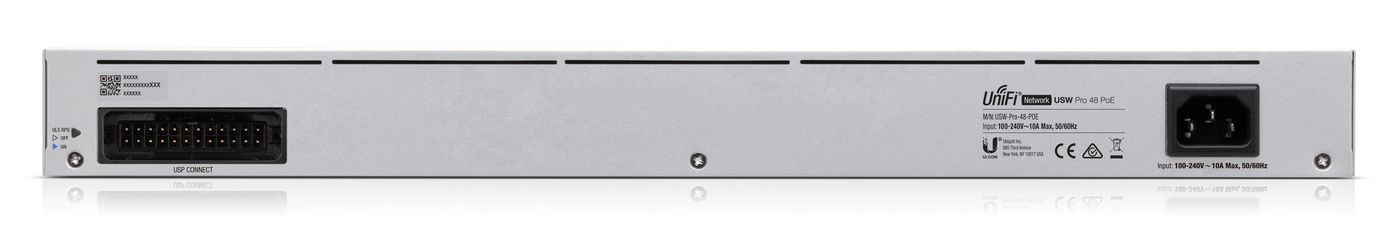

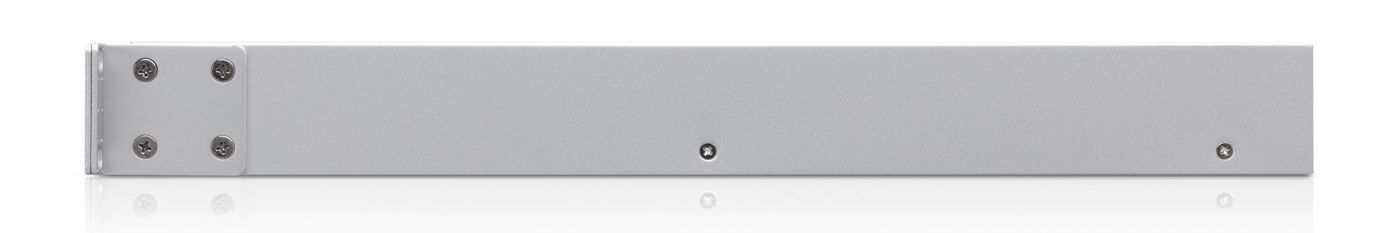

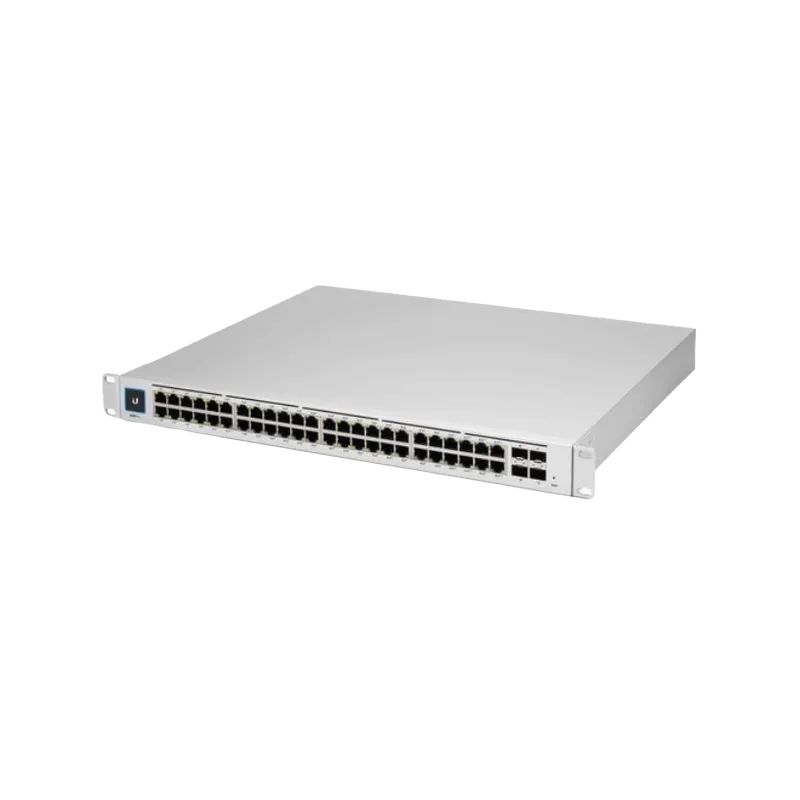

USW-Pro-48-POE Gen 2
OEM Number
EAN
817882027656
In stock: 50+
Delivery: 2–4 weeks
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Network
-
10G supportYes
-
Auto MDI/MDI-XYes
-
Auto-sensingYes
-
Flow control supportYes
-
Full duplexYes
-
Max PoE Wattage per PortPoE+: 32W, PoE++: 64W
-
Networking standardsIEEE 802.3af/IEEE 802.3at
-
PoE Ports40x PoE/PoE+ (Pins 1,2+; 3,6-), 8x PoE++ (Pair A 1,2+; 3,6- / Pair B 4,5+; 7,8-)
-
Port mirroringYes
-
Spanning tree protocolYes
-
Supported VLANs1,000
-
VLAN supportYes
Power
-
AC input frequency50 - 60
-
AC input voltage100 - 240
-
DC input voltage44 - 57
-
Input current11.54
-
Max Power Consumption (Excluding PoE)60W
-
Number of power supply units1
-
Power MethodUniversal AC Input (100-240V AC, 50/60 Hz), USP-RPS DC Input (52V DC 11.54A / 11.5V DC 5.22A)
-
Power supplyAC/DC, Internal, 660W
-
Power supply includedYes
Security
-
Authentication typeIEEE 802.1x/RADIUS
-
DHCP featuresDHCP server
Ports & interfaces
-
Basic switching RJ-45 Ethernet ports quantity48
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
-
Installed SFP+ modules quantity4
-
SFP+ module slots quantity4
General
-
Best forEnterprise LAN, Surveillance, WiFi Infrastructure
-
CertificationsCE, FCC, IC
-
Display1.3-inch color touchscreen
-
ESD/EMP ProtectionAir: ±16 kV, Contact: ±12 kV
-
Factory Reset ButtonYes
-
Forwarding rate130.944 Mpps
-
Layer 2 FeaturesIGMP snooping, STP/RSTP, port isolation, storm control, voice VLAN, port mirroring, LACP aggregation, multicast/broadcast rate limiting, MAC address blocking, flow control, 802.1X
-
Layer 3 FeaturesStatic routing, VLAN support (1,000 VLANs), inter-VLAN routing
-
LED indicatorsSystem status, RJ45 port link/activity/speed, SFP+ port link/activity, PoE status, RPS status
-
MAC Address Table Size16,000 entries
-
Model NameSwitch Pro 48 PoE
-
Operating Humidity10 to 90% non-condensing
-
Operating Temperature-5 to 40°C (23 to 104°F)
-
Product LineUniFi Pro
-
Product typeLayer 3 Managed PoE Switch
-
Security features802.1X port-based authentication, port isolation, MAC address blocking, storm control
-
Shock and VibrationETSI300-019-1.4 Standard
-
Total Available PoE600W
-
Total Non-Blocking Throughput88 Gbps
Vendor information
-
Brand NameUbiquiti
-
Warranty1
Design
-
CertificationCE, FCC, IC
-
Form factor1U
-
LED indicatorsActivity/Link/PoE/Speed/System
-
Product colourSilver
-
Rack mountingYes
Physical
-
Dimensions442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72 inches)
-
Enclosure materialSGCC steel
-
Form factor1U Rackmount
-
Weight6.3 kg (14 lb) with mounting brackets
Data transmission
-
Forwarding rate130.944
-
Jumbo frames supportYes
-
Static routeYes
-
Switching capacity176
-
Throughput88000
Storage
-
Management InterfaceEthernet In-Band
-
Networking Interfaces48x 10/100/1000 Mbps RJ45 ports, 4x 1/10G SFP+ ports
-
Switching capacity176 Gbps
Operational conditions
-
Operating relative humidity (H-H)10 - 90
-
Operating temperature (T-T)-5 - 40
Memory
-
PoE Voltage RangePoE: 44-57V, PoE+: 50-57V
-
Supported Voltage Range100-240V AC, 50/60 Hz
Power over Ethernet (PoE)
-
Power over Ethernet plus (PoE+) ports quantity40
-
Power over Ethernet (PoE)Yes
-
Power over Ethernet (PoE) power per port64
-
Total Power over Ethernet (PoE) budget600
Management features
-
Switch layerL2/L3
-
Switch typeManaged
