UPS R1500 G5 Input 1x C14

The HPE R1500 G5 Input 1x C14 (Q1L90A-RFB) is a rack UPS that supplies connected equipment with backup power. This listing identifies the international Q1L90A model.

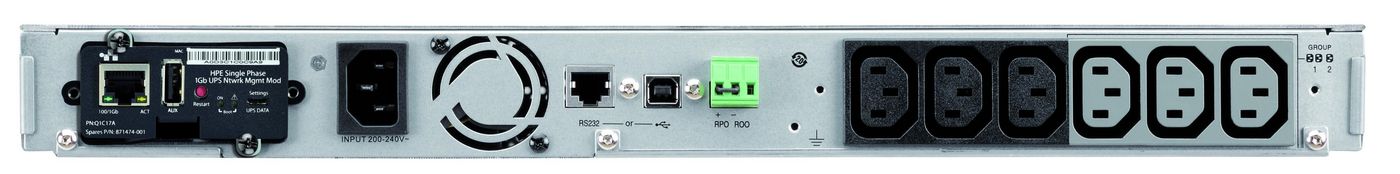

A C14 inlet accepts a country-specific power cord, while six IEC C13 output sockets in three groups provide connection points for equipment. Selectable settings of 220V, 230V and 240V deliver 1550 VA/1100 W, with 230V as the default. For 200V to 208V, the rating is 1395 VA/990 W.

Sine-wave output and voltage regulation are provided. The 36V battery string uses sealed, valve-regulated lead-acid batteries. Firmware-based overload sensing and control help manage power to connected equipment.
