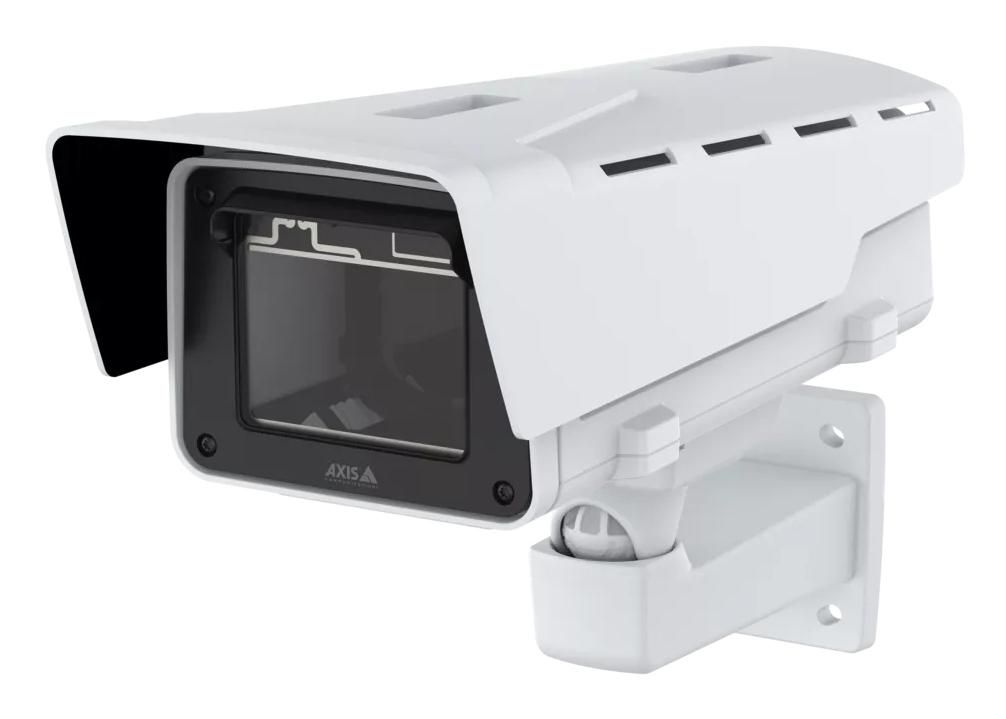

TQ1819-E Housing

The AXIS TQ1819-E Housing (03048-001) is an outdoor enclosure for selected AXIS box cameras, including cameras from the P13, Q16 and Q17 series. It provides a protective housing for compatible camera installations.

The aluminum and plastic casing carries IP66, IP67 and IK10 ratings. An integrated camera heater and fan, together with a carbon-nanotube window heater, are built into the enclosure. The stated operating temperature range is −40 °C to 60 °C.

Power can be supplied through PoE IEEE 802.3at Type 2 Class 4 or 10–28 VDC. The box includes an installation guide, connector kit, connector guard and AXIS TQ1003-E Wall Mount.
