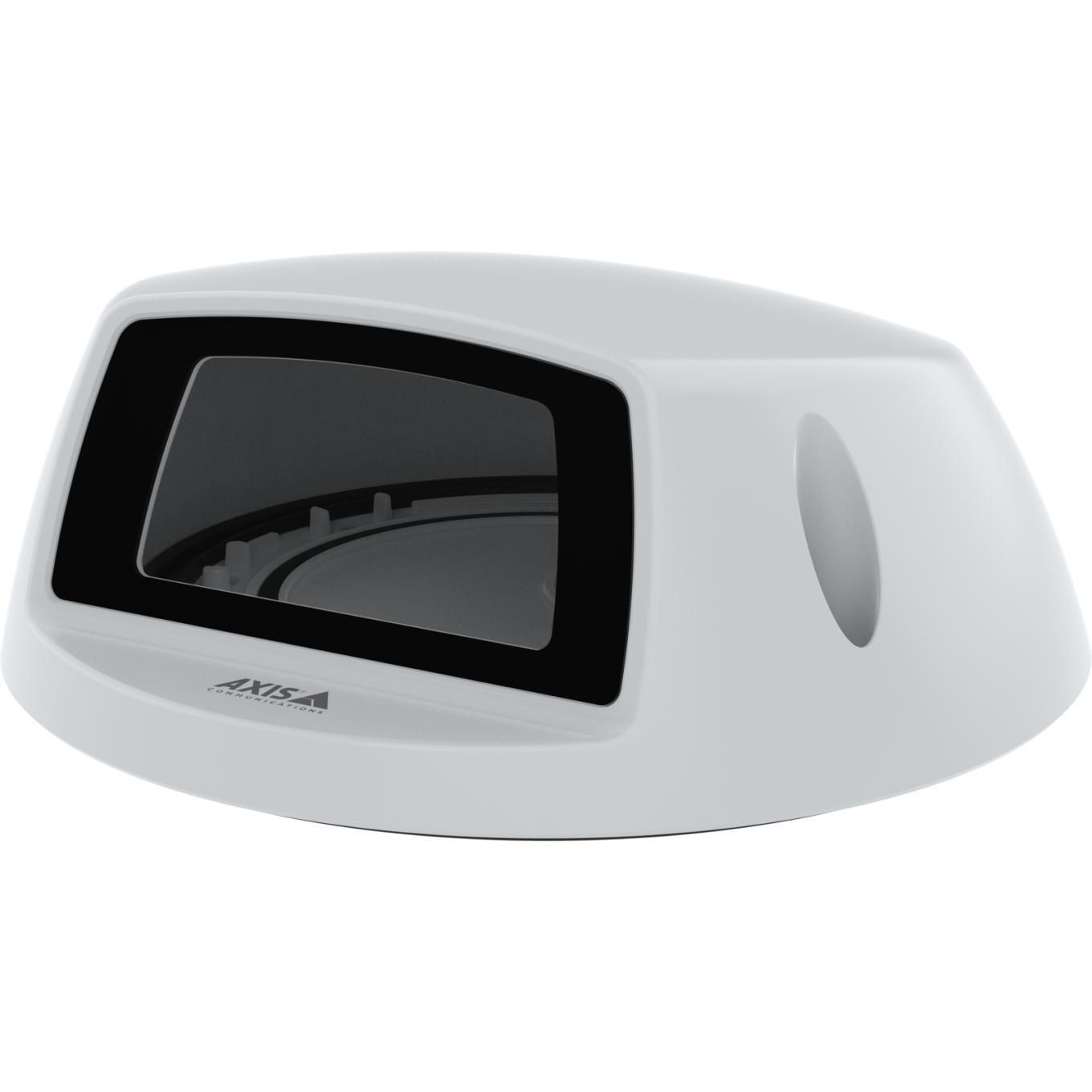

TP3826-E Housing

The AXIS TP3826-E Housing (02672-001) is an outdoor enclosure for selected Axis onboard cameras. It lets them be mounted on the exterior of vehicles, including buses, trams and emergency vehicles.

Its enclosure uses impact-resistant polymer without PVC, with an aluminum base plate. The specified protection ratings are IP66/IP67, IP6K9K, NEMA 250 Type 4X and IK09, for installation exposed to outdoor and vehicle operating conditions.

The listed operating temperature range is -30 °C to 55 °C. Compatible cameras shown by Axis include AXIS M3905-R, AXIS M3945-R and AXIS P3905-R Mk III.
