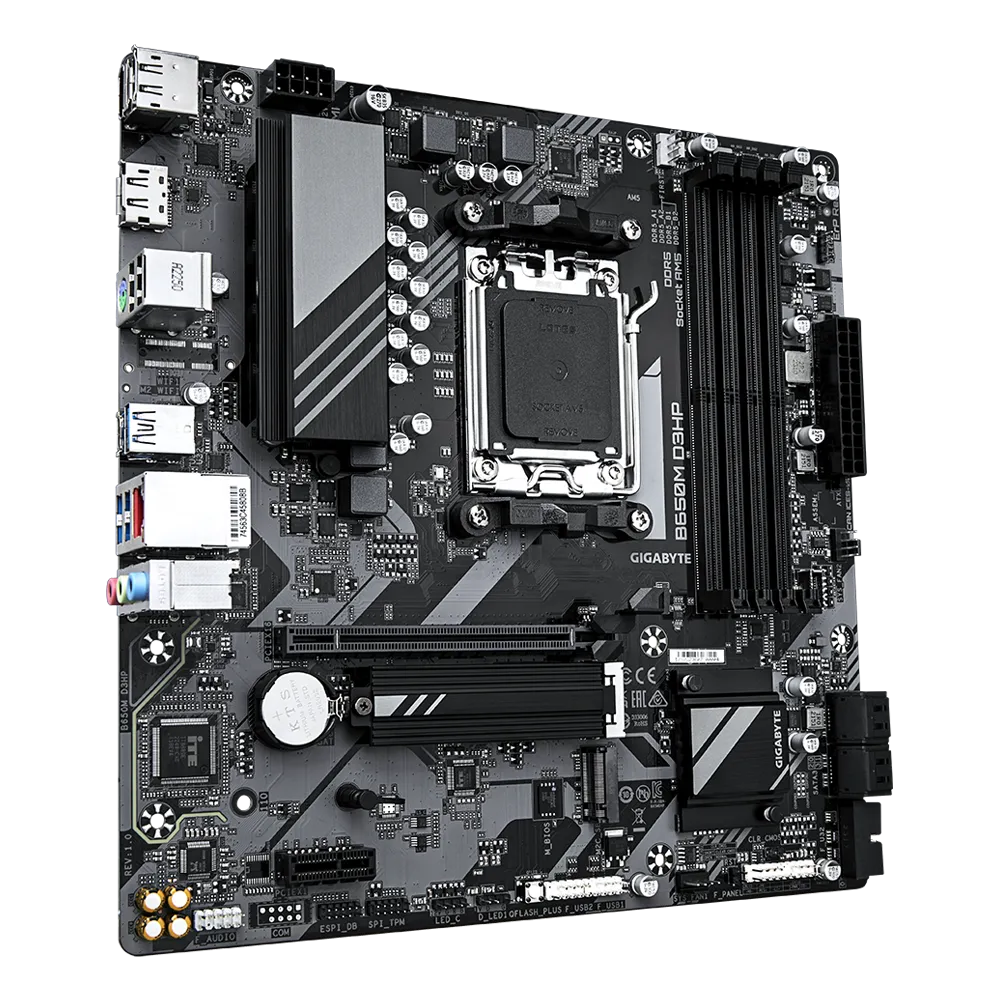

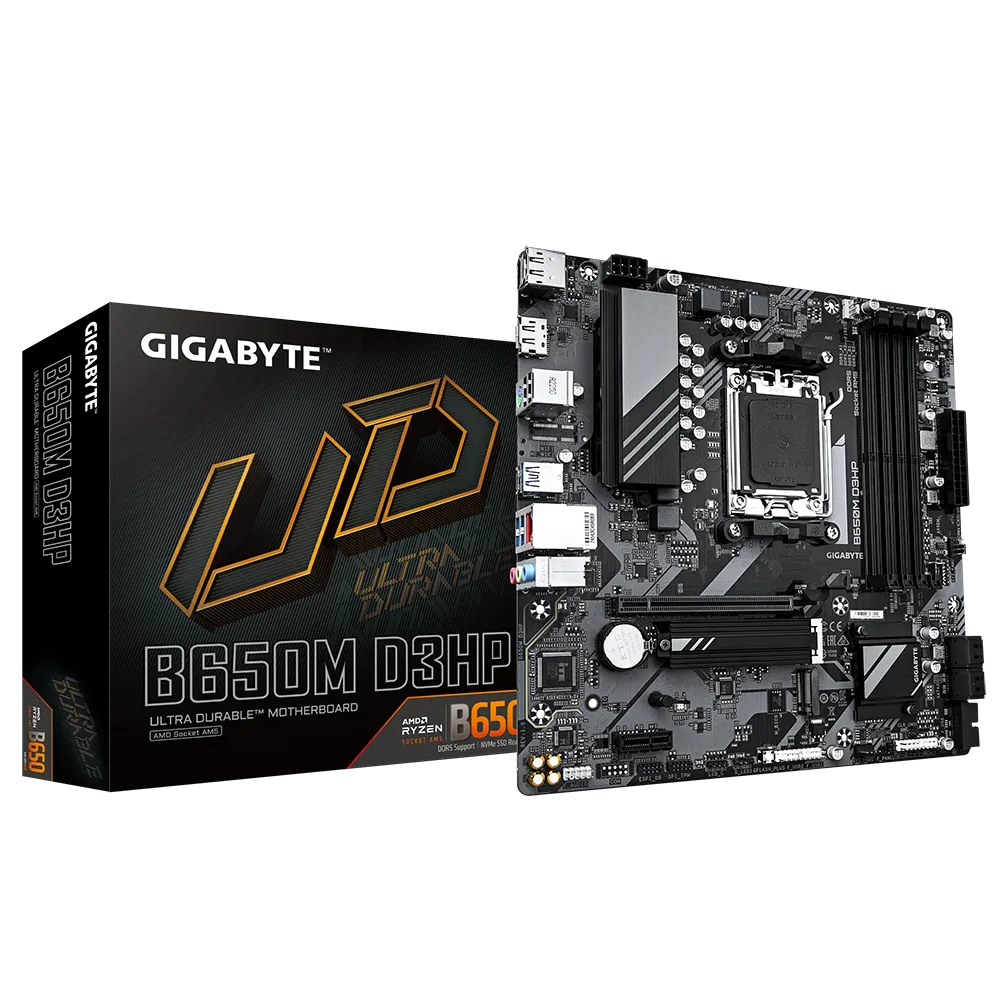

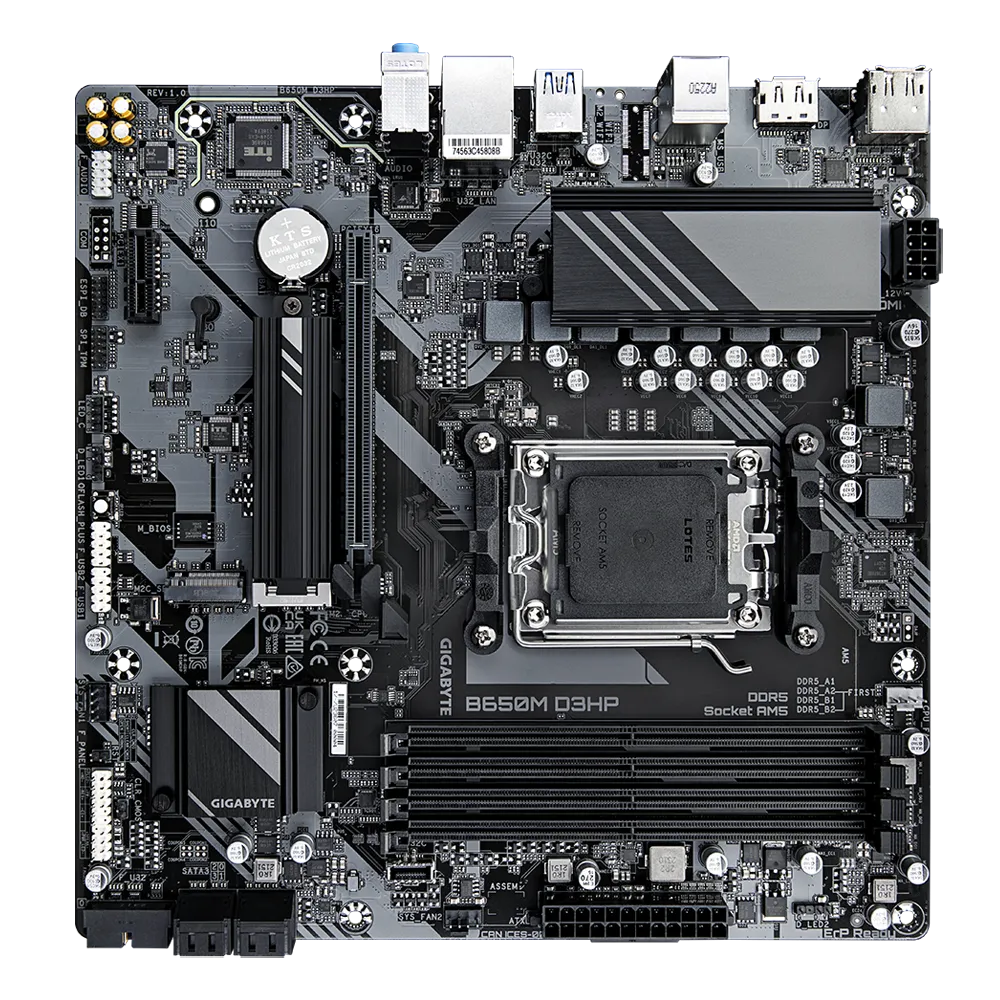

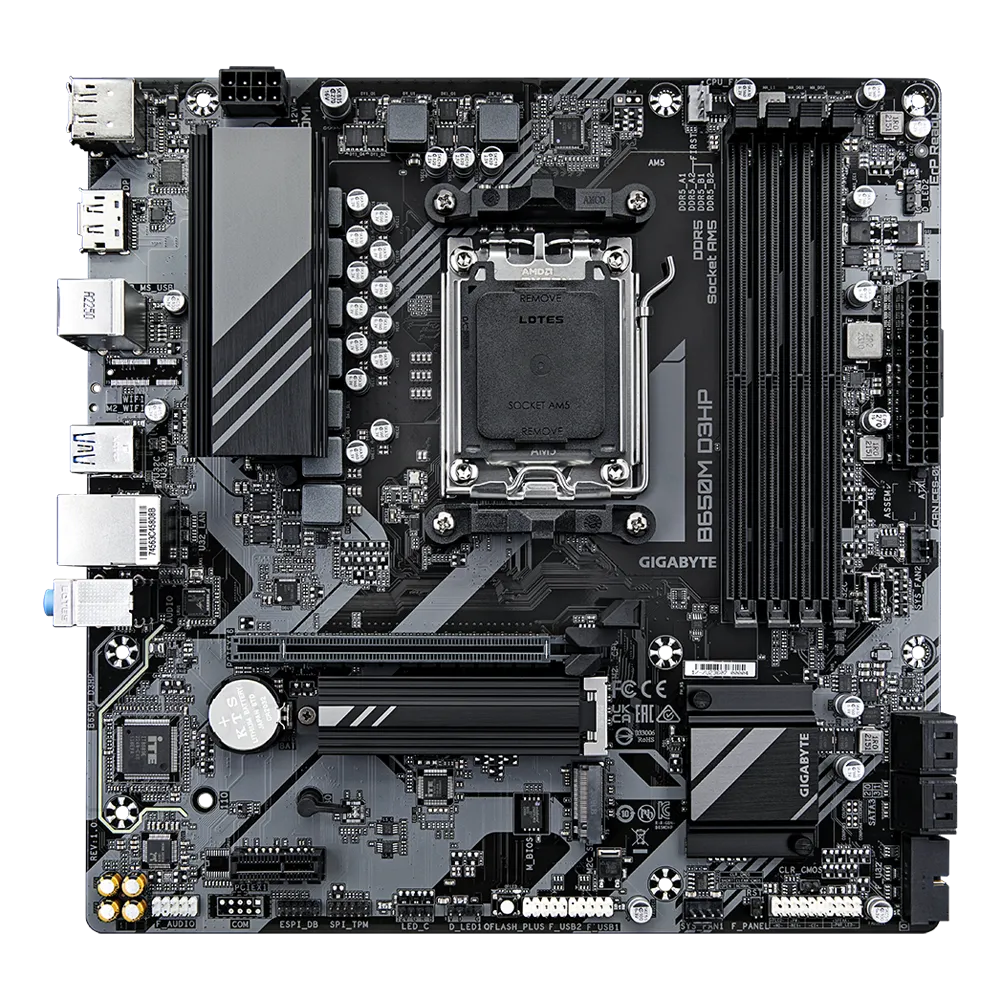

GIGABYTE B650M D3HP (Rev. 1.x) is a Micro ATX motherboard for desktop systems, built on the AMD B650 chipset with an AMD AM5 socket. The manufacturer lists support for Ryzen 7000, 8000 and 9000 Series processors.
Four DDR5 DIMM slots use dual-channel memory and support up to 256 GB. For storage, there are two M.2 PCIe 4.0 connectors and four SATA 6 Gb/s connectors. RAID 0, RAID 1 and RAID 10 are supported with NVMe and SATA storage, providing options to configure compatible drives together.

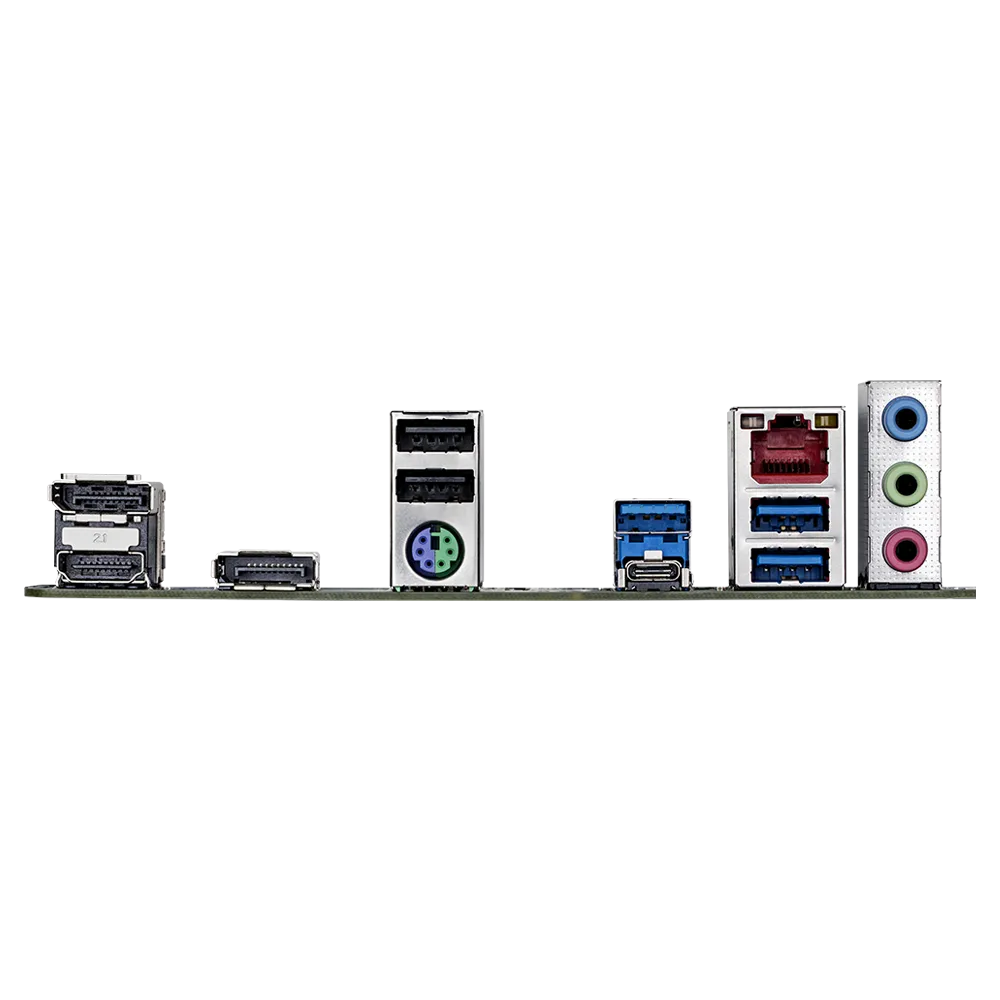

For expansion, the board has one PCIe x16 slot and one PCIe 3.0 x1 slot. The x16 slot’s operating mode depends on the installed processor. Rear connections include USB Type-C with USB 3.2 Gen 1, three USB 3.2 Gen 1 ports, two USB 2.0/1.1 ports, HDMI, two DisplayPort outputs and RJ-45. The network controller supports 2.5GbE for wired networking. Measuring 24.4 × 24.4 cm, the board fits Micro ATX desktop builds and offers several connections for storage and peripherals.
