ID: 100068207

PROTON SERIES 750W

EAN 4710713231290

In stock: 20-49 Delivery: 1–2 weeks

Price on request

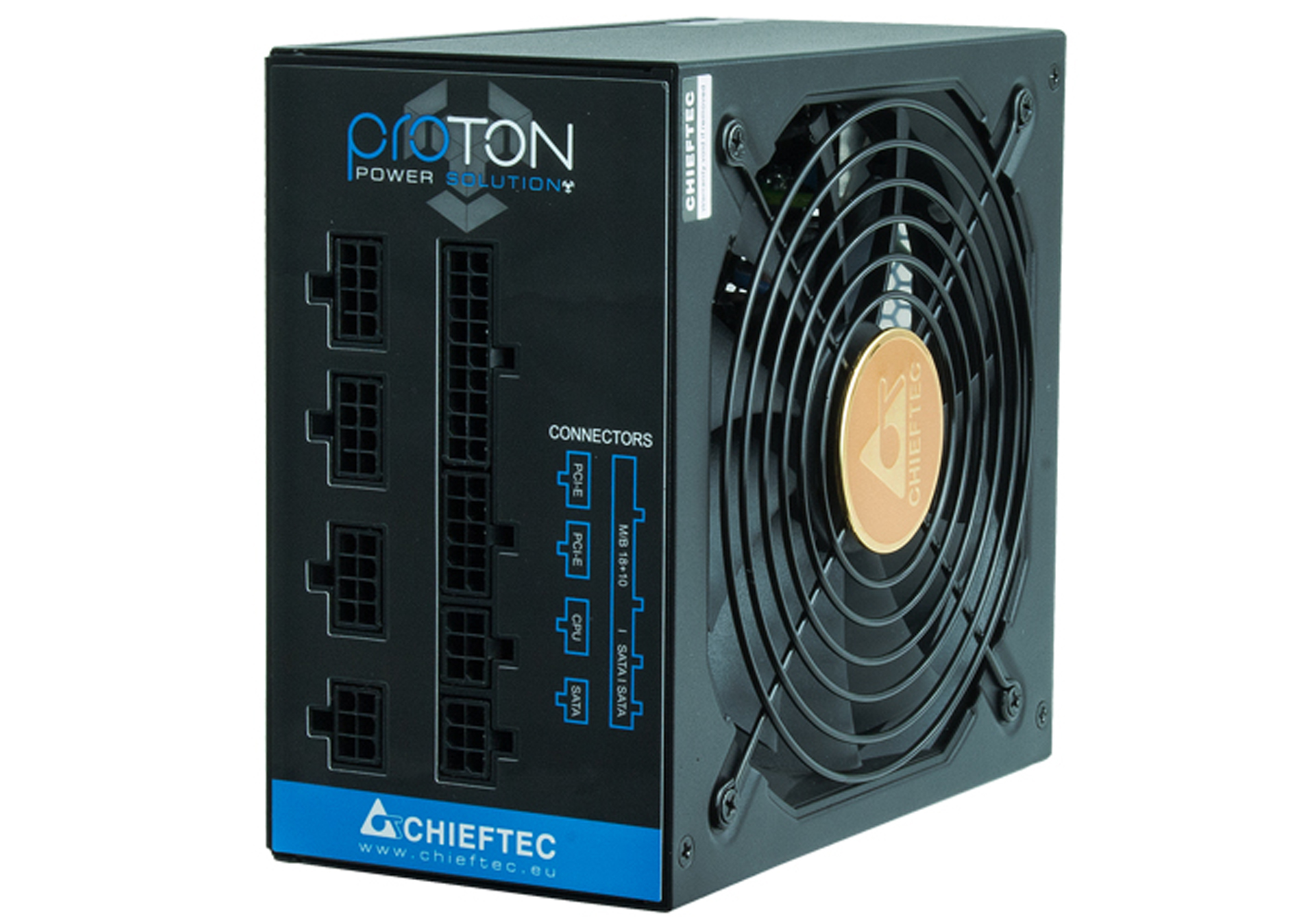

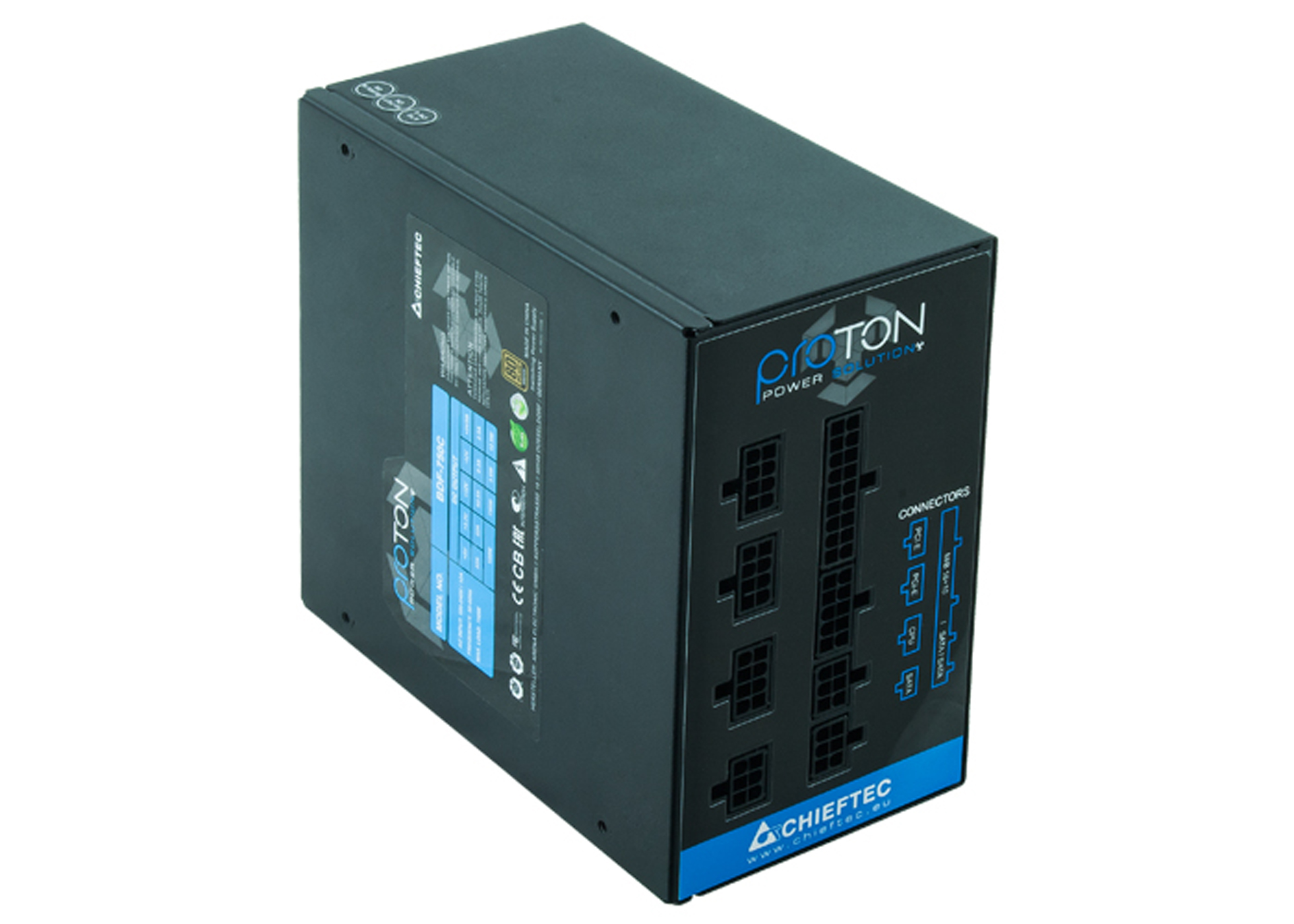

Chieftec Proton BDF-750C is a 750 W computer power supply for powering a desktop PC. The datasheet identifies this exact model by its article number and EAN, and specifies the ATX 12V 2.3 standard with a PS II form factor.

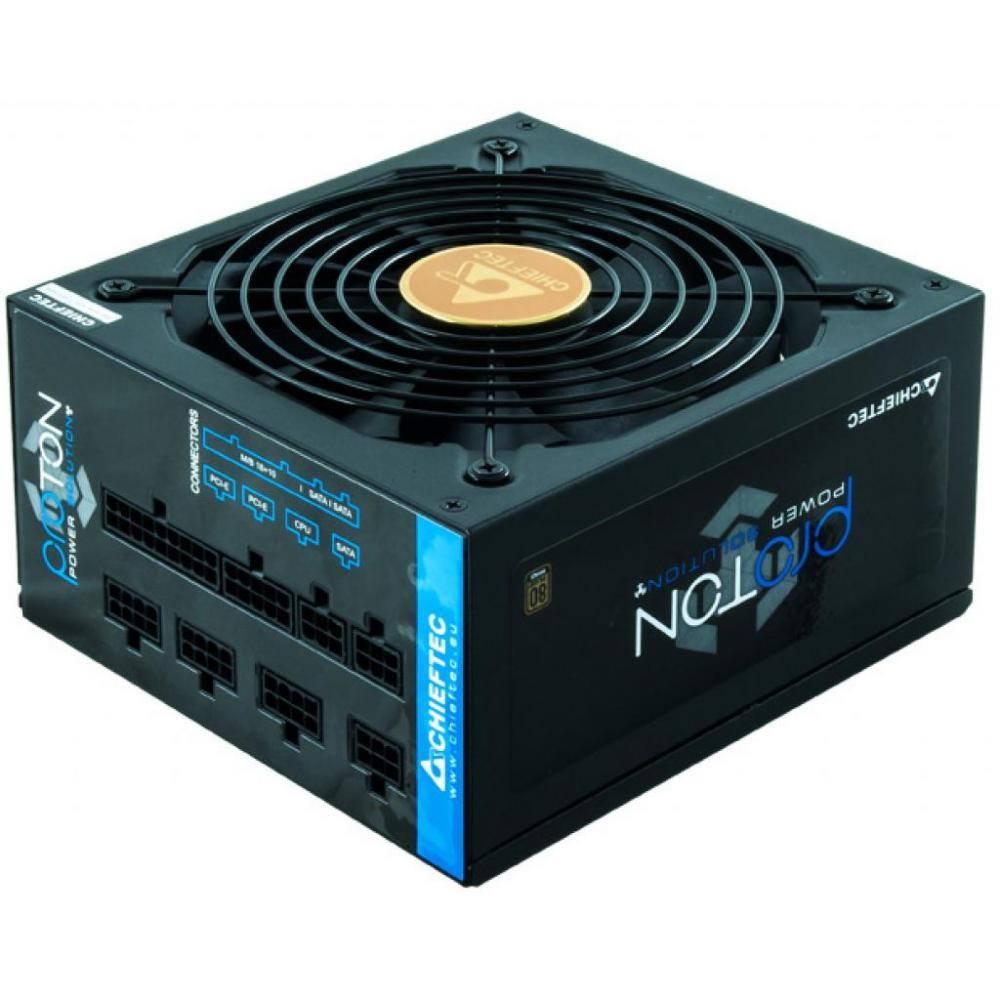

Its rated maximum combined output is 750 W. The listed AC input range is 100–240 V at 50–60 Hz. Active PFC and 80 PLUS Bronze efficiency are specified, while a 140 mm fan provides cooling. The dimensions are 160 × 150 × 87 mm, measured depth by width by height.

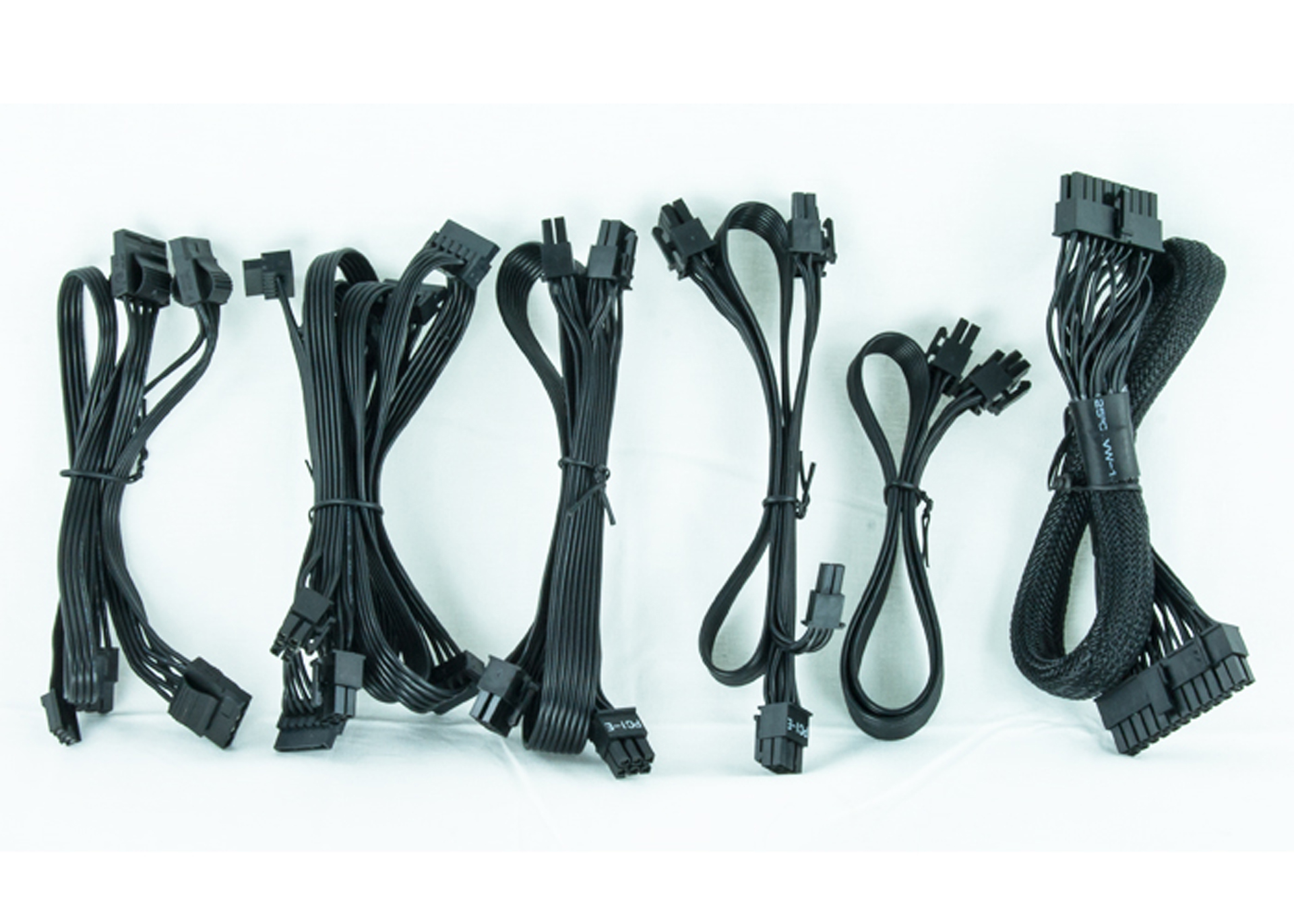

For component connections, the model has one 24-pin connector, six SATA connectors, three Molex connectors, four PCIe 6+2 connectors, one EPS 4+4 connector and one floppy connector.
