ID: 100114957

Power Supply Unit 600 W 20+4

EAN 0753263076496

In stock: 20-49 Delivery: 1–2 weeks

Price on request

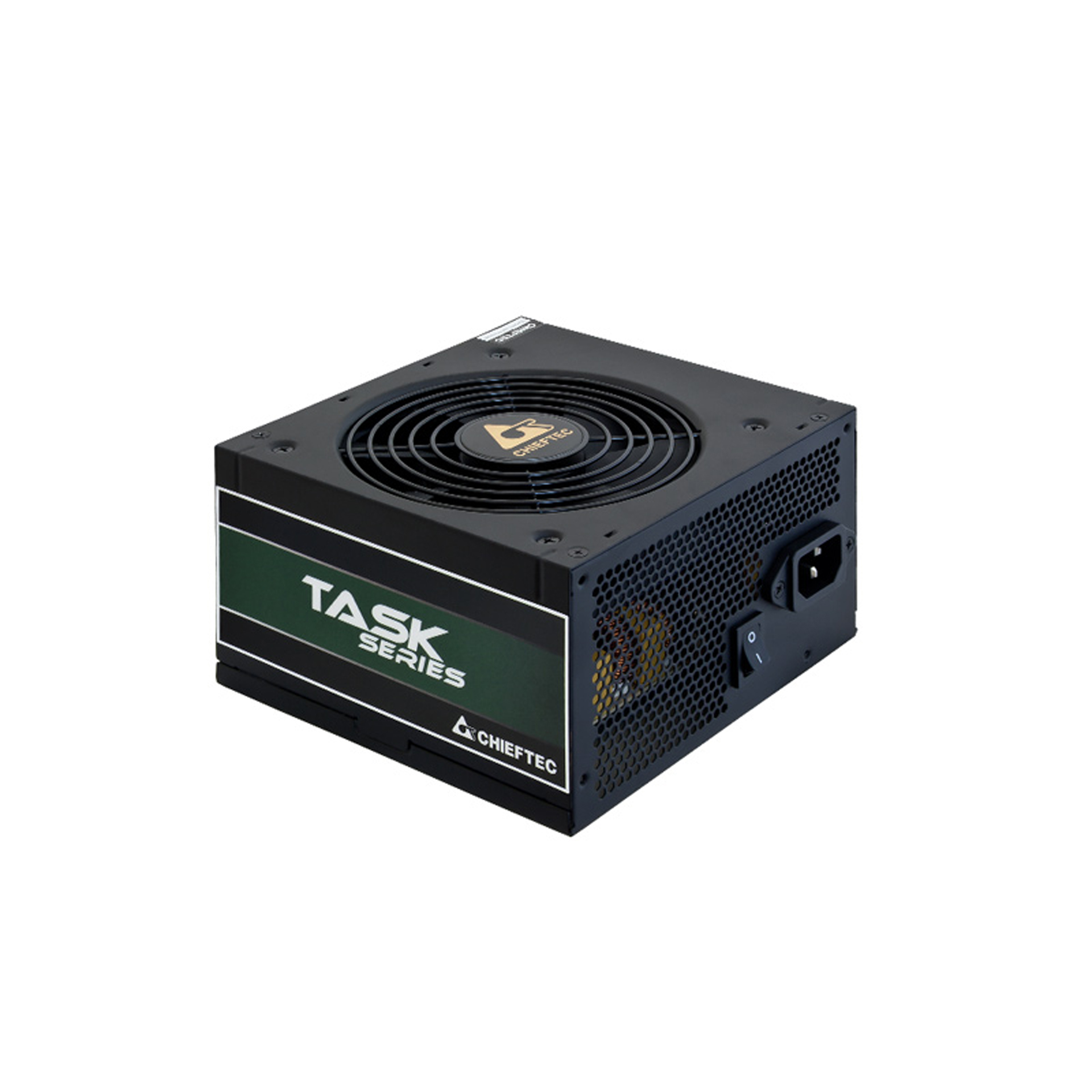

Chieftec TPS-600S is a 600 W desktop computer power supply from the Task Series. It follows the ATX 12V 2.3 specification and uses the PS II form factor.

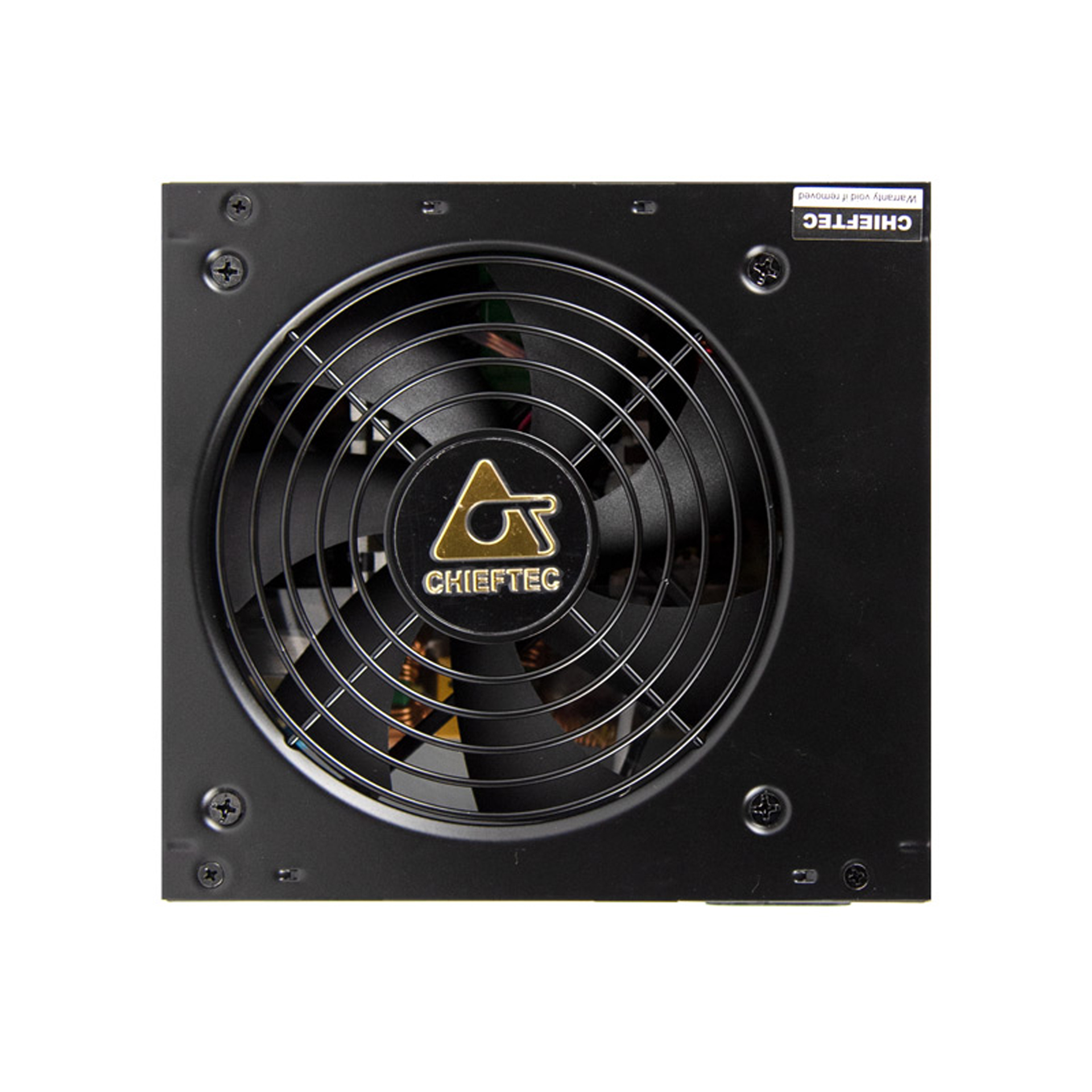

80 PLUS Bronze efficiency certification and active PFC are specified. A 120 mm fan provides cooling, and the enclosure measures 140 × 150 × 87 mm (D × W × H).

For system connections, it has a 24-pin (20+4) motherboard cable and an 8-pin EPS (4+4) cable, each 650 mm long. The connector set also includes two 8-pin PCI-E (6+2) connectors and five SATA connectors. Listed functions are AFC, OPP, OTP, OVP, SCP, SIP and UVP. The connections support powering compatible desktop PC components.
