Power Splitter cable, schuko

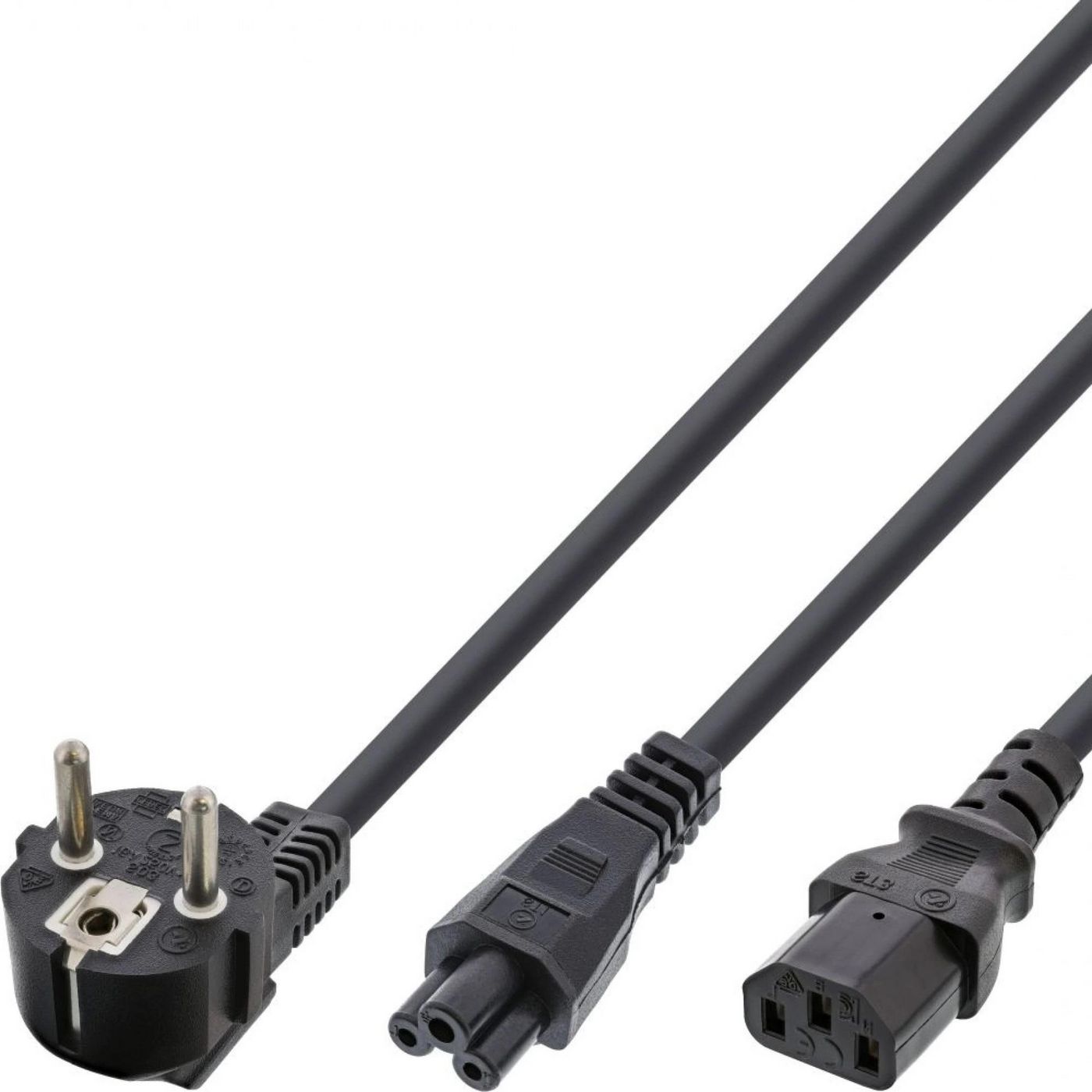

MicroConnect PE011418 is a Y-shaped power splitter cable that connects a Schuko E/F wall plug to two IEC outlets: one C13 and one C5. It lets compatible equipment with either connector share a single Schuko power connection.

The main cable section is 1.8 m long, with IEC branches approximately 0.2 m long. Its three copper conductors have a 1 mm² cross-section and a PVC jacket. The listed electrical ratings are 250 V and 10 A. The C5 outlet can be used, for example, with a notebook power supply; C13 serves equipment fitted with a matching inlet.
