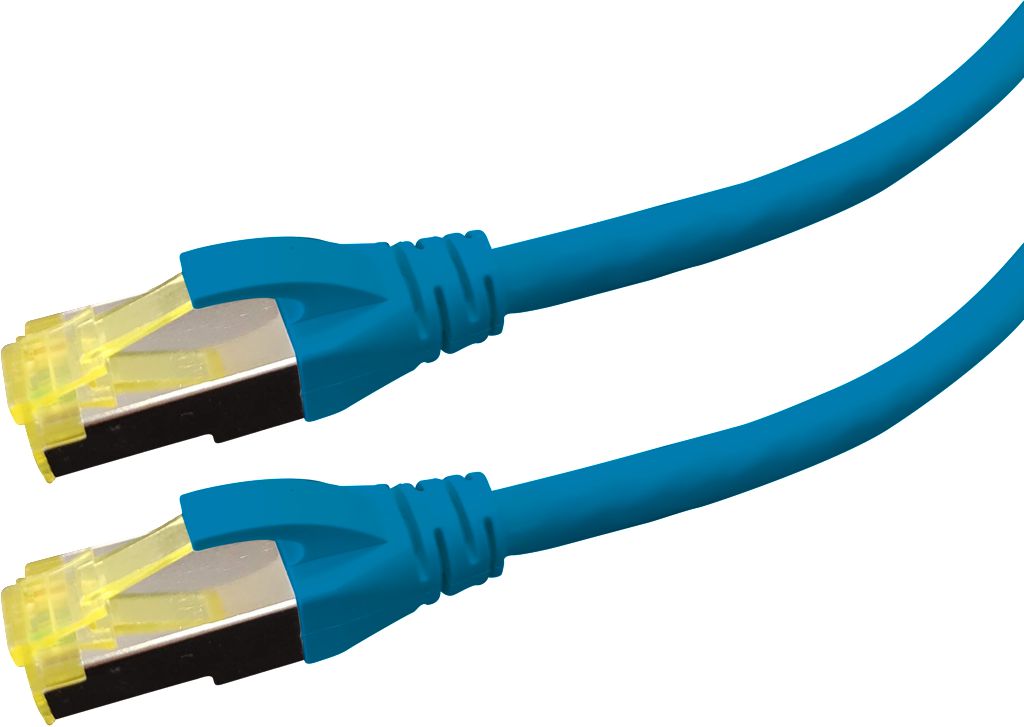

PATCH CABLE CAT6 S/FTP

Model: Logon Premium APR6050B

CAT6 S/FTP 26AWG 4PAIR LSOH Patch Cable 5m Blue

Specifications

CONSTRUCTION


Conductor Material: Stranded AWG 26 bare copper
Cable AWG: 7/0.16 mm
Shield Overlap: Aluminum/polyester ‰¥25%
Braid Shield Coverage: Aluminum Magnesium Alloy wire ‰¥40%
Insulations Materials: SKIN-FOAM- SKIN
Insulations Nom. Thickness: 0.26
Insulations Diameter: 1.02 (±0.05mm)
Outer Jacket: LSZH
Jacket Nom. Thickness: 0.5
Jacket Diameter: 6.2 (±0.30mm)
Lenght: 5 meter
Color: Blue


ELECTRONIC PERMORMANCE


Max. Conductor DC Resistance: 148 (Ω/km)
Min. Insulation Resistance: 5000 (Ω/km)
Dielectric Strength: DC-1KV/1 Min
1.0-250MHZ Characteristic Impedance: 100±15 (ohms)
1.0-500MHZ Delay Skew: ‰¤45 (ns/100m)
Pair to Ground Capacitance Unbalance: ‰¤330 (Pf/100m)
Resistance Unbalance between pairs: ‰¤4 (%)
Max Mutual Capacitance: 5.6 (nF/100m)
Before Aging Tensile Strength: ‰¥9 (Mpa)
Before Elongation: ‰¥100(%)
After Aging 100°C*24h*7d Tensile Strength: ‰¥75%
After Aging 100°C*24h*7d Before Elongation: ‰¥50
Velocity of Propagation NVP: 78%
