Motherboard Intel B760 Lga

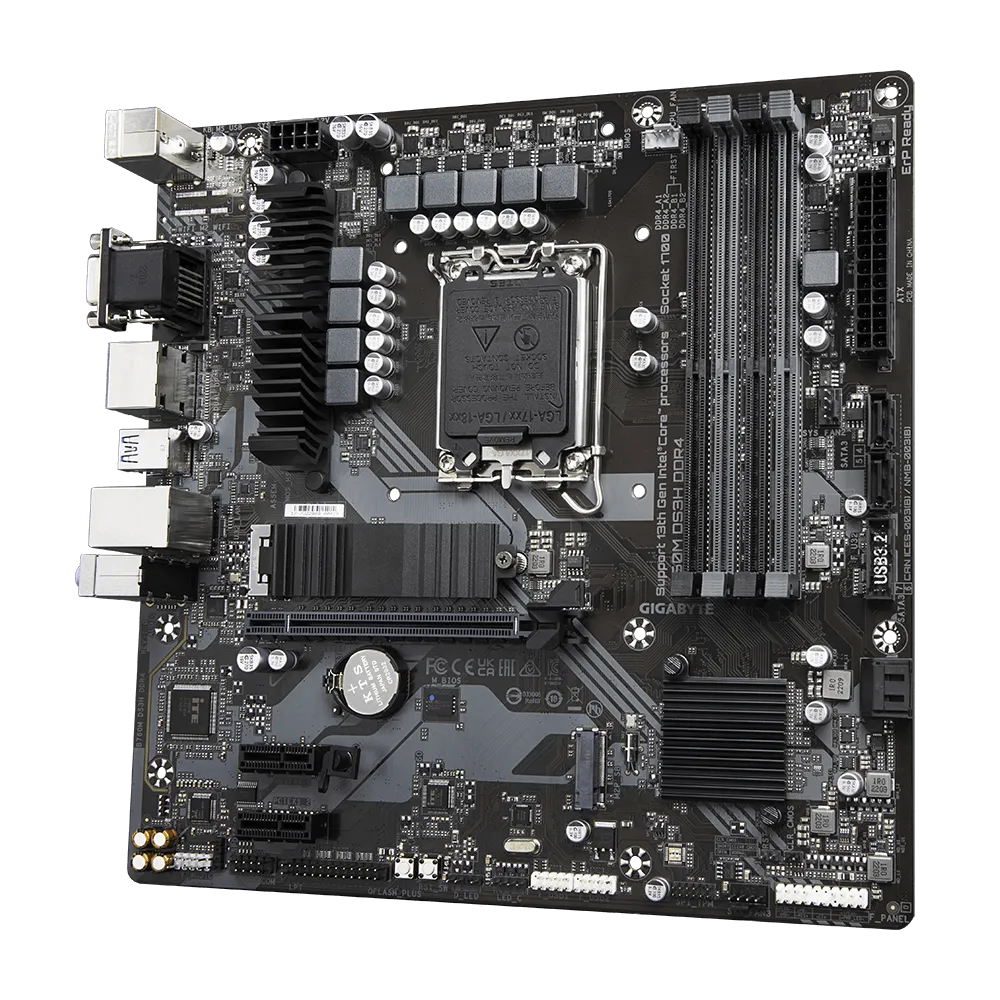

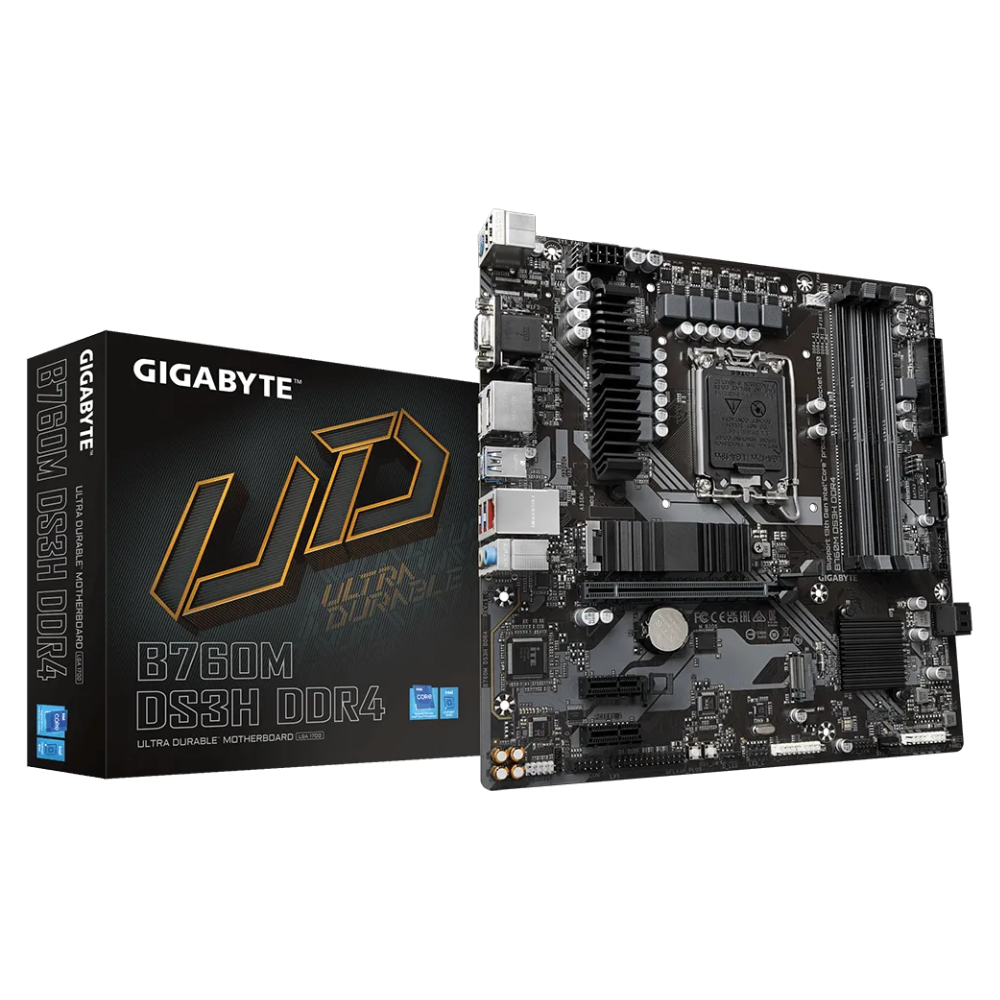

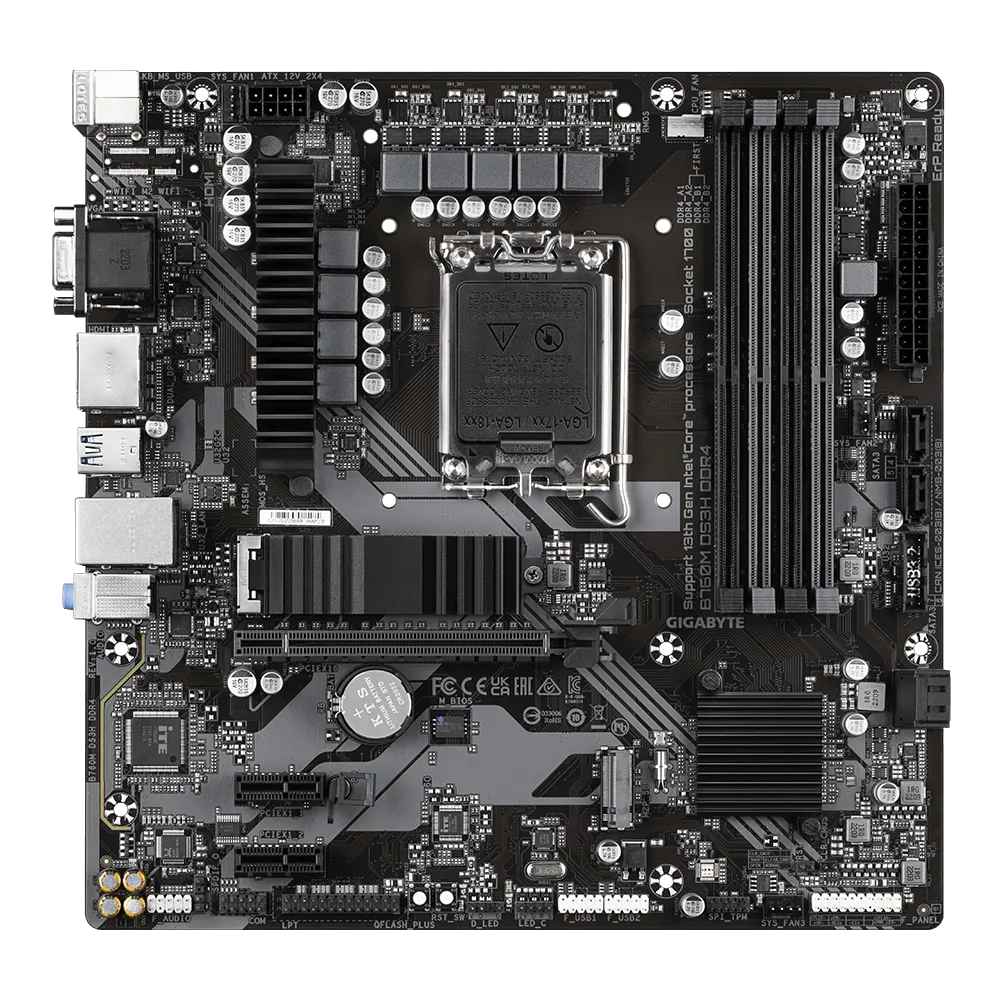

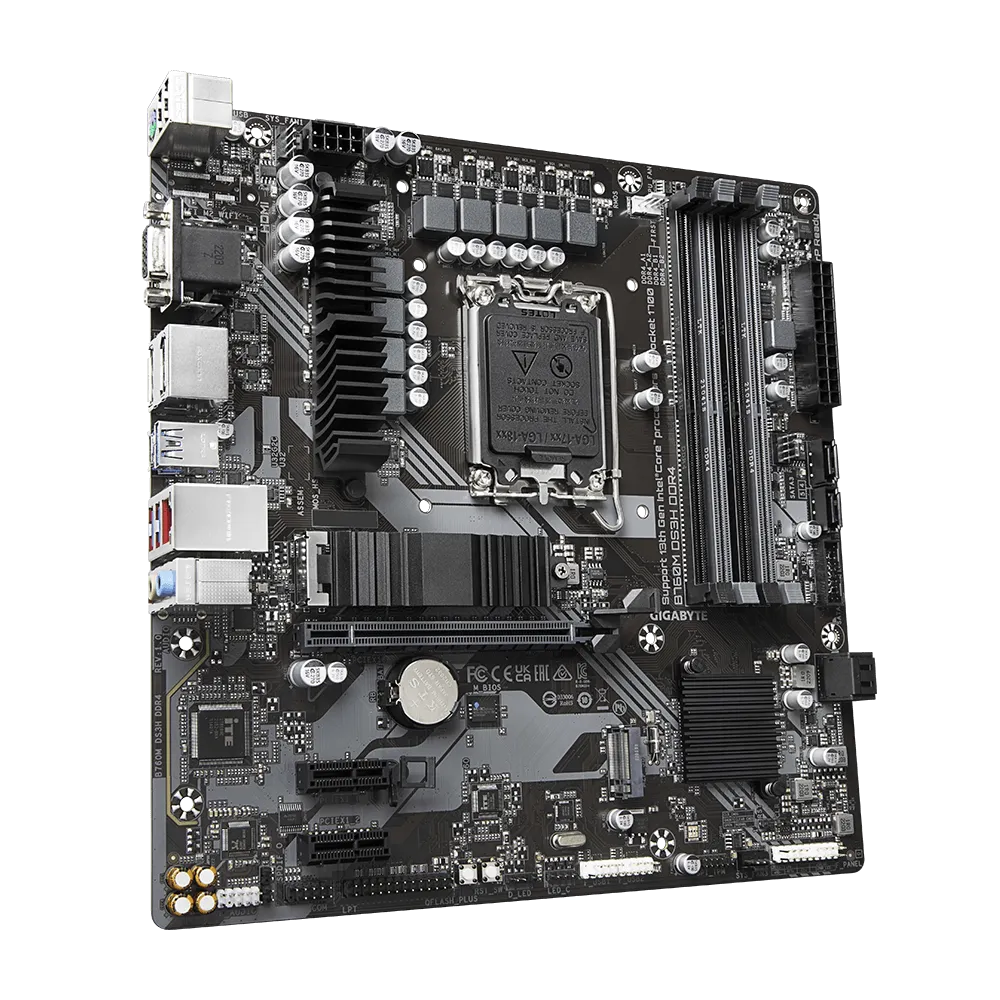

The GIGABYTE B760M DS3H DDR4 is a Micro ATX motherboard for desktop PC builds, with an Intel B760 Express chipset and an LGA1700 socket. It supports Intel Core, Pentium Gold and Celeron processors from the 12th, 13th and 14th generations.

Four DDR4 DIMM slots provide dual-channel memory support, up to 128 GB of RAM and XMP profiles. For storage, two M.2 sockets support 2280 SSDs with PCIe 4.0 x4/x2, alongside four SATA 6 Gb/s connectors.

For add-in cards, the board has one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. Its Realtek 2.5GbE network controller supports 2.5 Gbps, 1 Gbps and 100 Mbps connections.

The rear panel includes USB Type-C with USB 3.2 Gen 2 support, HDMI, DisplayPort and D-Sub. Display capabilities depend on the supported processor. Measuring 24.4 × 24.4 cm, the board fits the Micro ATX form factor for compatible desktop cases.
