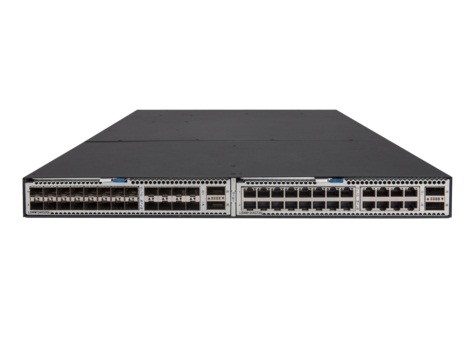

FF 5930-2Slot+2QSFP+Switch

Data Center ToR, Spine-Leaf, High Perf Computing

IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.1ae; IEEE 802.3ae; IEEE 802.1Q; IEEE 802.3az; IEEE 802.1ab (LLDP)

40 GbE

Flow control; layer 3 switching; layer 2 switching; DHCP support; VPN support; ARP support; VLAN support; auto-uplink (auto MDI/MDI-X); IGMP snooping; Syslog support; port mirroring; DiffServ support; IPv6 support; High Availability; sFlow; Spanning Tree Protocol (STP) support; Rapid Spanning Tree Protocol (RSTP) support; Multiple Spanning Tree Protocol (MSTP) support; Access Control List (ACL) support; Quality of Service (QoS); MLD snooping; STP Root Guard; Uni-Directional Link Detection (UDLD); Energy Efficient Ethernet; Management Information Base (MIB)

288K entries

JH178A

5% to 95% (non-condensing)

32°F to 113°F

FlexFabric 5930

Switch - 2 ports - L3 - Managed

Static; RIP; OSPF; BGP; IS-IS; MPLS

Yes for future proofing networks

1071 Mpps

17.32 in x 18.98 in x 1.72 in (WxDxH)

Rack-mountable 1U

1 GB

-40°F to 158°F

1.44 Tbps

AC 120/230 V (50/60 Hz)

Up to 9600 bytes

2 GB

Yes for simplified network management

2 x 40 Gigabit QSFP+ (uplink)

Not Supported

Included

1
