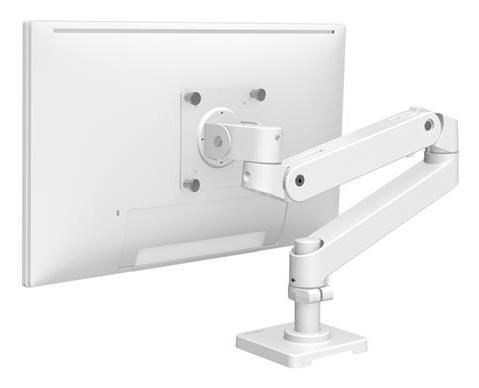

The Ergotron LX Pro Desk Monitor Arm, model 45-682-290, is a white monitor mount with a standard two-piece desk clamp. It lifts the screen clear of the work surface and lets you reposition it at a seated or shared workstation.
It supports displays weighing 1.8–10 kg with VESA MIS-D 100/75 patterns: 100 × 100 mm or 75 × 75 mm. The typical maximum screen diagonal is 34 inches, provided the monitor stays within the mount’s weight capacity. The arm offers 33 cm of lift and 85° of tilt, plus 180° of monitor pan and 360° of rotation. The base arm pans 360°, or 180° with the rotation stop engaged, and extends up to 65.6 cm.
The standard-clamp configuration includes the arm, extension, monitor pivot, two-piece desk clamp, 13.5 cm pole and attachment hardware. These adjustments help set the screen’s height, angle and orientation to suit the workstation.
