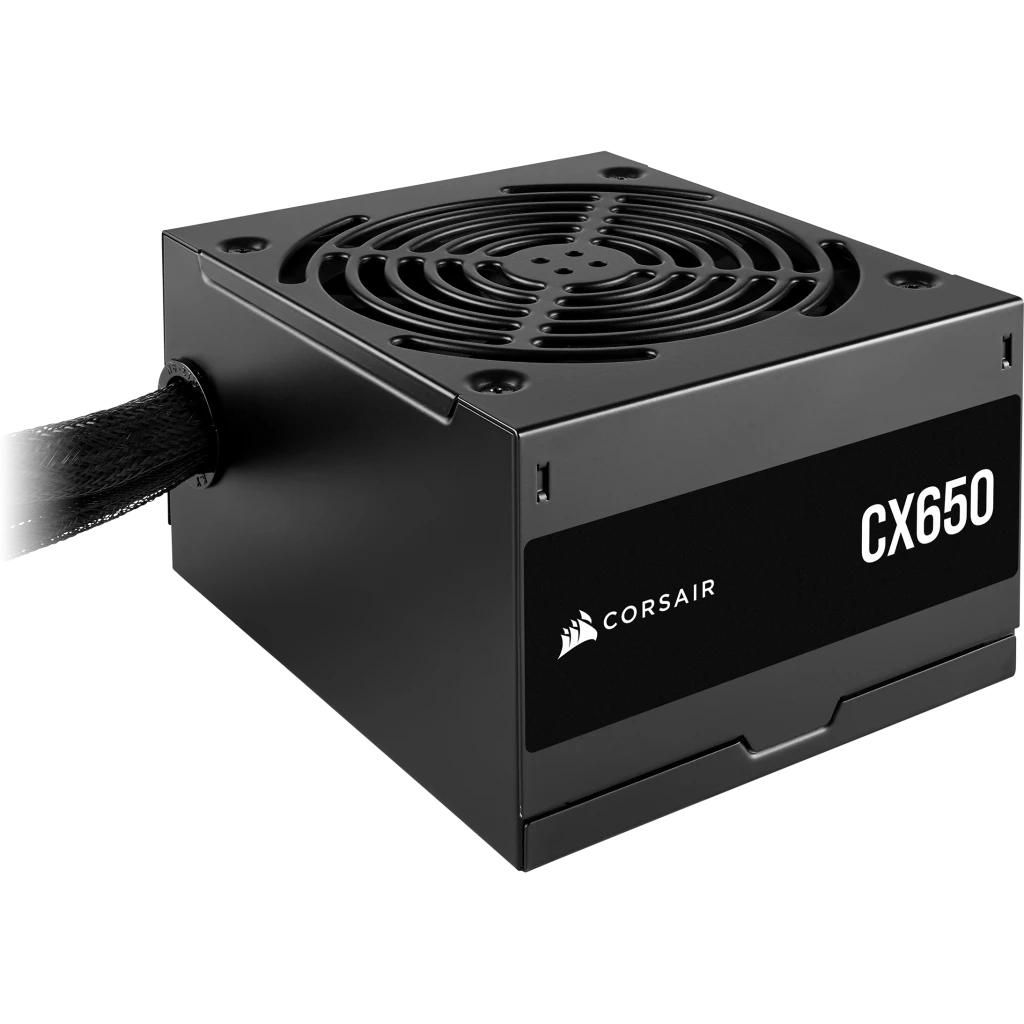

Cx Series Cx650 Power Supply

Corsair CX Series CX650 (CP-9020278-EU) is a non-modular ATX power supply for a desktop PC, rated for 650 W of continuous output. Its 80 PLUS Bronze rating and stated efficiency of up to 88% describe its power conversion performance.

A 120 mm thermally controlled fan adjusts its speed to the load, slowing down at lower loads for quieter operation. The casing is 125 mm long, a compact format for fitting into modern PC cases.

The fixed cable set includes a 24-pin ATX connector, an EPS/ATX12V 8-pin (4+4), two PCIe 8-pin (6+2) connectors, three SATA connectors and two PATA connectors.

Package contents: power supply, AC power cord, mounting screws and warranty documentation.
