Cat6a HIGH-FLEX S/FTP Outdoor

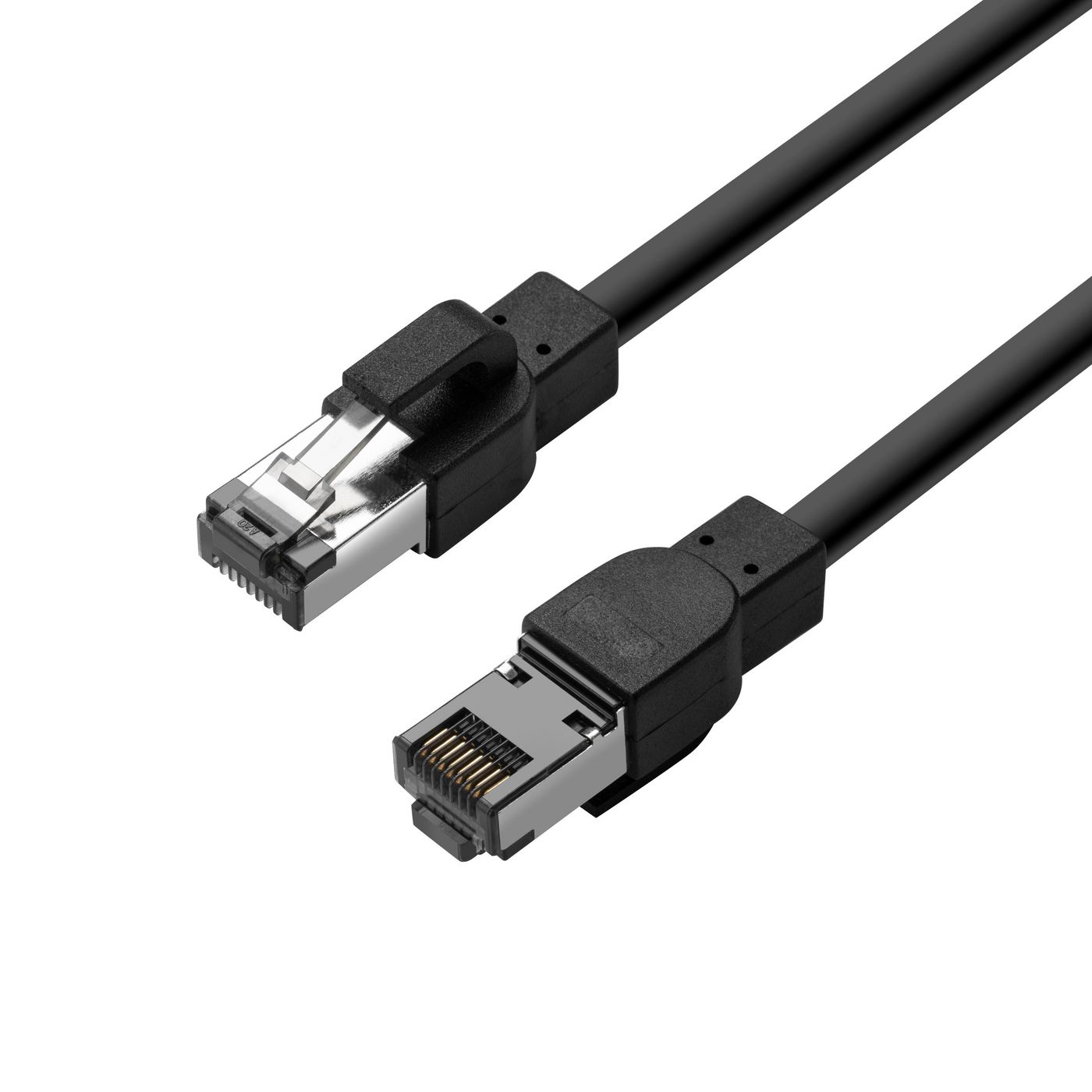

The Lanview HIGH-FLEX S/FTP Outdoor Cat 6a cable (LVN6075SOUT) provides a long network connection for voice, data or video equipment. At 75 m, it can link devices across a larger installation, with an RJ-45 plug at each end.

Its S/FTP construction is specified for 500 MHz bandwidth and data transfer up to 10,000 Mbit/s, supporting Class EA and 10G Ethernet. Copper conductors sized 26 AWG carry the signal, while the flexible PUR jacket is described as resistant to UV radiation, oil, acids, chemicals and hydrolysis. These jacket properties suit the cable for outdoor and demanding industrial environments.

The cable is specified for operation from -40 °C to 85 °C. Both molded RJ-45 plugs are supplied without latch protection, giving the cable a straightforward connector profile for network patching.
