OEM Number
EAN
5704174889359
In stock: 5-9
Delivery: 2–4 weeks

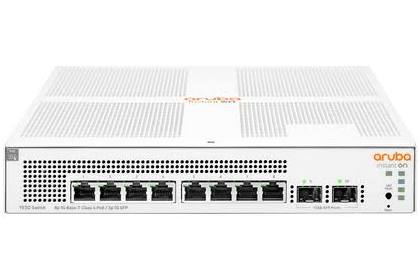

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
Features
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Features
Simplify Network Deployment and Management for Small Organizations
- The Aruba Instant On 1930 switch series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8G-, 24G-, and 48G-ports with and without class 4 PoE (i.e. PoE+).
- The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
- The Aruba Instant On 1930 switch series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1930 switch series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
- Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
Deliver High Perfomance
- The Aruba Instant On 1930 switch series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
- 8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
- The 24- and 48-port models include 1G/10G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Network
-
10G supportNo
-
Active link detectionYes
-
Auto MDI/MDI-XYes
-
Auto-sensingYes
-
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
-
Downlink Ports8x 10/100/1000BASE-T PoE+
-
Flow control supportYes
-
Full duplexYes
-
IP routingYes
-
Layer SupportLayer 2+ (static L3 routing)
-
Link aggregationYes
-
Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
-
Number of VLANs4093
-
Port mirroringYes
-
Rate limitingYes
-
Routing entries32
-
Spanning tree protocolYes
-
Total Ports10 (8x RJ45 + 2x SFP)
-
Uplink Ports2x 1GbE SFP
-
VLAN supportYes
Security
-
Access Control List (ACL)Yes
-
BPDU filtering/protectionYes
-
DHCP featuresDHCP client/DHCP snooping
-
IGMP snoopingYes
-
Loop protectionYes
-
SSH/SSL supportYes
Power
-
AC input frequency50 - 60
-
AC input voltage200 - 240
-
Input current0.2
-
Power consumptionMax 11W (idle 6.2W)
-
Power consumption (max)150.2
-
Power sourceAC
-
Power supply includedYes
General
-
ACLs50 IPv4/MAC (480 ACEs)
-
Best forSMB Branch, Retail PoE, Hospitality, Office, IoT.
-
FanFanless
-
Forwarding rate14.88 Mpps
-
ModelJL681A#ABA
-
Operating Temp32°F to 104°F (0-40°C)
-
Packet Buffer1.5 MB
-
PoE Budget124W
-
PoE StandardIEEE 802.3at Class 4
-
Product LineInstant On 1930
-
Product typeSmart-Managed Layer 2+ Ethernet Switch
-
Static Routes32 IPv4
-
VLANs256 (VID 2-4093)
Management features
-
ARP inspectionYes
-
Cloud-managedYes
-
Quality of Service (QoS) supportYes
-
Switch layerL2/L3/L4
-
Switch typeManaged
-
System event logYes
-
Web-based managementYes
Ports & interfaces
-
Basic switching RJ-45 Ethernet ports quantity8
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
-
Combo SFP ports quantity2
-
SFP module slots quantity2
Vendor information
-
Brand NameHewlett Packard Enterprise
-
Warranty1
Performance
-
Built-in processorYes
-
FanlessYes
-
Flash memory256
-
Internal memory512
-
Maximum SPAN sessions800
-
Memory typeSDRAM / Flash
-
Processor frequency800
-
Processor modelARM Cortex-A9
Physical
-
Dimensions10 x 10 x 1.73 in (1U)
-
Form factorDesktop, Wall, Rack-mount
-
Weight7.21 lb
Design
-
Form factor1U
-
Product colourWhite
-
Rack mountingYes
-
StackableYes
Data transmission
-
Jumbo frames9216
-
Jumbo frames supportYes
-
Latency (10-100 Mbps)5.2
-
Latency (1 Gbps)3
-
MAC address table8000
-
Packet buffer memory1.5
-
Switching capacity20
-
Throughput14.88
Memory
-
Memory512 MB SDRAM, 256 MB flash
Multicast features
-
Multicast supportYes
Operational conditions
-
Operating altitude0 - 3000
-
Operating relative humidity (H-H)15 - 95
-
Operating temperature (T-T)0 - 40
-
Storage relative humidity (H-H)15 - 95
-
Storage temperature (T-T)-40 - 70
Power over Ethernet (PoE)
-
Power over Ethernet (PoE)Yes
-
Total Power over Ethernet (PoE) budget124
Processor
-
ProcessorARM Cortex-A9 @ 800 MHz
Storage
-
Switching capacity20 Gbps
