OEM Number
EAN
790069420337
This product is discontinued
Unfortunately, the product is out of stock.

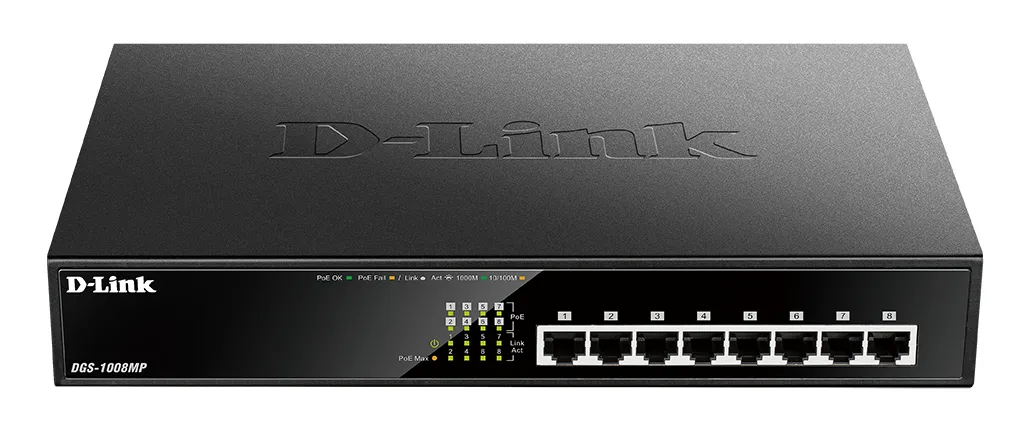

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
Power
-
AC input frequency50 - 60
-
AC input voltage100 - 240
-
Power consumption (typical)13.5
-
Power SuppliesAC 100-240V built-in power supply
Network
-
Auto MDI/MDI-XYes
-
Ethernet Speed10/100/1000 Mbps; Full/Half-duplex
-
Full duplexYes
-
Networking standardsIEEE 802.3ab/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
-
Network Ports8 x 10/100/1000 Mbps Gigabit Ethernet PoE ports
-
Supported protocolsIEEE 802.3i; 802.3u; 802.3ab; 802.3at; 802.3az; 802.3x
General
-
Auto-NegotiationANSI/IEEE 802.3 NWay auto-negotiation; Auto MDI/MDI-X
-
Best forSMB Offices, Surveillance, Wireless Networks
-
Compliance CertificationsRoHS compliant; CE Class A; FCC Class A; VCCI Class A; cUL; CB; LVD; CCC; BSMI
-
Flow ControlIEEE 802.3x Flow Control
-
MAC address table8K entries per device
-
ModelDGS-1008MP
-
Mounting typeRack-mountable
-
Operating Humidity0% to 95% RH non-condensing
-
Operating Temperature0 to 40°C
-
PoE BudgetTotal 140W; Per port maximum 30W IEEE 802.3at
-
Product LineGreen Ethernet Series
-
Product typeUnmanaged PoE Switch
-
Status LEDsPower, Link/Activity, Speed, PoE status per port
-
TechnologyD-Link Green 3.0; IEEE 802.3az EEE
-
Transmission MethodStore-and-forward
Ports & interfaces
-
Basic switching RJ-45 Ethernet ports quantity8
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
-
Installed SFP modules quantity0
Vendor information
-
Brand NameD-Link
-
Warranty1
Physical
-
Dimensions280 x 180 x 44 mm
-
Form factor11-inch Desktop/Rackmount; 1U height; Metal casing
-
Weight1.8 kg
Design
-
Form factor1U
-
LED indicatorsYes
-
Product colourBlack
-
Rack mountingYes
Data transmission
-
MAC address table8000
-
Packet buffer memory0.192
-
Packet forwarding rate (100 Mbps)148800
-
Packet forwarding rate (10 Mbps)1488000
-
Packet forwarding rate (1 Gbps)14880
-
Store-and-forwardYes
-
Switching capacity16
Storage
-
Management InterfacePlug-and-play; No management required
-
Storage Humidity5% to 95% RH non-condensing
-
Storage Temperature-10 to 70°C
-
Switching capacity16 Gbps switching fabric
Technical details
-
Master (outer) cases per pallet (air)36
-
Master (outer) cases per pallet (sea)36
-
Pallet gross length110
-
Pallet gross weight (air)563800
-
Pallet gross weight (sea)563800
-
Pallet gross width120
-
Pallet height (air)193.5
-
Pallet height (sea)193.5
-
Products per pallet (air)180
-
Products per pallet (sea)180
-
Products per shipping (inner) case5
-
Shipping (inner) case gross weight15300, 15.3
-
Shipping (inner) case height28.5
-
Shipping (inner) case length54.5
-
Shipping (inner) case net weight14250
-
Shipping (inner) case width40.6
Operational conditions
-
Operating relative humidity (H-H)0 - 95
-
Operating temperature (T-T)0 - 40
-
Storage relative humidity (H-H)5 - 95
-
Storage temperature (T-T)-10 - 70
Memory
-
Packet buffer memory128 KB per device
Power over Ethernet (PoE)
-
Power over Ethernet plus (PoE+) ports quantity8
-
Power over Ethernet (PoE)Yes
-
Total Power over Ethernet (PoE) budget140
Management features
-
Switch typeUnmanaged
