7-in-1 5G Dome Blk -Lse Ext

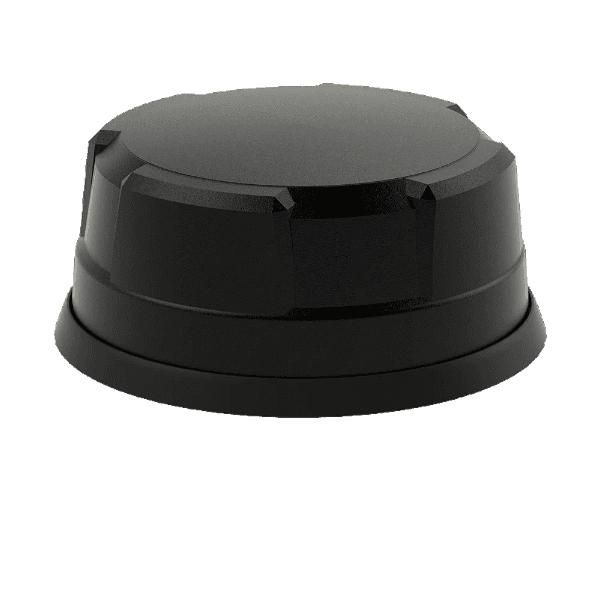

Panorama Antennas LG-IN2445-LC is a black Mako dome antenna combining cellular, Wi-Fi and GPS/GNSS functions in one housing. Its configuration provides 4×4 MiMo for 4G/5G cellular, 2×2 MiMo Wi-Fi and one GPS/GNSS module.

The cellular elements cover 617–960 MHz and 1710–6000 MHz; Wi-Fi operates at 2.4 and 5.0 GHz. The GPS/GNSS module has an integrated LNA with 26 dB gain and supports GPS, GLONASS, Galileo, QZSS and Compass.

For this LC version, 5 m cables are supplied loose, with SMA male connectors for cellular and GPS and reverse-polarity SMA connectors for Wi-Fi. Designed for panel mounting on conductive or non-conductive panels, the dome brings these communication and positioning links together in one unit.
