ID: 102359532

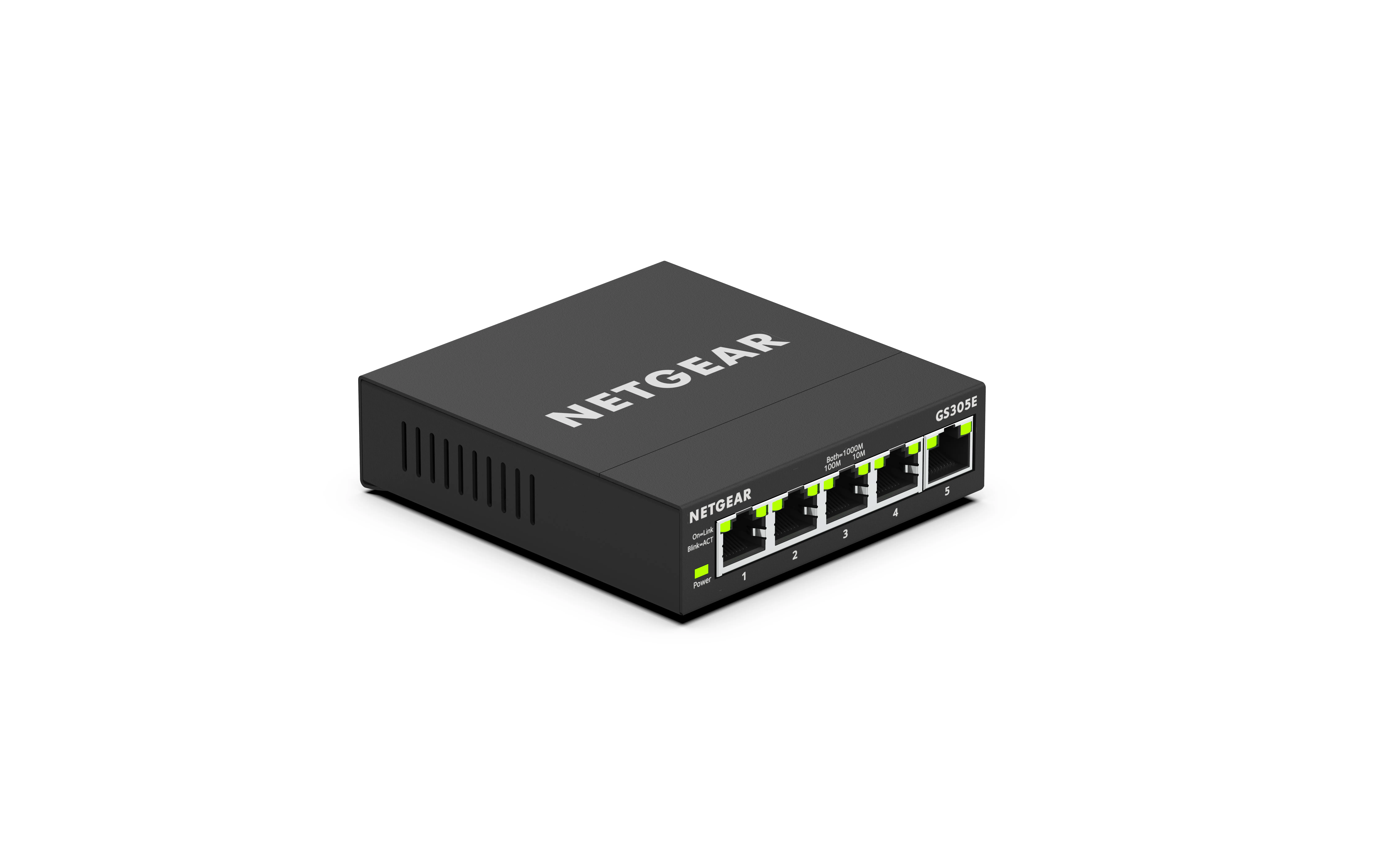

5-PORT GB SMART MGD PLUS
OEM Number
EAN
606449140569
This product is discontinued
Unfortunately, the product is out of stock.
NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.
General
-
Acoustic Noise0 dBA (Fanless)
-
Best forSMB Networking, Office Desktop, Silent
-
Compliance CertificationsElectromagnetic compliance Class B; CE mark; FCC Part 15 Class B
-
Forwarding ModeStore-and-forward
-
MAC address table2K; up to 8K entries
-
ModelGS305E
-
MTBF3,670,230 hours @ 25°C
-
Operating Temperature0° to 40°C (32° to 104°F)
-
Packet Buffer Size128 KB
-
Product LinePlus Switches; 300 Series
-
Product typeSmart Managed Plus Gigabit Ethernet Switch
-
Reliability RatingFanless design
-
Status LEDsPower; Link/Activity; Per port Speed, Link, Activity; Per device Power, system
Ports & interfaces
-
Basic switching RJ-45 Ethernet ports quantity5
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Vendor information
-
Brand NameNetgear
-
Warranty1
Performance
-
Buffer size128
-
Mean time between failures (MTBF)2531294
Security
-
DHCP featuresDHCP client
-
DoS attack preventionYes
-
IGMP snoopingYes
-
Loop protectionYes
-
Password protectionYes
Physical
-
Dimensions101 x 94 x 29 mm (4.0 x 3.7 x 1.1 in)
-
Form factorDesktop or wall-mountable; Metal housing
-
Switching Bandwidth10 Gbps
-
Weight0.24 kg (0.53 lb)
Network
-
Ethernet Ports5 x Gigabit RJ45 ports
-
Ethernet SpeedGigabit; 10/100/1000 Mbps
-
Flow control supportYes
-
Link aggregationNo
-
Networking standardsIEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
-
Number of VLANs64
-
Port mirroringYes
-
Rate limitingYes
-
Supported protocolsIEEE 802.3 Ethernet; IEEE 802.3ab 1000BASE-T; IEEE 802.3u 100BASE-T; IEEE 802.3x Full-duplex Flow Control; IEEE 802.1p; IEEE 802.1Q VLAN Tagging
-
Virtual LAN featuresPort-based VLAN/Tagged VLAN
-
VLAN supportYes
Data transmission
-
Jumbo frames9000
-
Jumbo frames supportYes
-
MAC address table8000
-
Store-and-forwardYes
-
Switching capacity10
Memory
-
Jumbo Frame Support9,216 bytes; up to 9K packet size
Design
-
LED indicatorsActivity/Link/Power/Speed/System
-
Product colourBlack
-
Rack mountingNo
Storage
-
Management InterfaceWeb browser-based GUI; System Password
Logistics data
-
Master (outer) case gross weight10170
-
Master (outer) case height28
-
Master (outer) case length49.7
-
Master (outer) case width34.4
-
Products per master (outer) case15
Power
-
Max Wattage2.34W
-
Power SuppliesExternal DC Power Adapter 5V / 0.7A
Operational conditions
-
Non-operating altitude0 - 3000
-
Operating altitude0 - 3000
-
Operating relative humidity (H-H)0 - 90
-
Operating temperature (T-T)0 - 50
-
Storage relative humidity (H-H)0 - 95
-
Storage temperature (T-T)-20 - 70
Power over Ethernet (PoE)
-
Power over Ethernet (PoE)No
Management features
-
Quality of Service (QoS) supportYes
-
Switch typeManaged
-
Virtual Cable Test (VCT)Yes
-
Web-based managementYes
