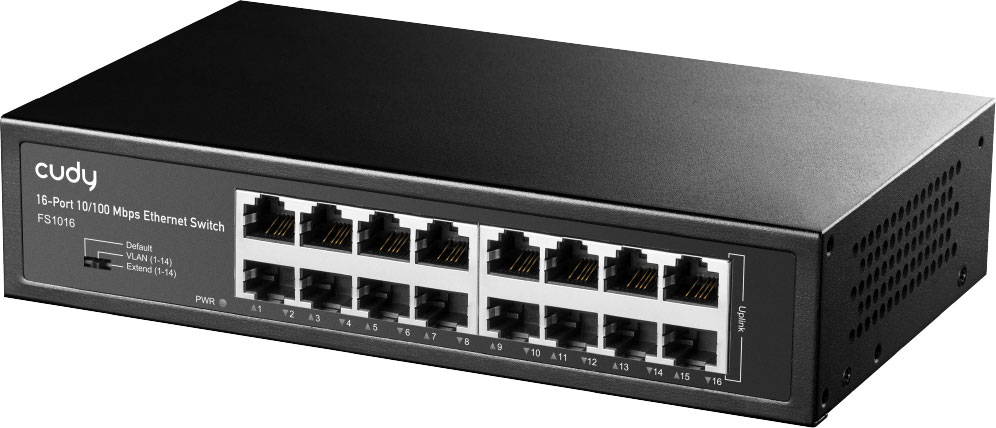

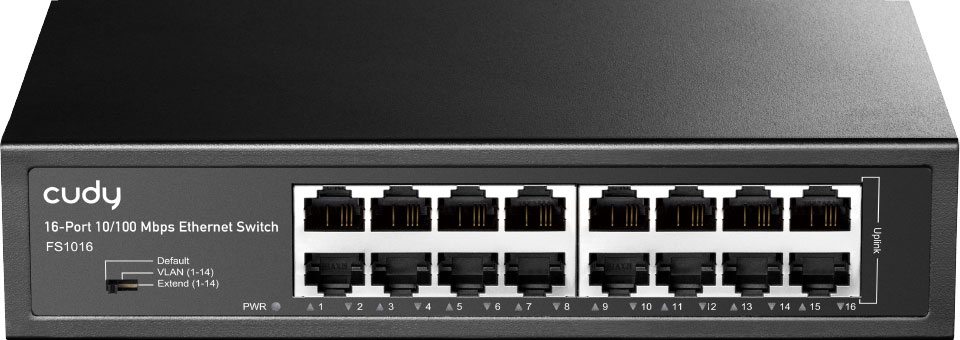

Cudy FS1016 is a 16-port Fast Ethernet switch for expanding a wired network. Its 10/100 Mbps RJ45 ports connect network devices in offices and other wired installations.

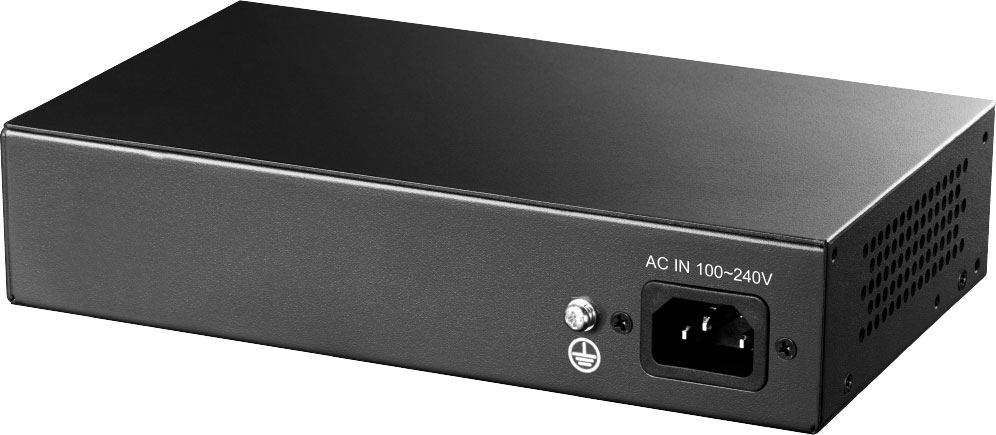

The metal-cased switch measures 200 × 118 × 44 mm. Place it on a desktop or install it in a rack with brackets, depending on the setup.
VLAN mode isolates downlink ports 1–14 so they communicate only with uplink ports. In Extend mode, ports 1–14 support transmission up to 250 metres with Cat. 5e or higher cable, at a speed limited to 10 Mbps. Listed uses also include mall Wi-Fi, surveillance and ISP FTTB.

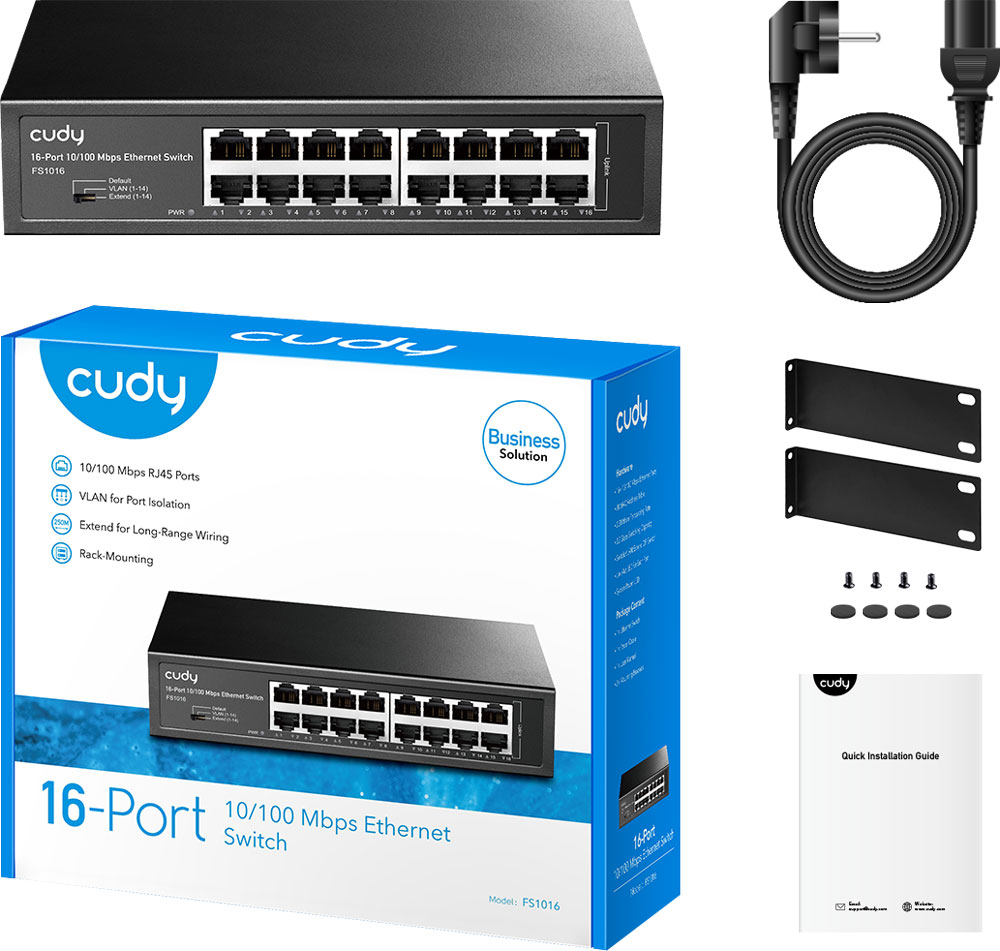

Package contents: mounting kit.
