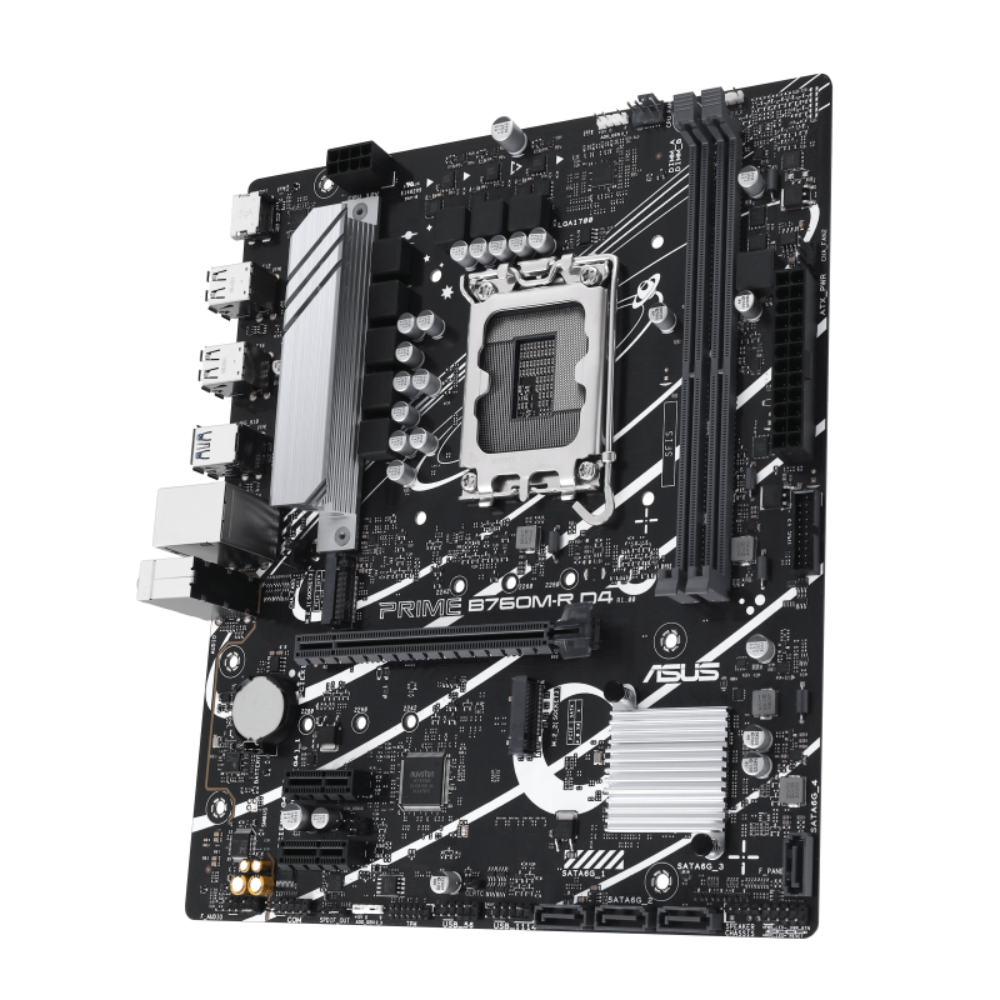

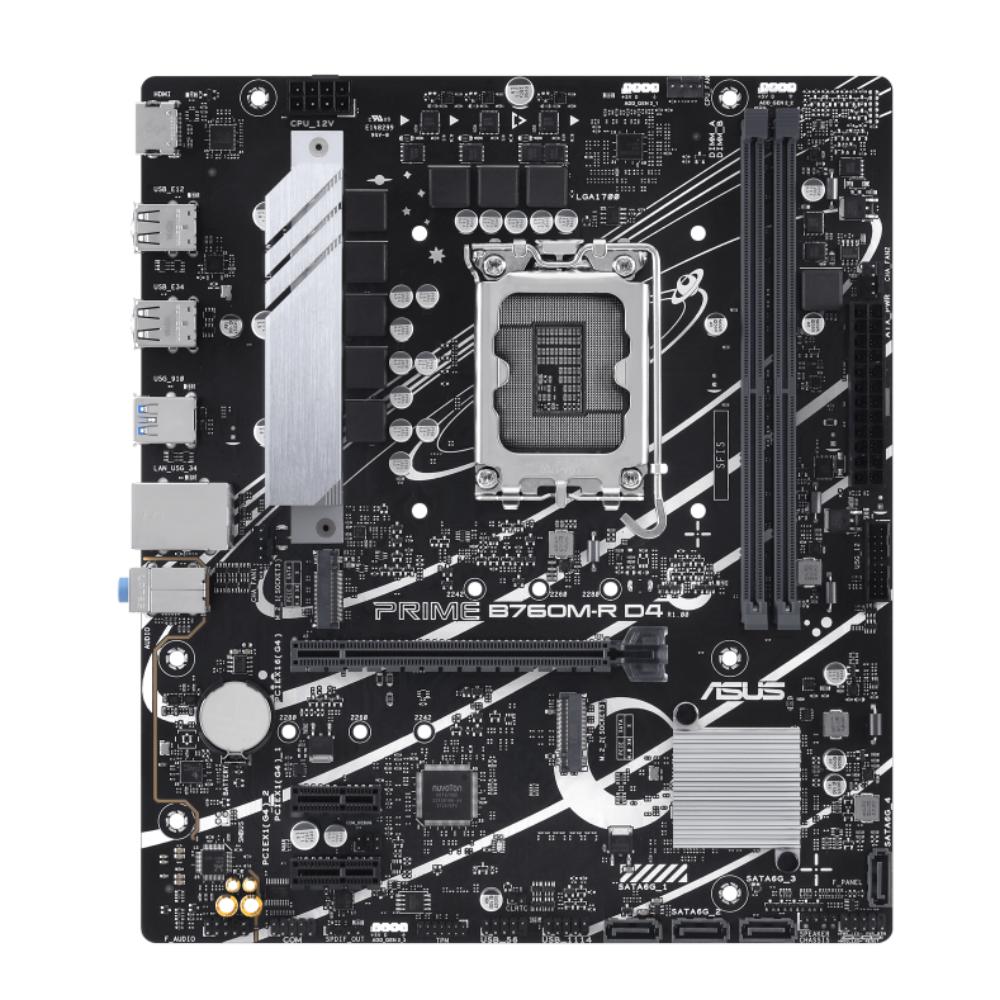

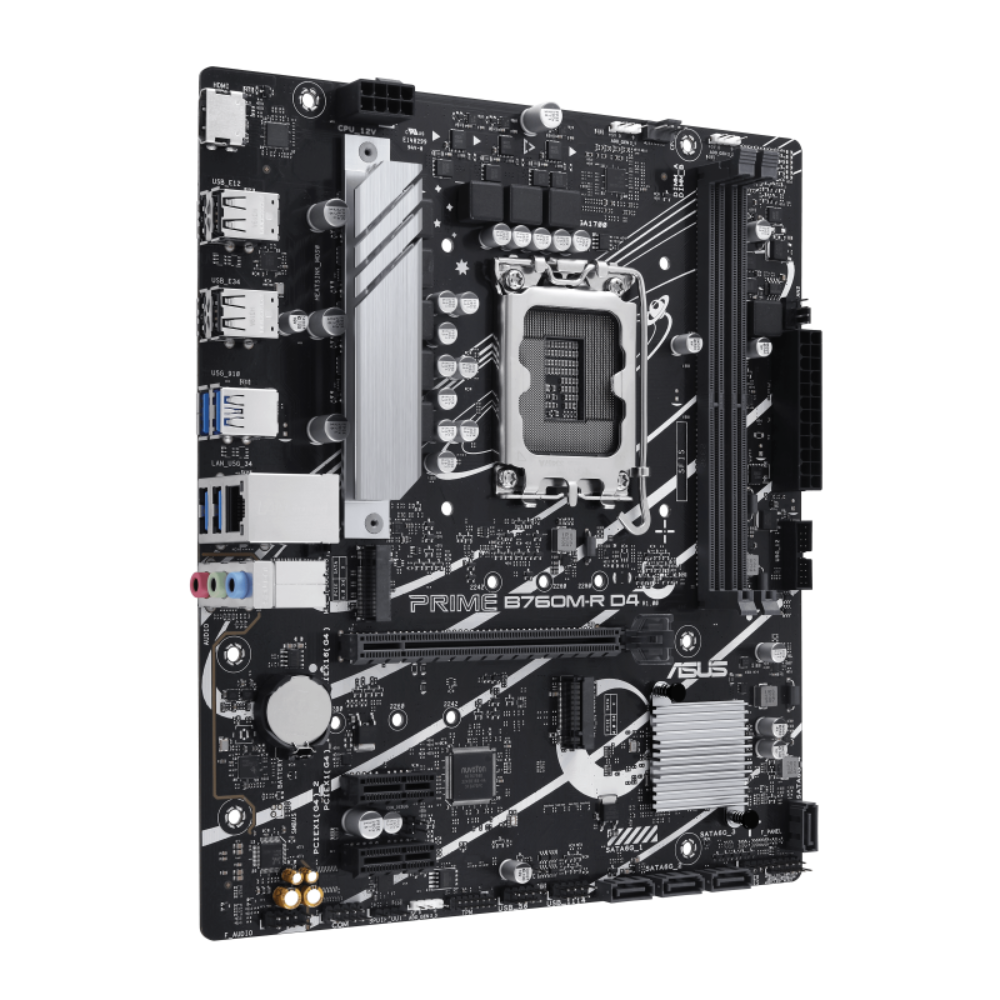

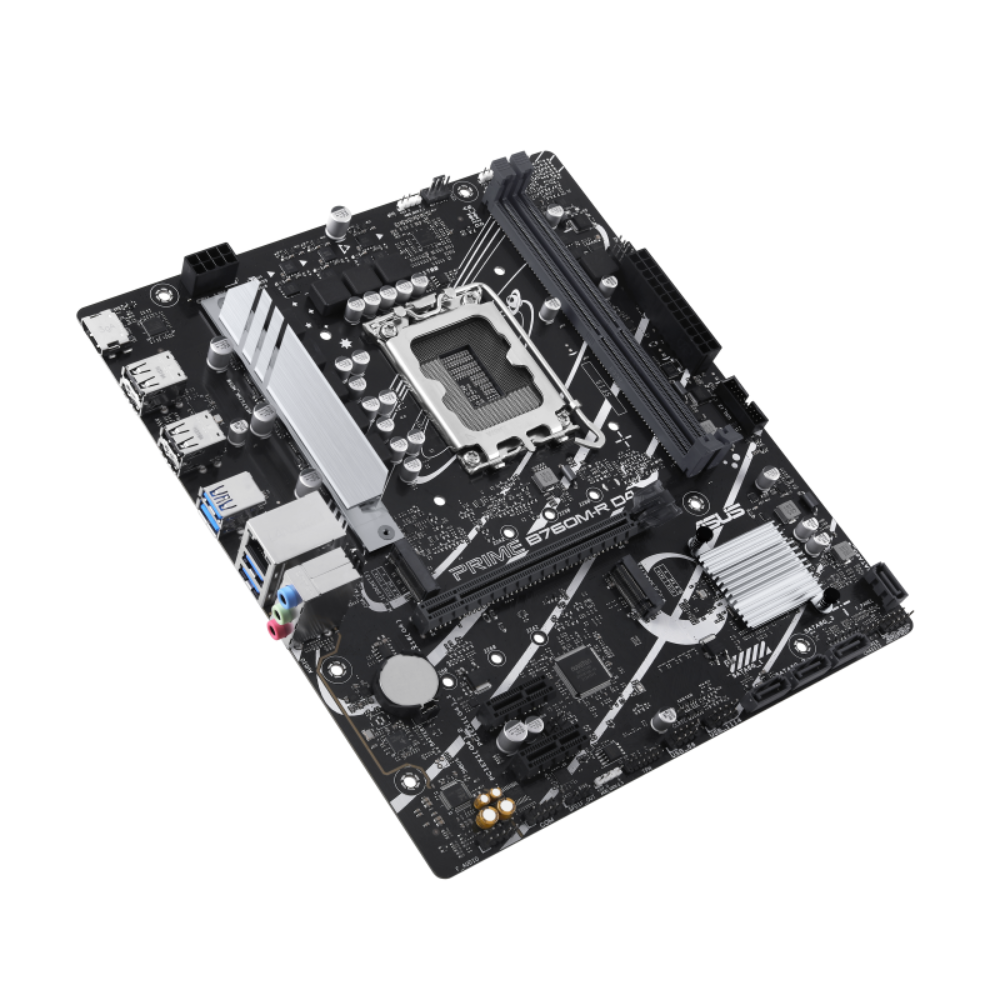

ASUS PRIME B760M-R D4 is a micro-ATX motherboard for desktop systems using Intel’s B760 chipset and LGA1700 socket. It supports Intel Core processors of the 12th, 13th and 14th generations, along with Pentium Gold and Celeron processors.
Two DDR4 slots accommodate up to 64 GB of non-ECC unbuffered memory in a dual-channel configuration. One PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots provide expansion options. For storage, there are two M.2 Key M slots supporting PCIe 4.0 x4, plus four SATA 6 Gb/s ports for connecting drives.

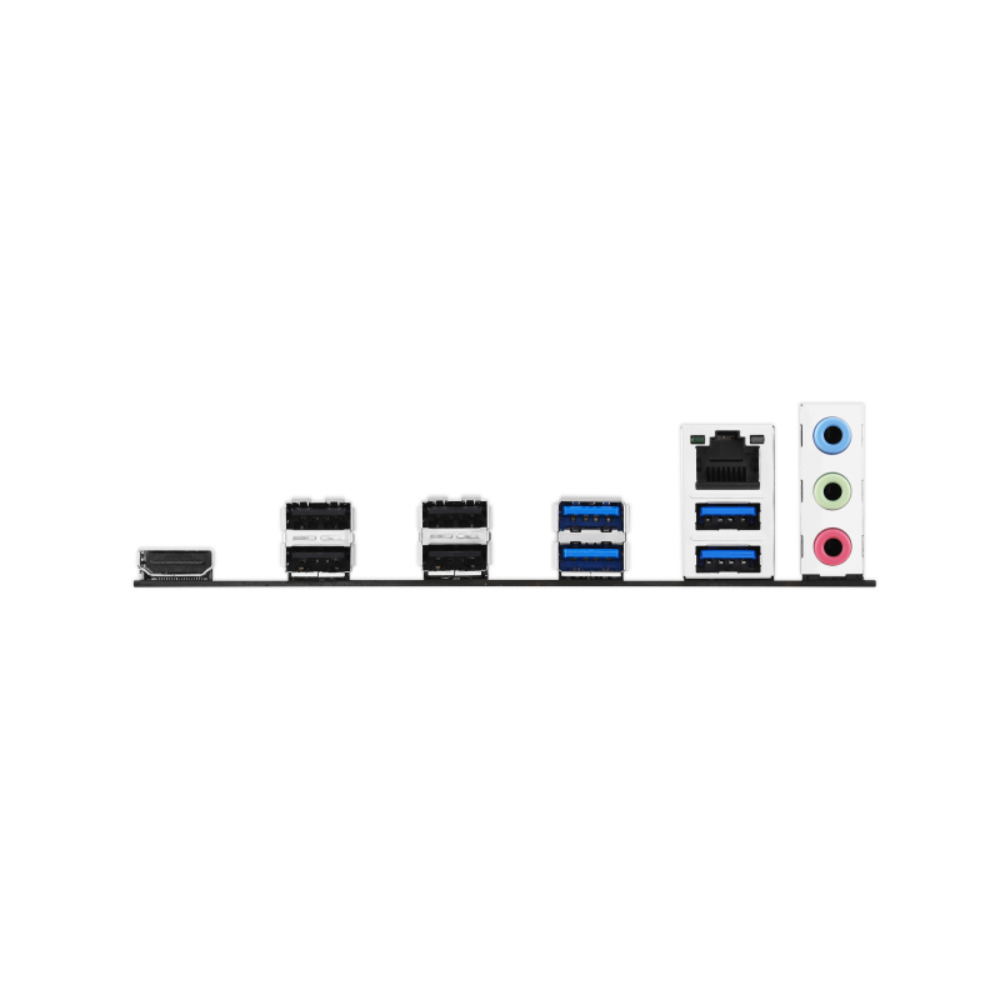

Rear connections include HDMI, Realtek 2.5Gb Ethernet, four USB 5Gbps Type-A ports, four USB 2.0 Type-A ports and three audio jacks. The board measures 24.4 × 21.1 cm, which can help check fit in a compatible case.

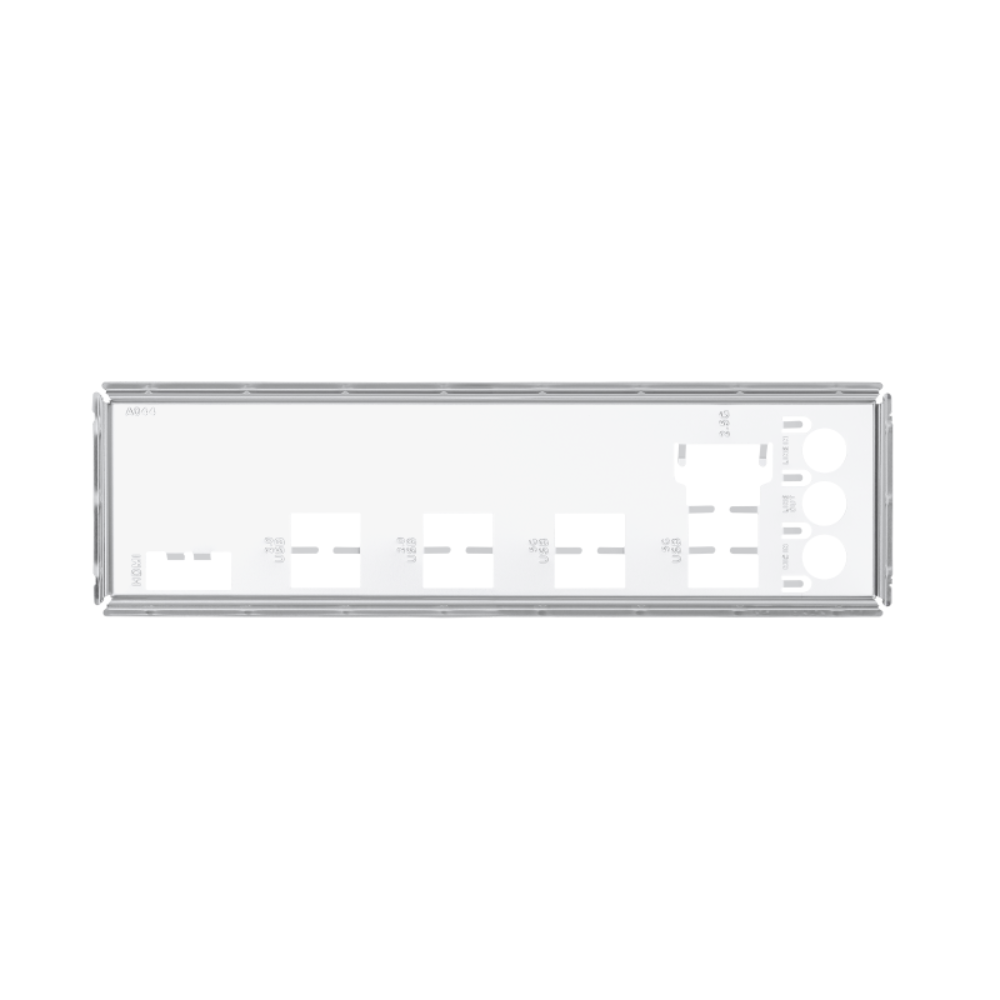

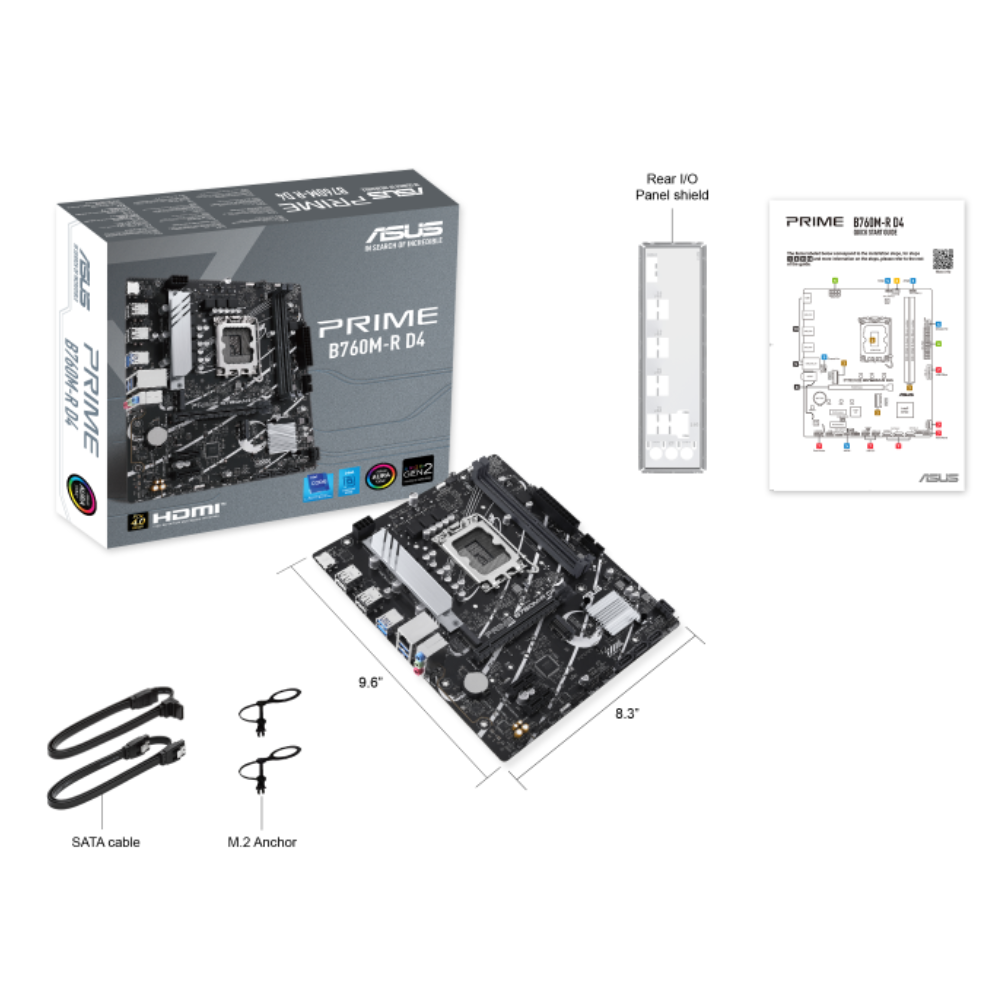

Package contents: two SATA cables, an I/O shield, two M.2 anchors and a quick start guide.
